DR-6 Repairing "Vehicle Speed Signal" Fault
DR-6 Repairing "Vehicle Speed Signal" Fault

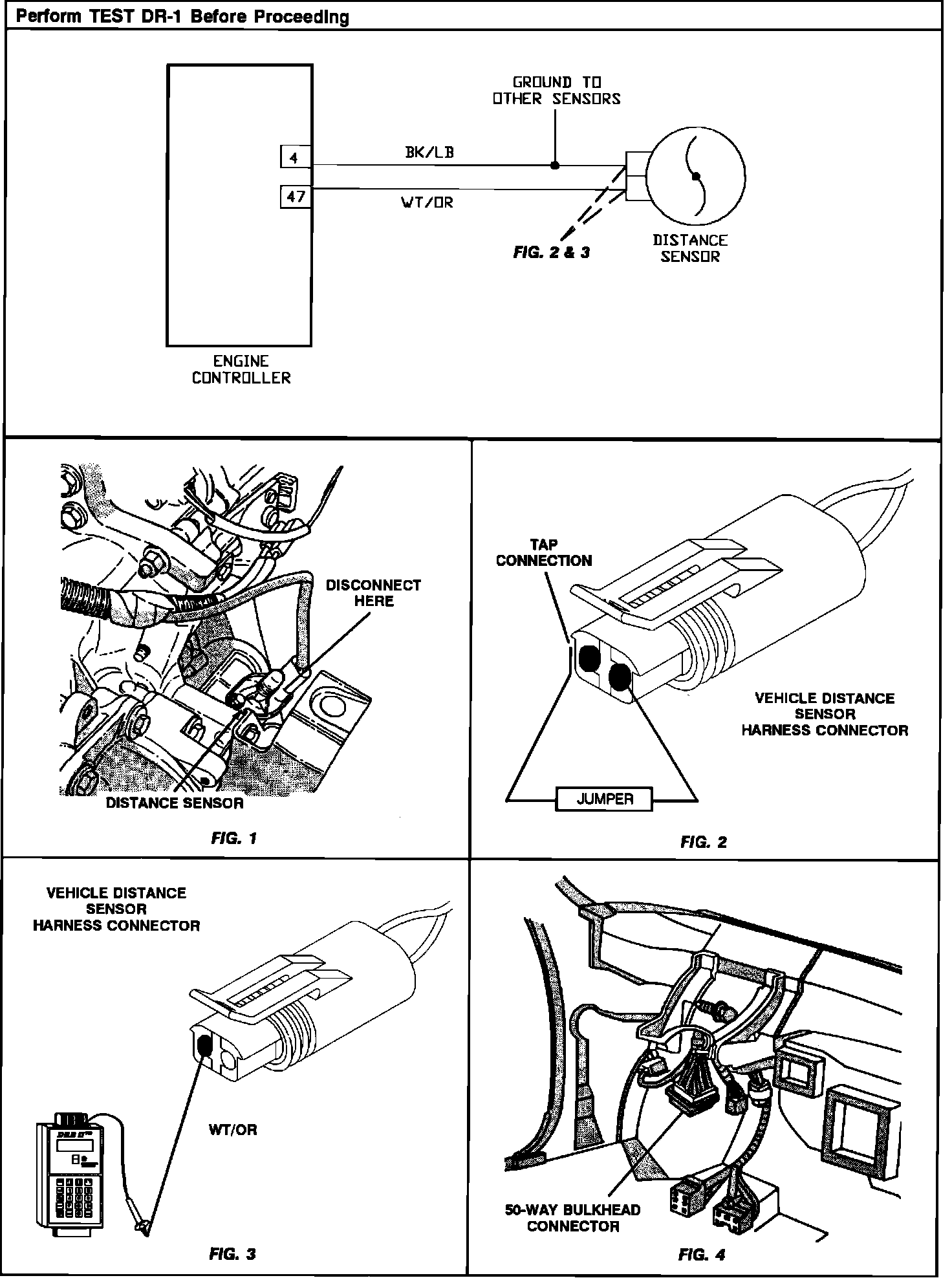

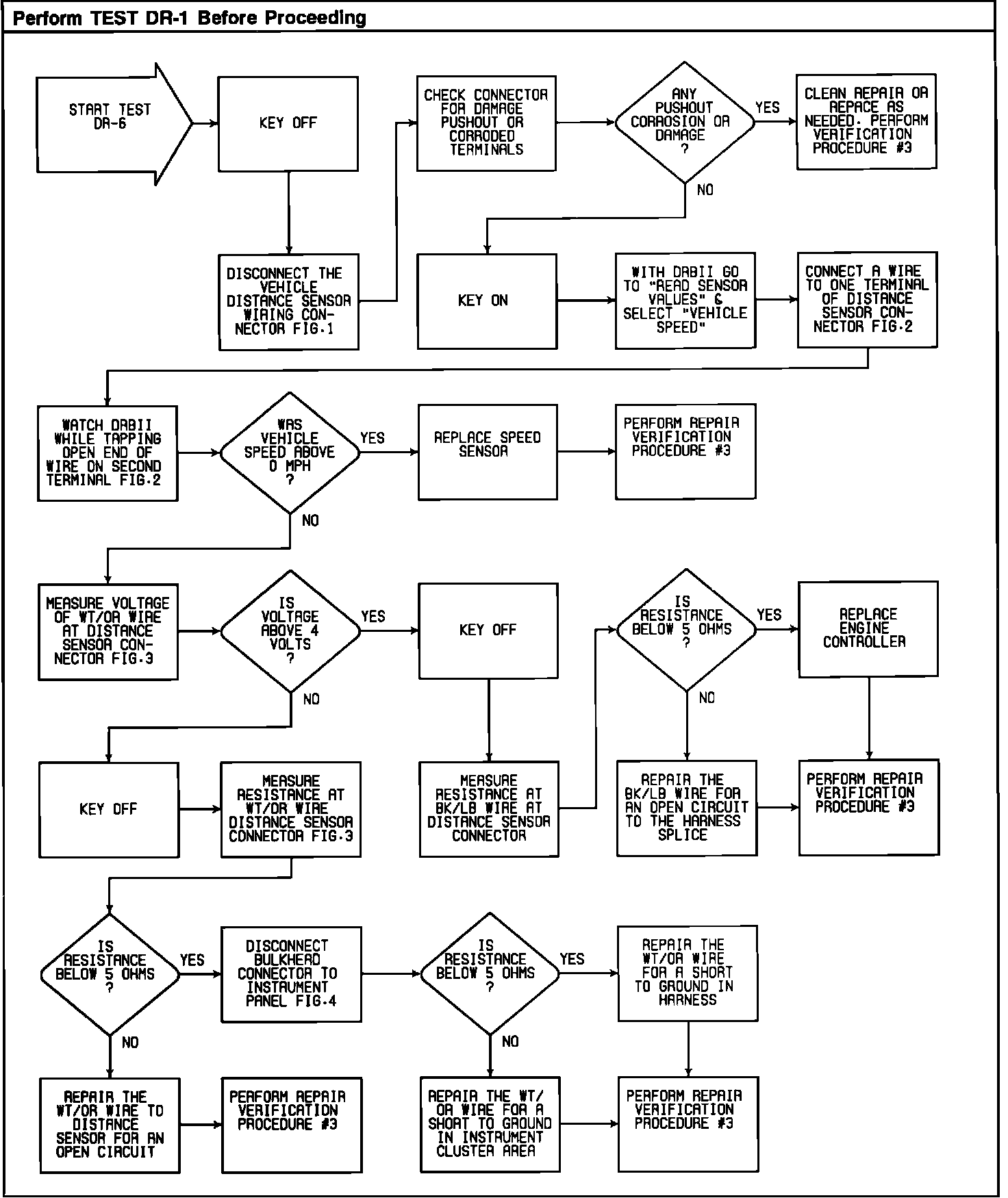

Test DR-6 - Repairing Fault "Vehicle Speed Signal":
Test DR-6 - Repairing Fault "Vehicle Speed Signal":
