DR-46 Intermittent Test For Ignition Coil Faults
DR-46 Intermittent Test For Ignition Coil Faults

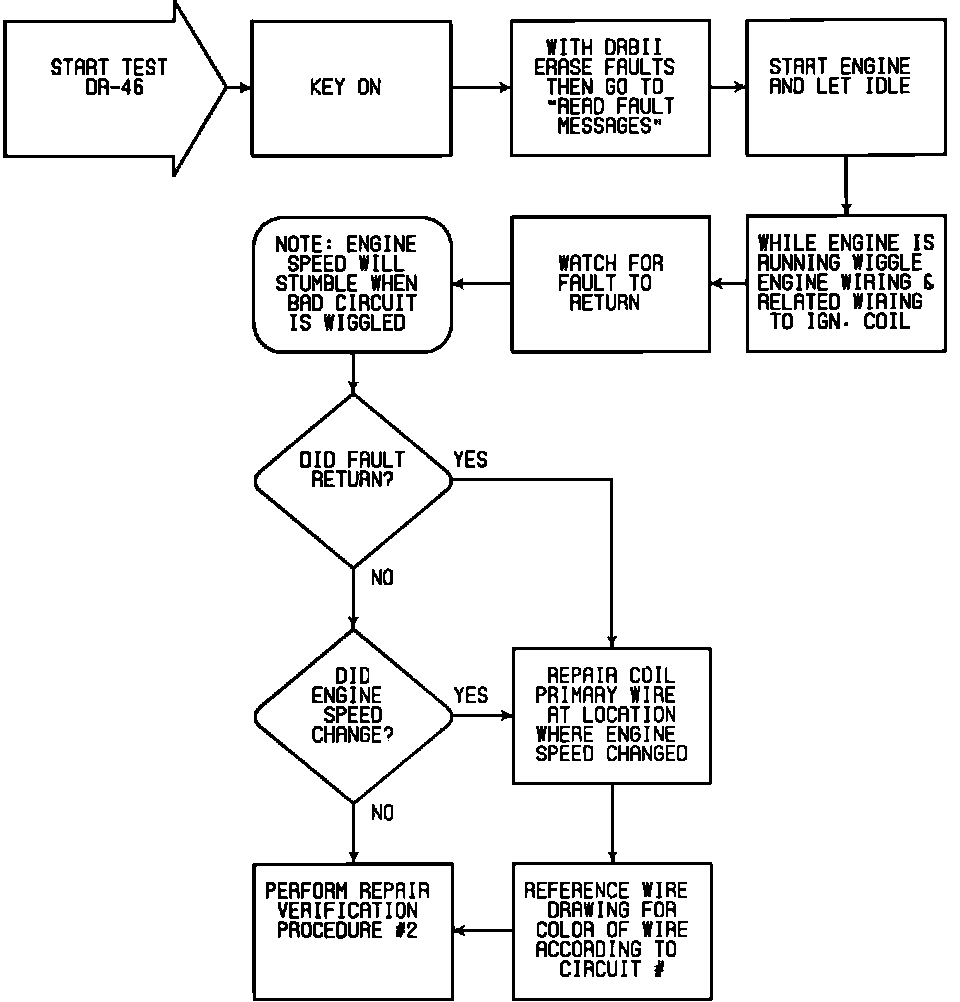

Test DR-46 - Intermittent Test For Ignition Coil Faults:
