Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-45 Intermittent Test For Injector Faults

DR-45 Intermittent Test For Injector Faults

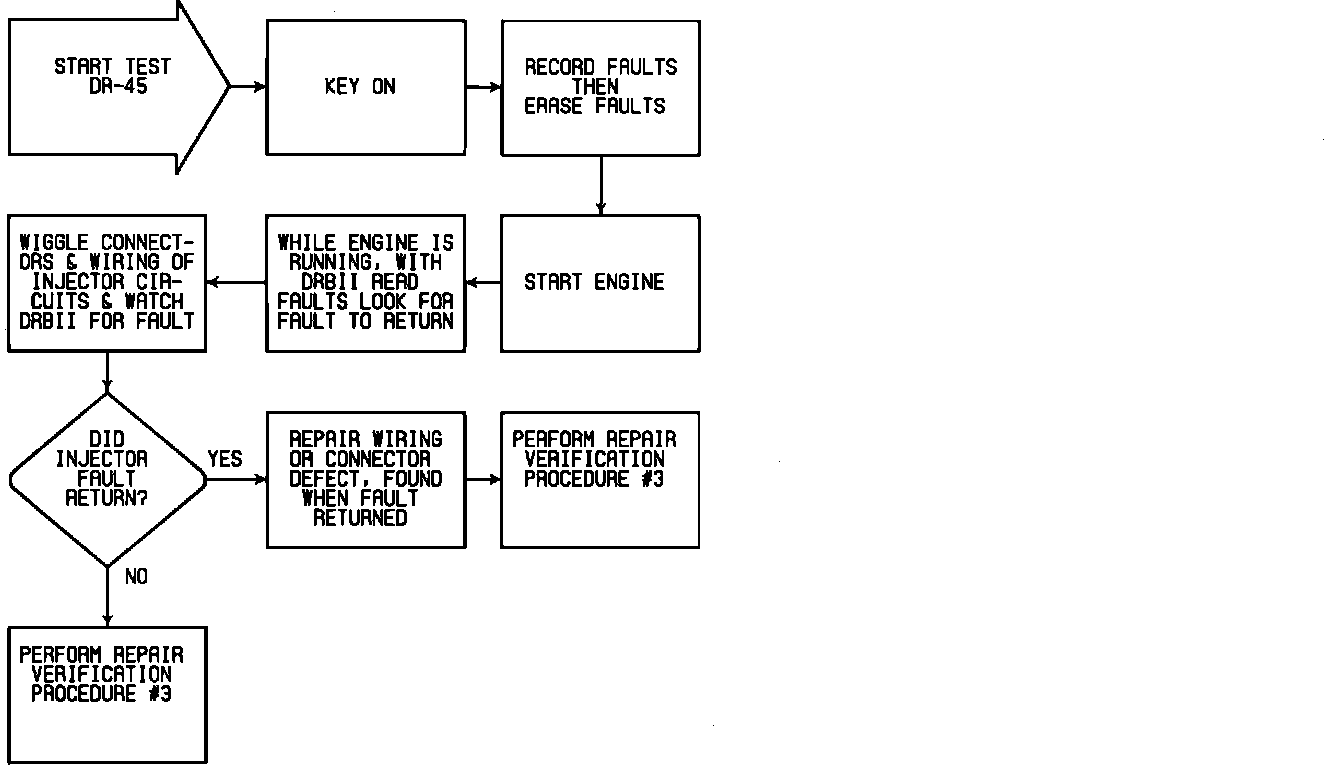

Test DR-45 - Intermittent Test For Injector Faults:
