DR-42 Intermittent Test For MAP Pneumatic Change Fault
DR-42 Intermittent Test For MAP Pneumatic Change Fault

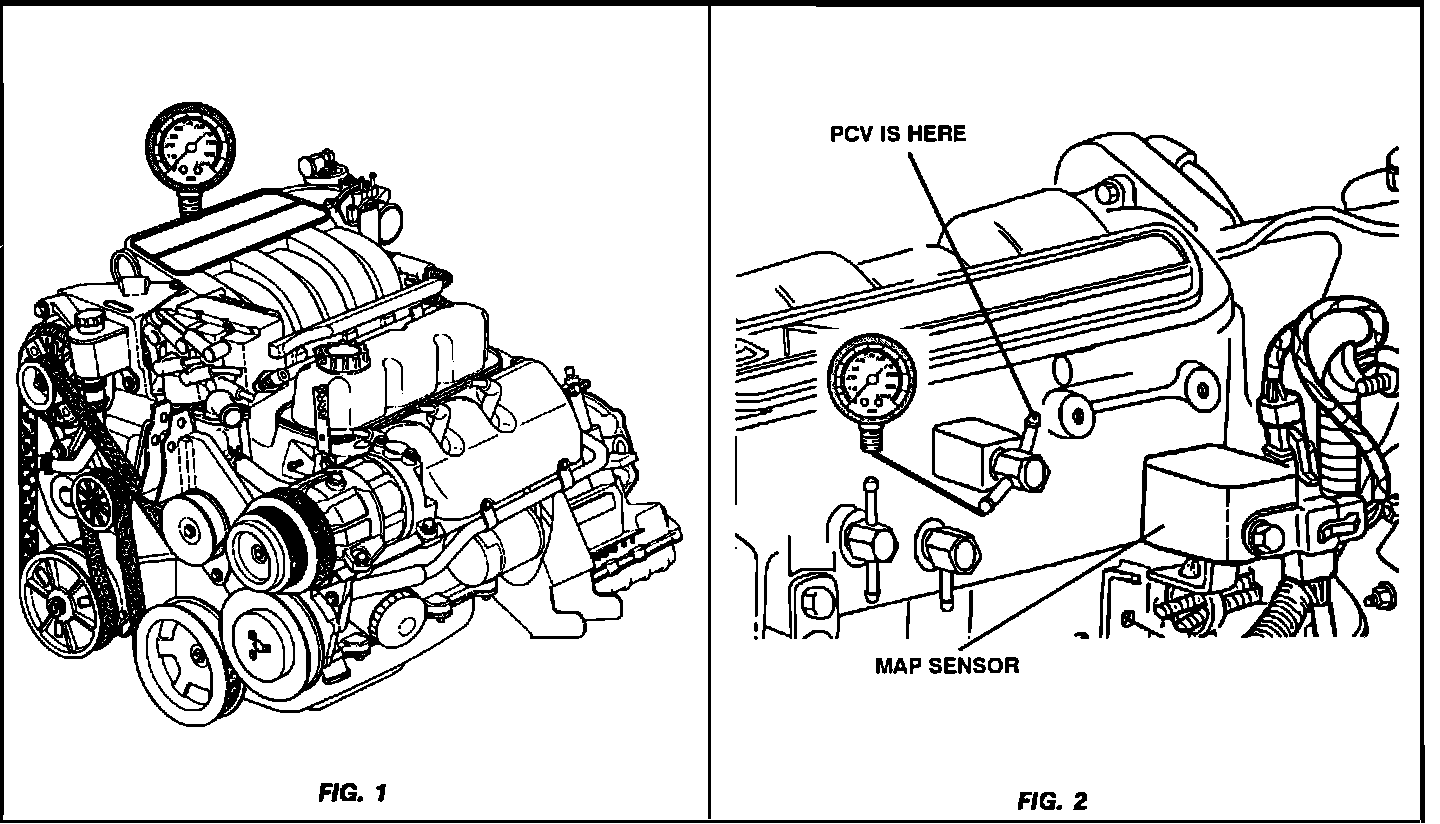

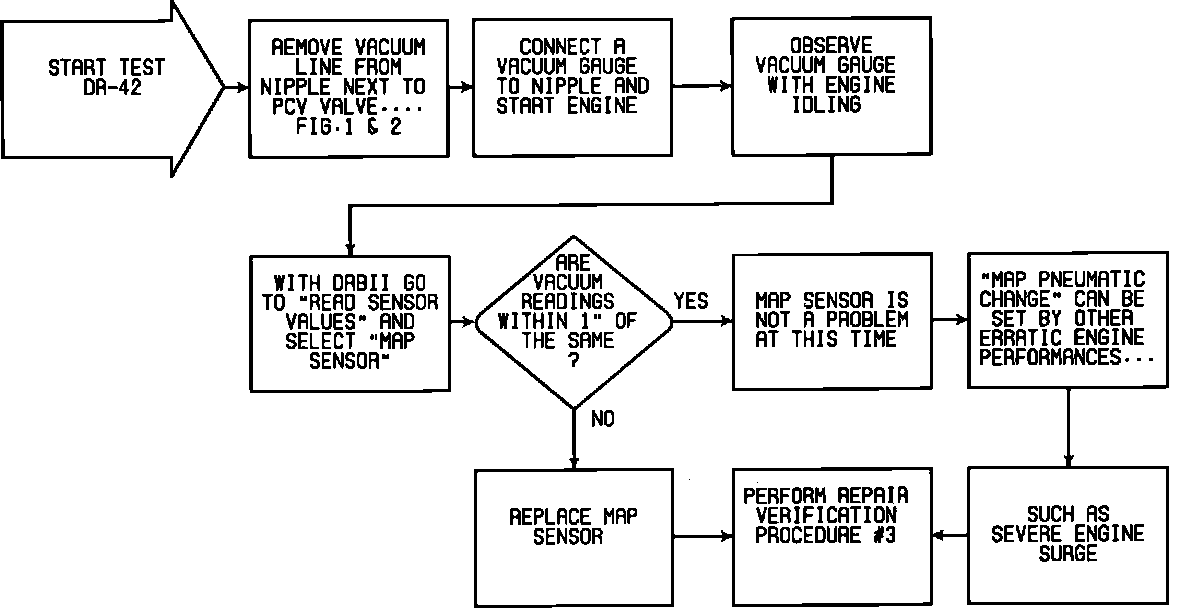

Test DR-42 - Intermittent Test For MAP Pneumatic Change Fault:
Test DR-42 - Intermittent Test For MAP Pneumatic Change Fault:
