Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-42 Checking Intermittent Faults For Injectors & AIS Motor

DR-42 Checking Intermittent Faults For Injectors & AIS Motor

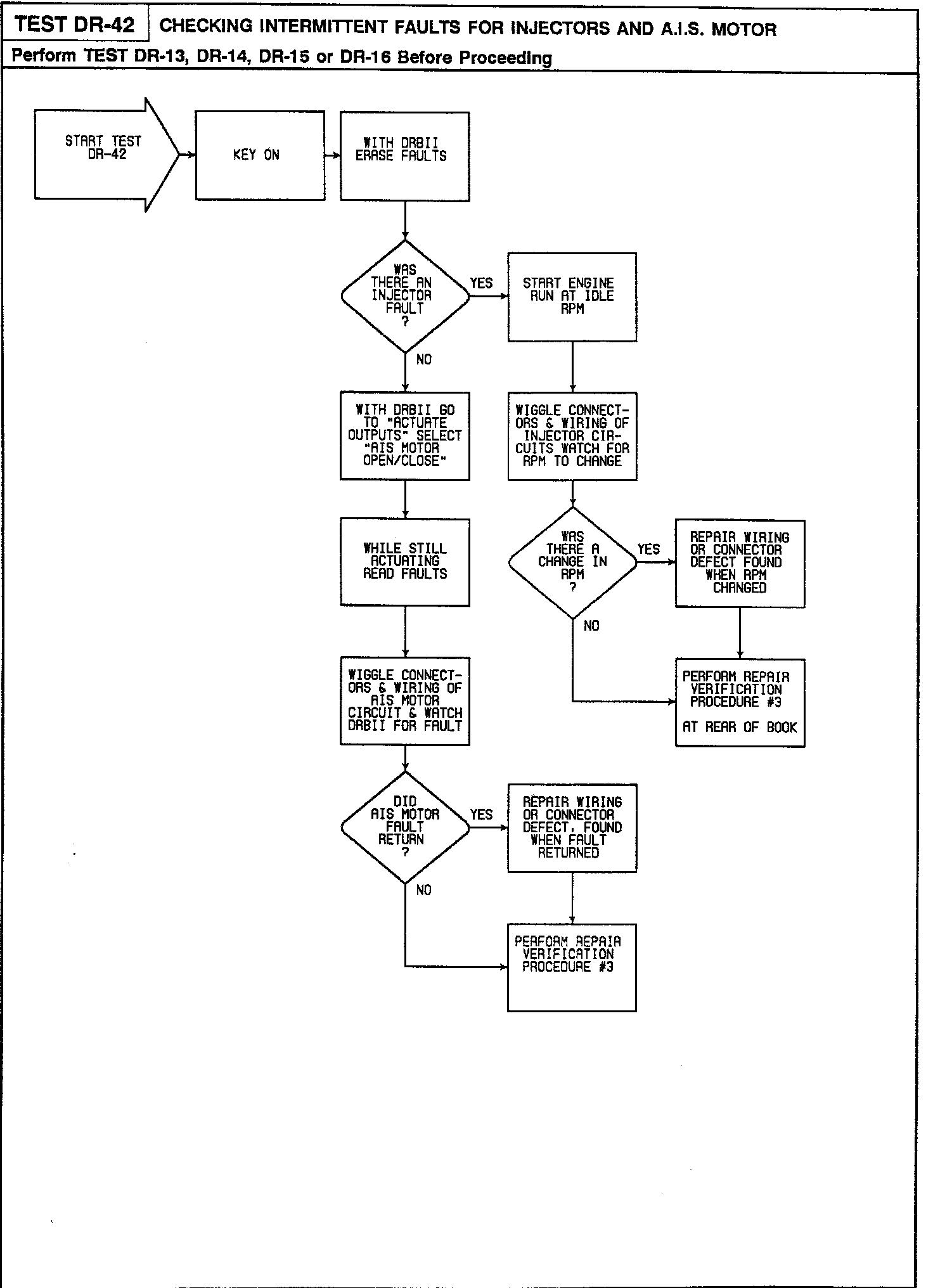

Test DR-42 - Checking Intermittent Faults For Injectors And AIS Motor:



Test DR-42 - Checking Intermittent Faults For Injectors And AIS Motor:
