A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Driveability (DR) Tests
>>
DR-41 Intermittent Test For Relays & Solenoids
DR-41 Intermittent Test For Relays & Solenoids
*** Updated by TSB# 181690, March 1990

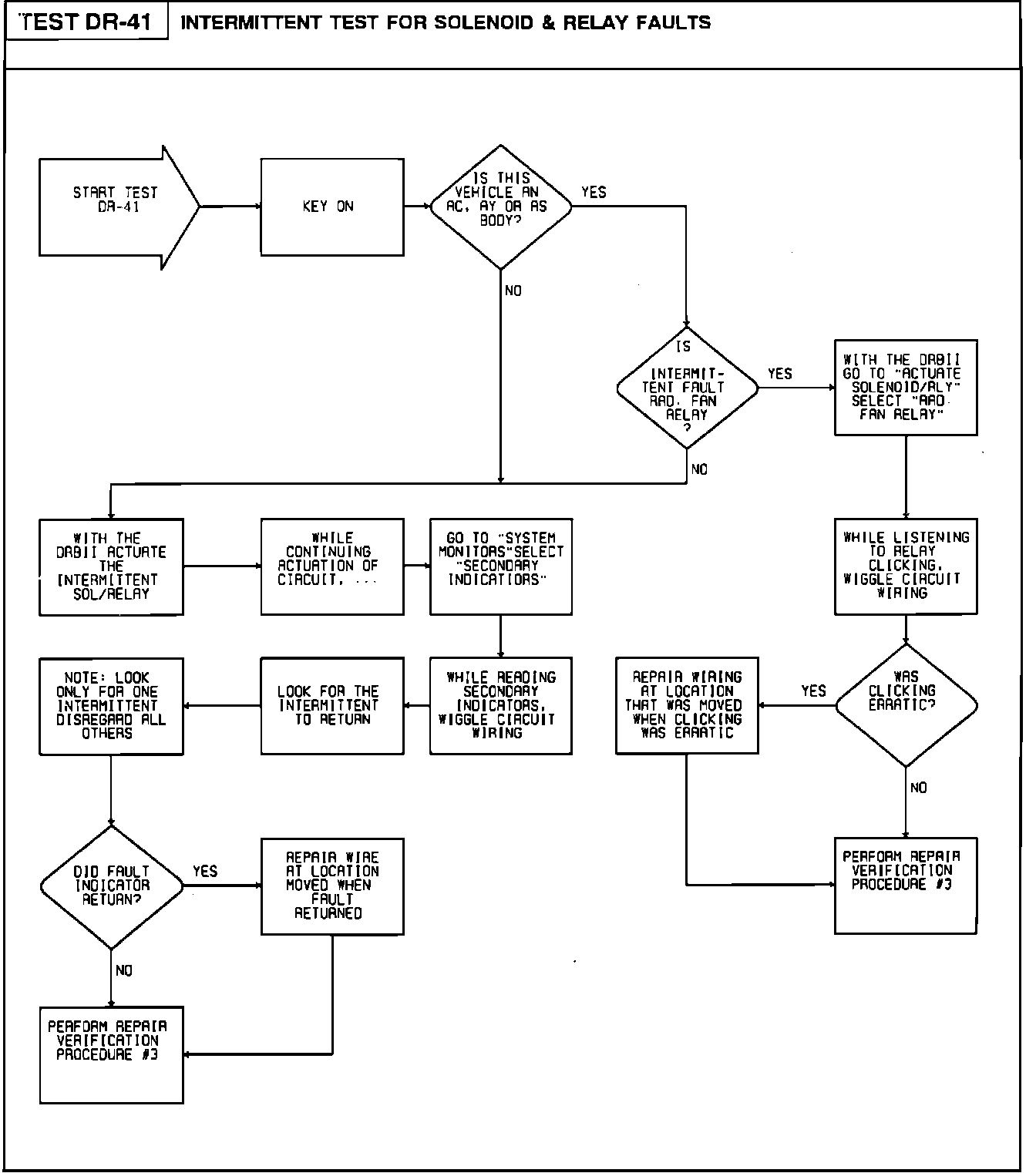

test DR-41 - Intermittent Test For Solenoid & Relay Faults:
