Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-41 Checking Intermittent Faults For MAP Signal

DR-41 Checking Intermittent Faults For MAP Signal

***Updated by TSB# 181490, March 1990

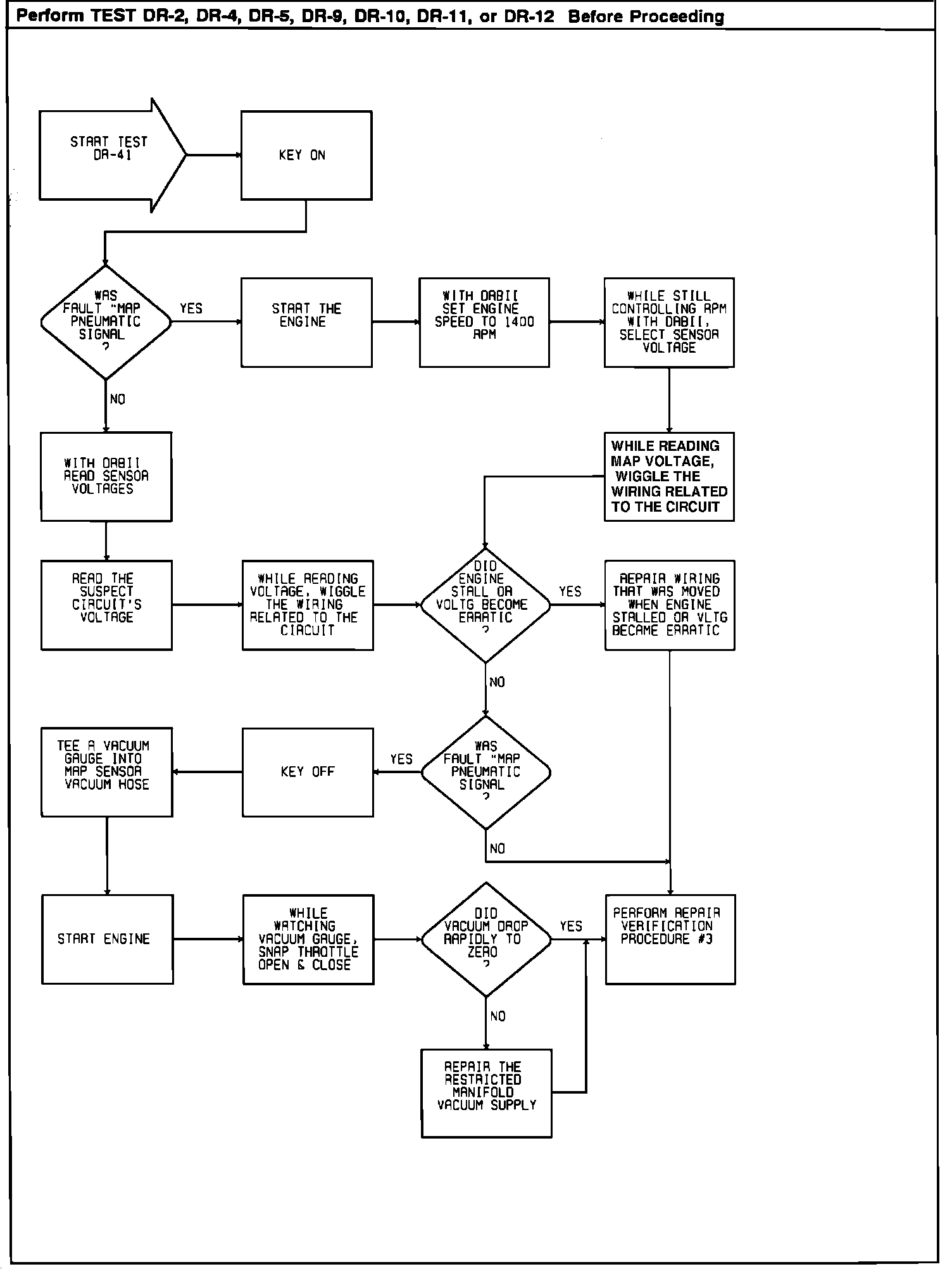

Test DR-41 - Checking Intermittent Faults For MAP Signal:




Test DR-41 - Checking Intermittent Faults For MAP Signal:
