DR-40 Checking Intermittent Fault "MAP Pneumatic Change"
DR-40 Checking Intermittent Fault "MAP Pneumatic Change"

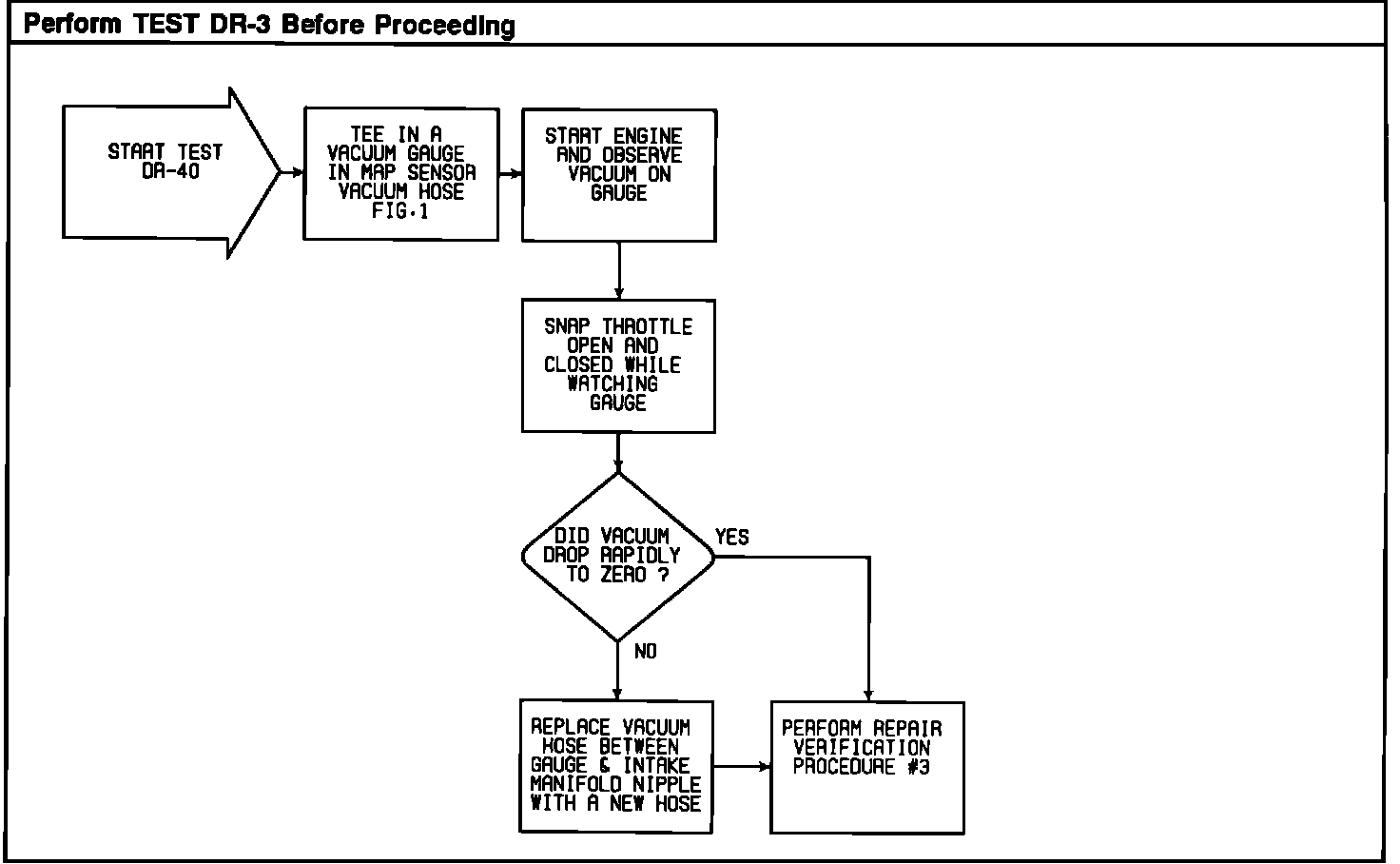

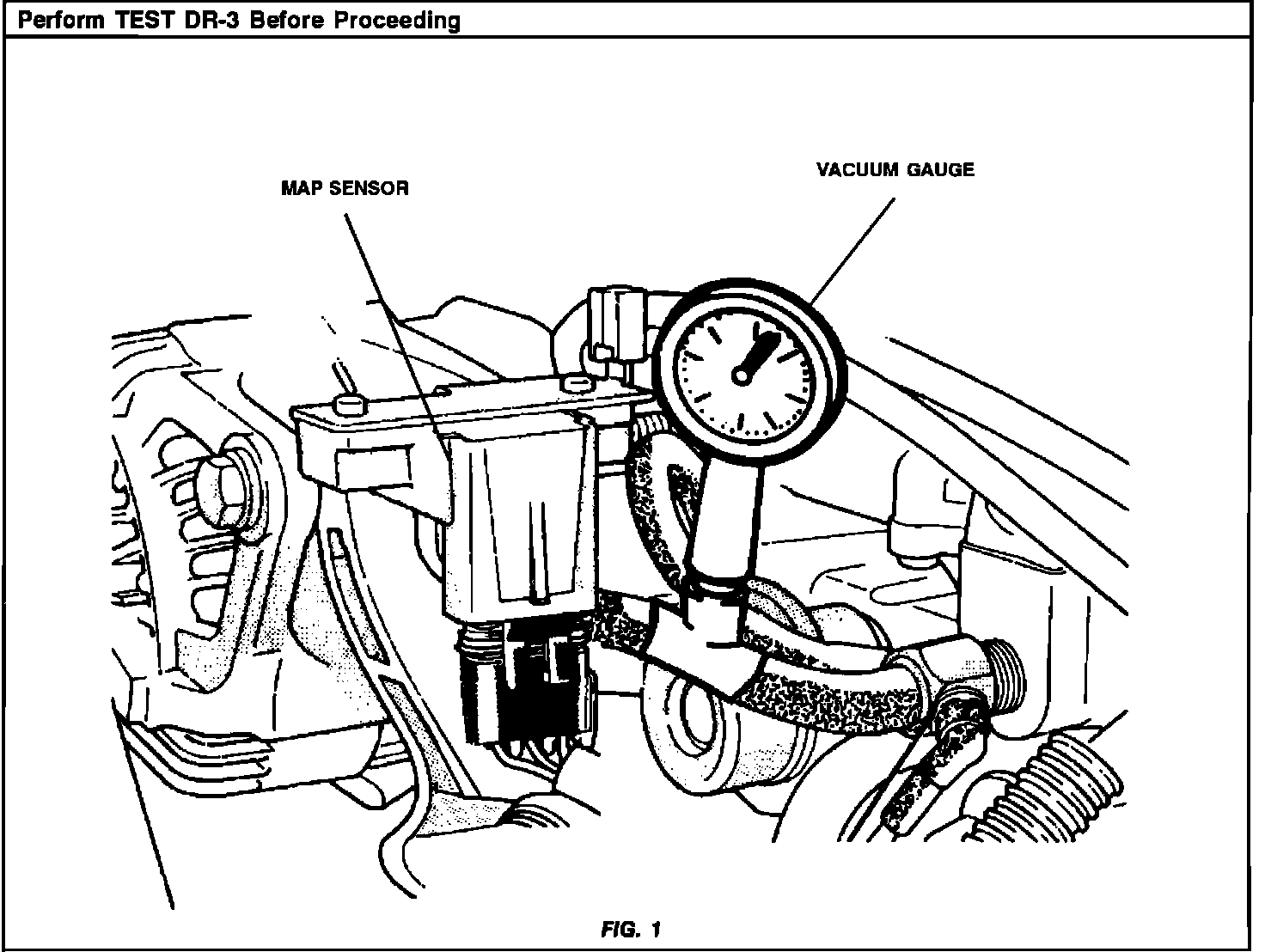

Test DR-40 - Checking Intermittent Fault "MAP Pneumatic Change":
Test DR-40 - Checking Intermittent Fault "MAP Pneumatic Change":
