Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-39 Checking Minimum Air Flow

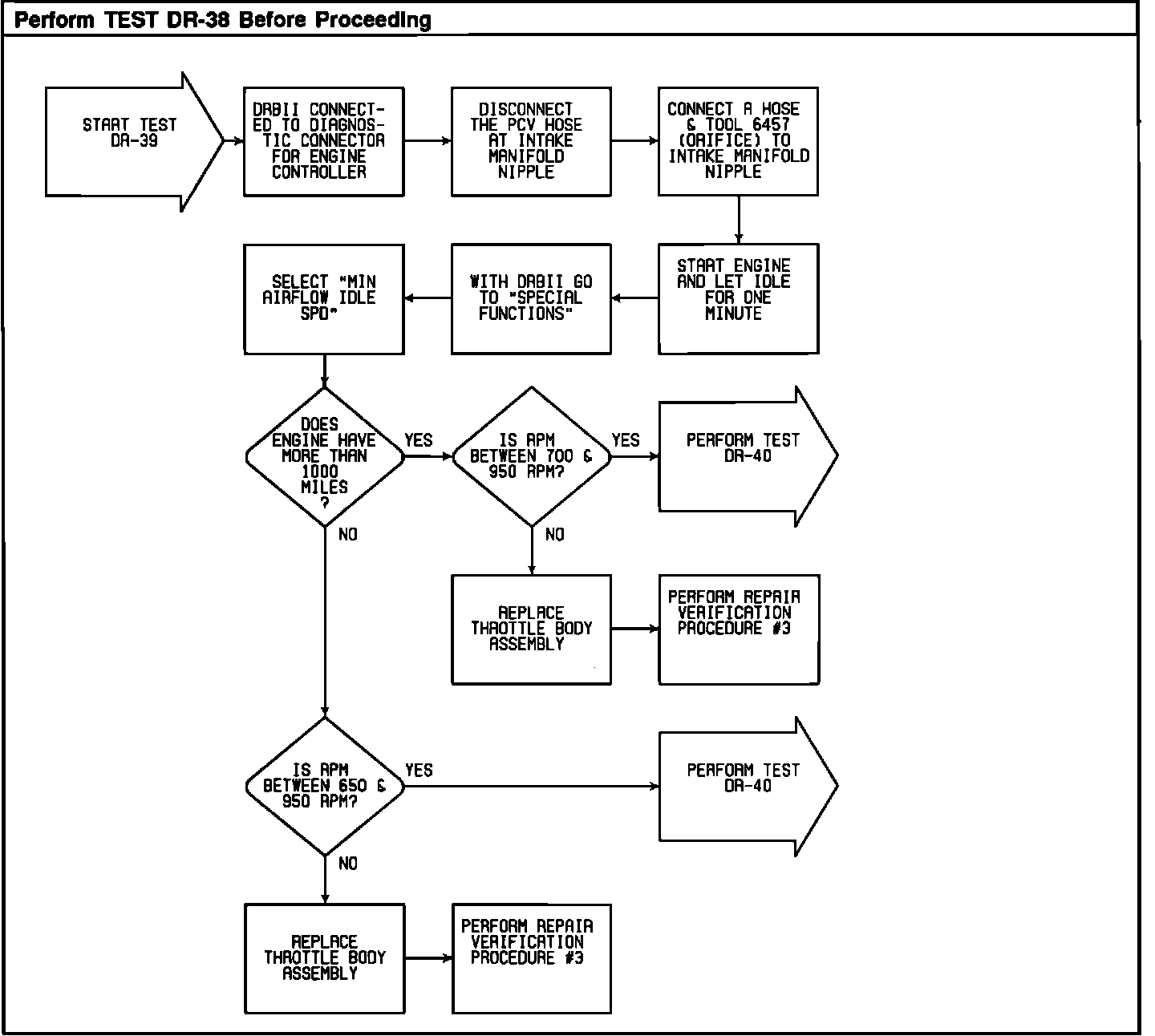

DR-39 Checking Minimum Air Flow

Test DR-39 - Checking Minimum Air Flow:
