Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-39 Checking Intermittent Faults For Solenoids & Relays

DR-39 Checking Intermittent Faults For Solenoids & Relays

*** Updated by TSB# 181490, March, 1990

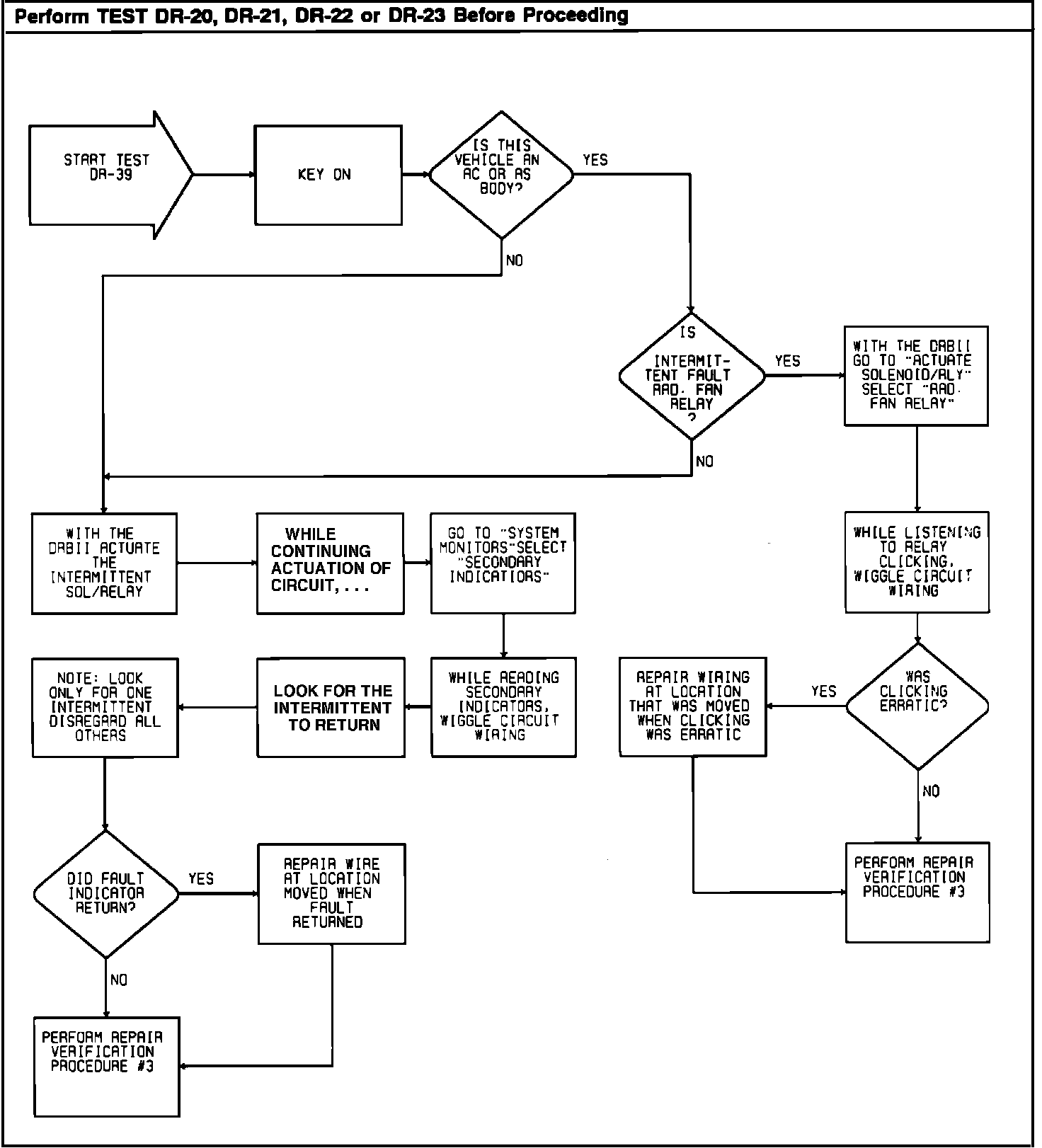

Test DR-39 - Checking Intermittent Faults For Solenoids And Relays:




Test DR-39 - Checking Intermittent Faults For Solenoids And Relays:
