DR-38 Checking Heated Oxygen Sensor
DR-38 Checking Heated Oxygen Sensor

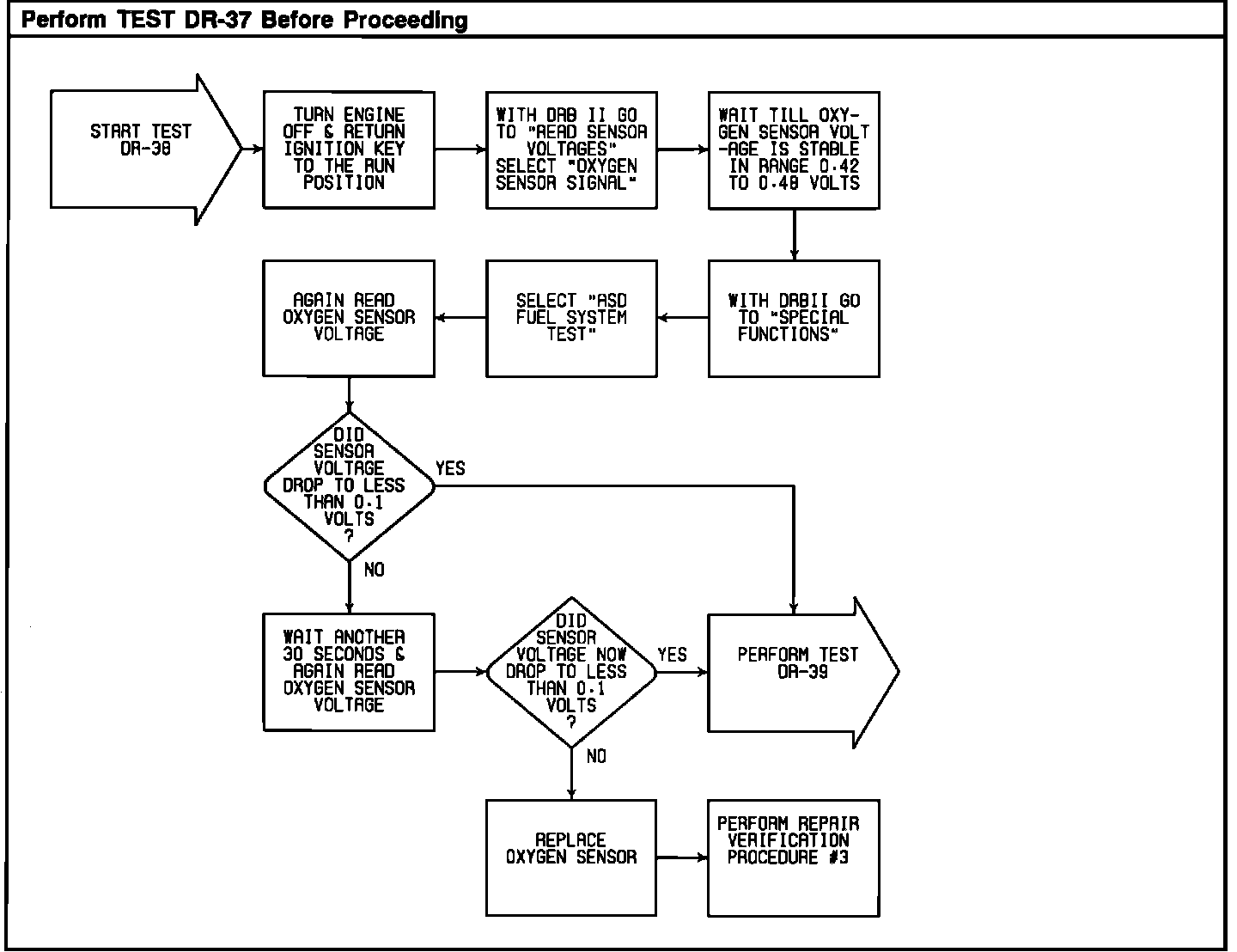

test DR-38 - Checking Heated Oxygen Sensor:
