DR-37 Intermittent Test For Idle Motor Circuits

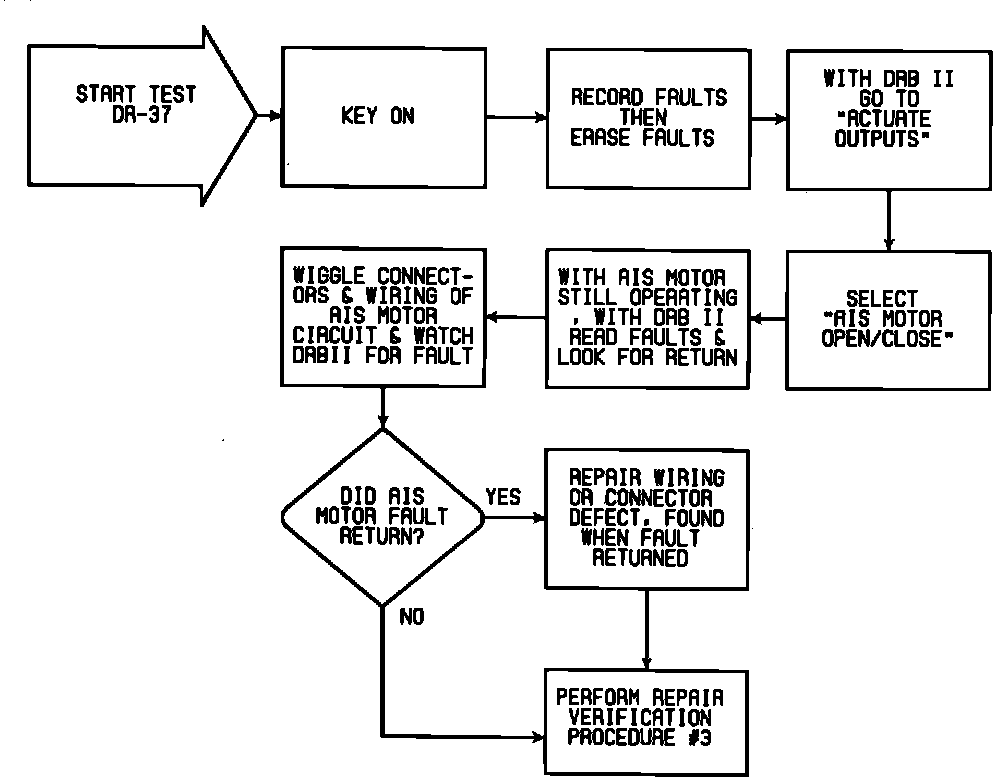

Test DR-37 - Intermittent Test For Idle Motor Circuits:
