DR-37 Checking Minimum Air Flow

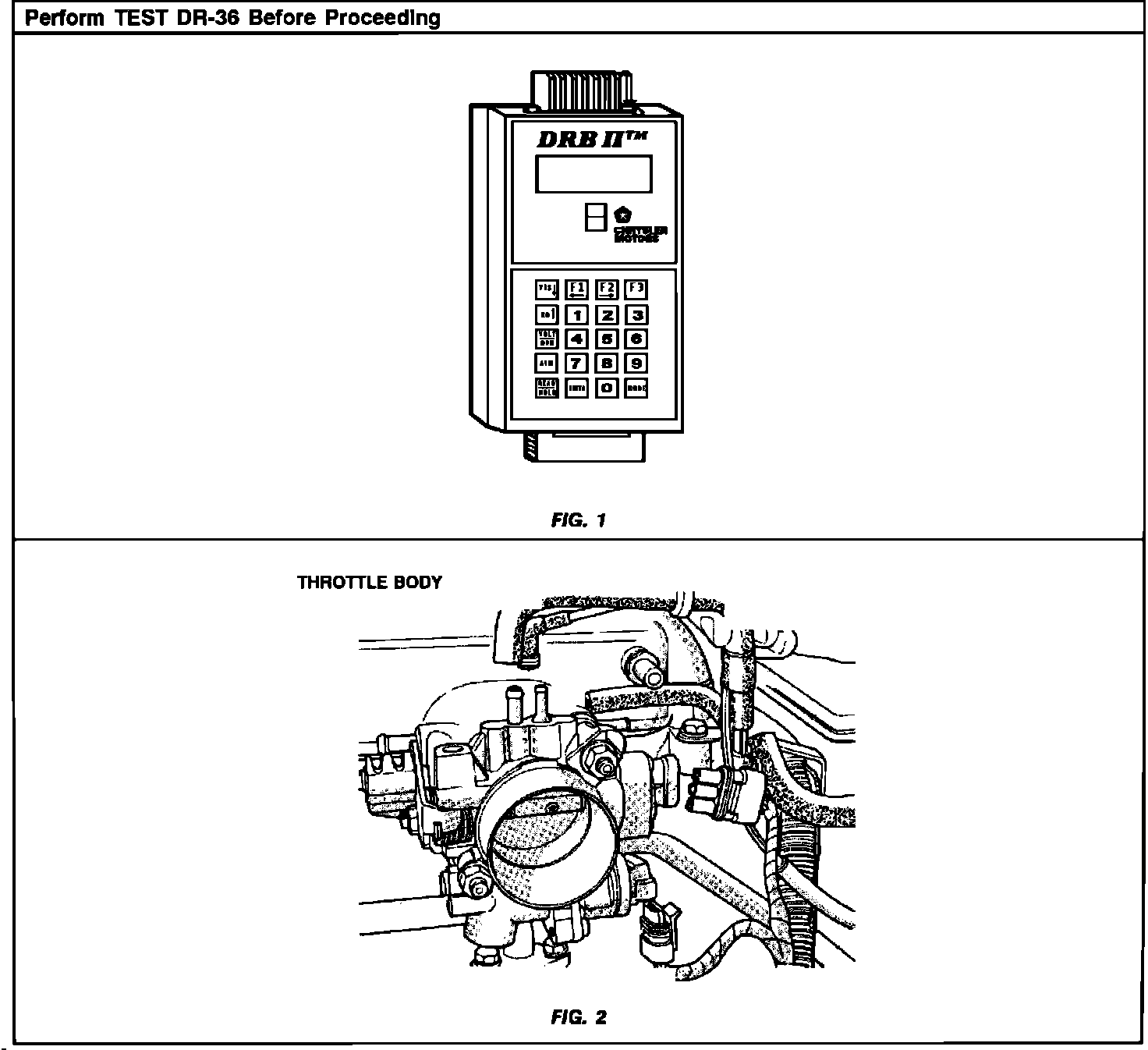

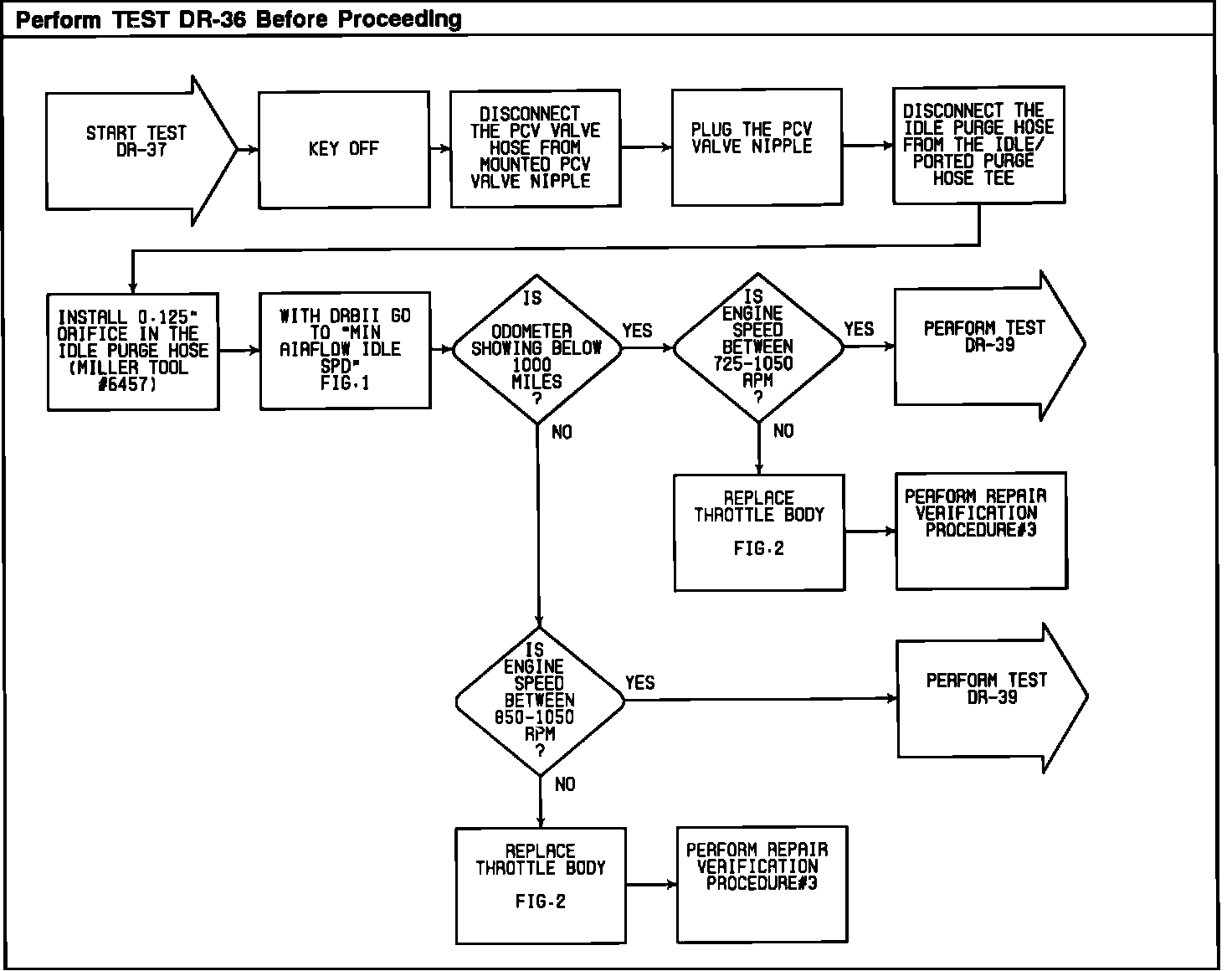

Test DR-37 - Checking Minimum Airflow:



Test DR-37 - Checking Minimum Airflow:
