DR-36 Repairing "Rich F/A Condition" Fault
DR-36 Repairing "Rich F/A Condition" Fault

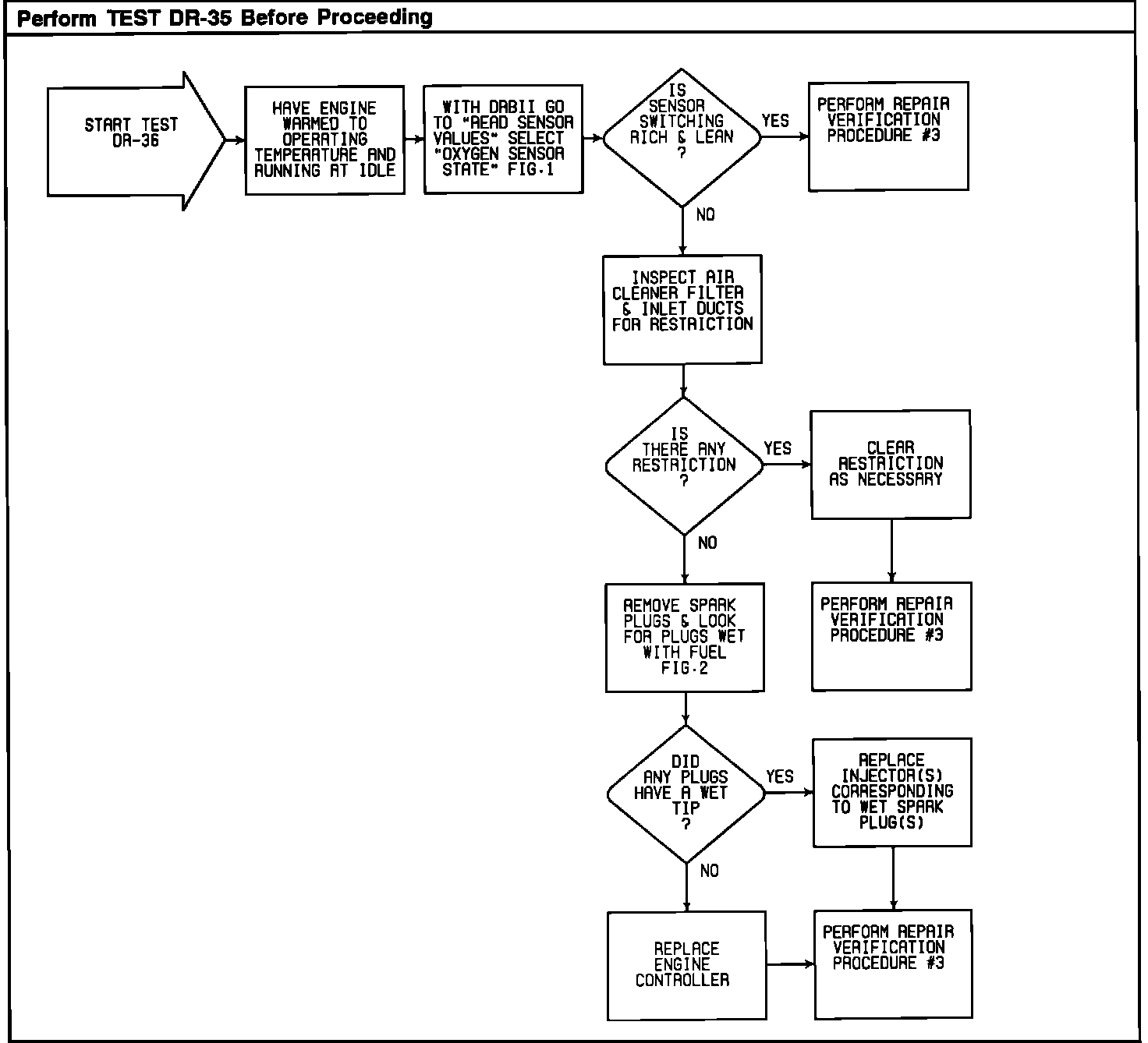

Test DR-36 - Repairing Fault "Rich F/A Condition":
Test DR-36 - Repairing Fault "Rich F/A Condition":
