DR-34 Checking Heated Oxygen Sensor
DR-34 Checking Heated Oxygen Sensor

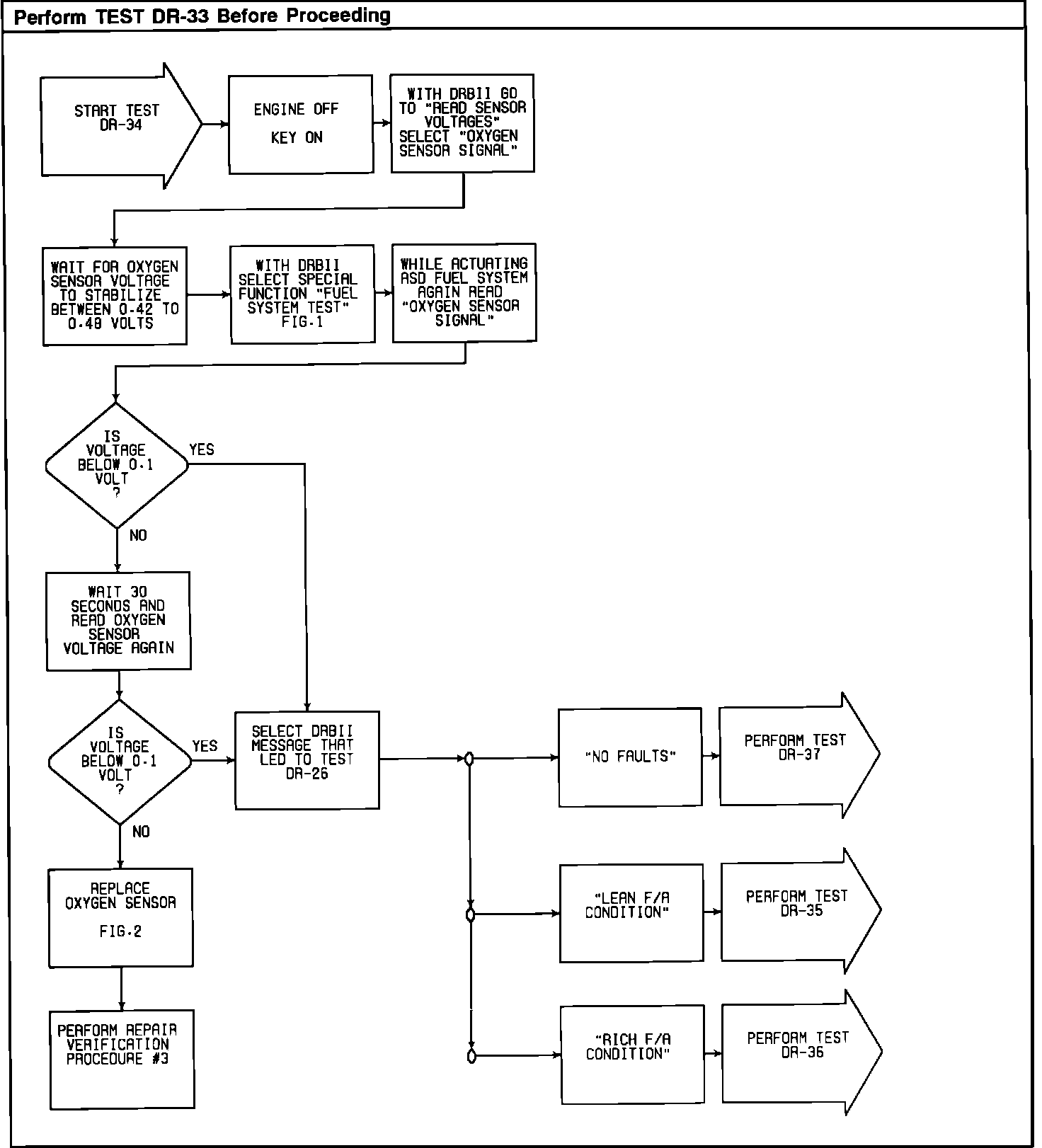

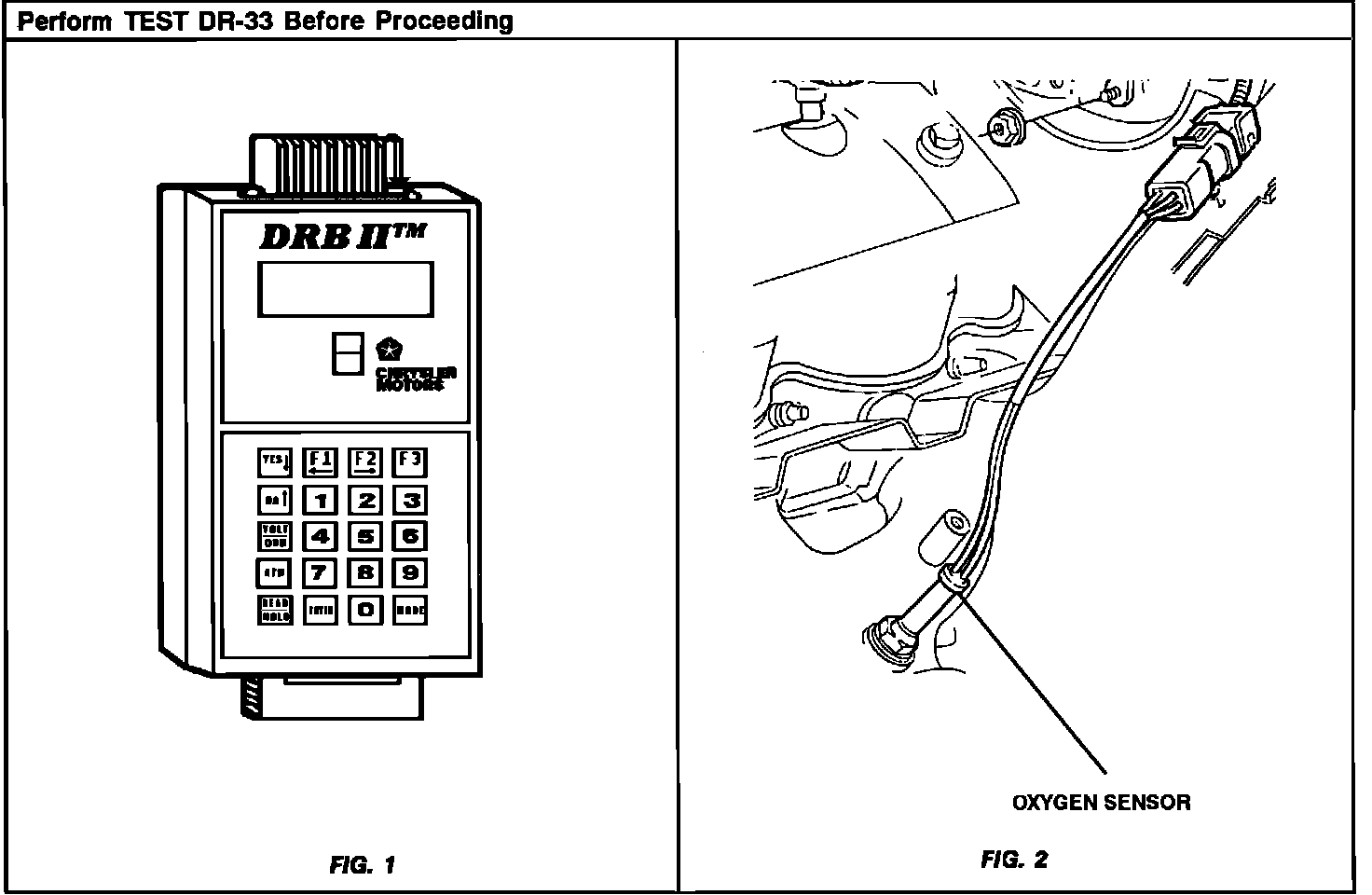

Test DR-34 - Checking Heated Oxygen Sensor:
Test DR-34 - Checking Heated Oxygen Sensor:
