Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-33 Checking Park/Neutral Switch Input

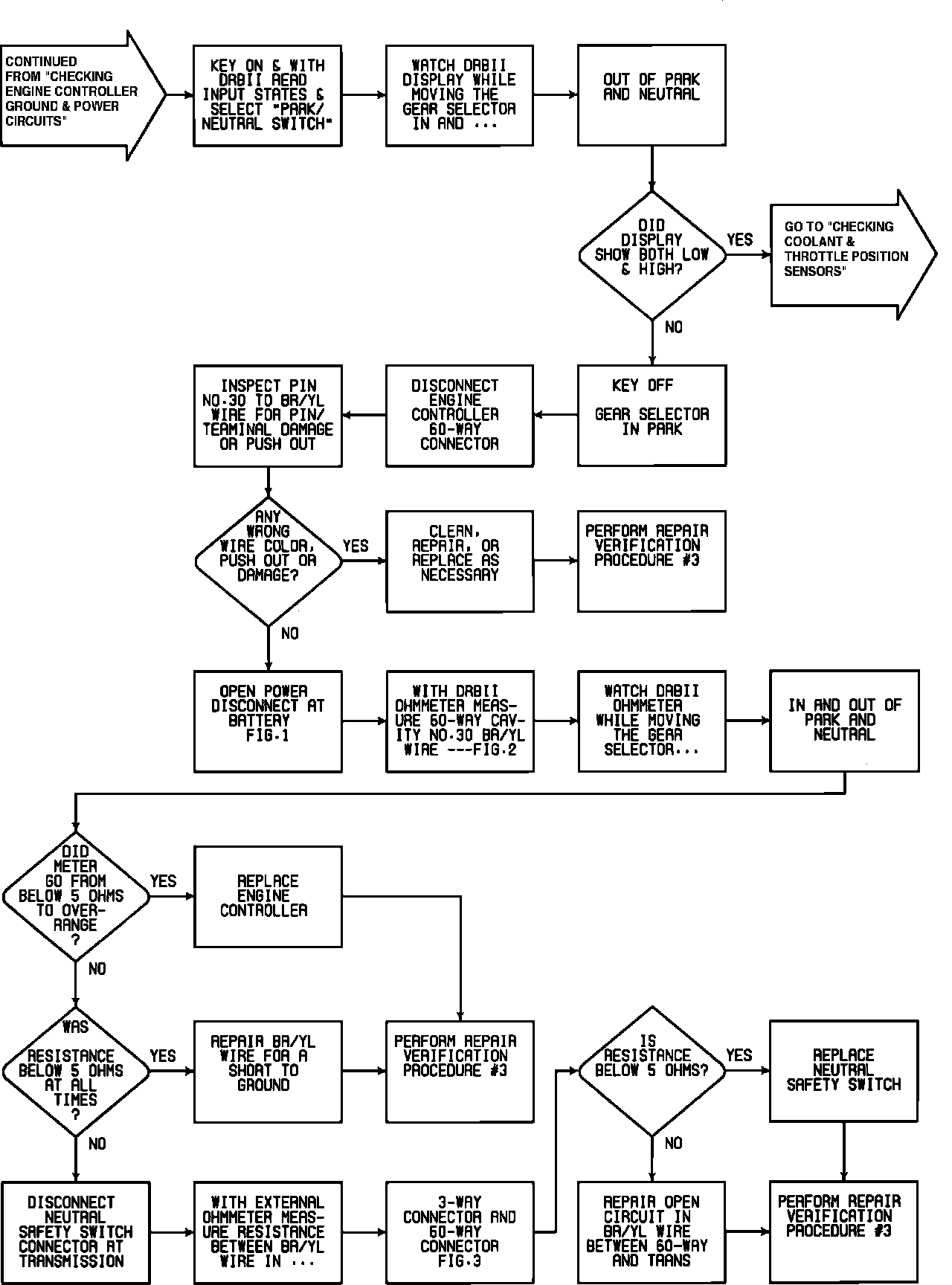

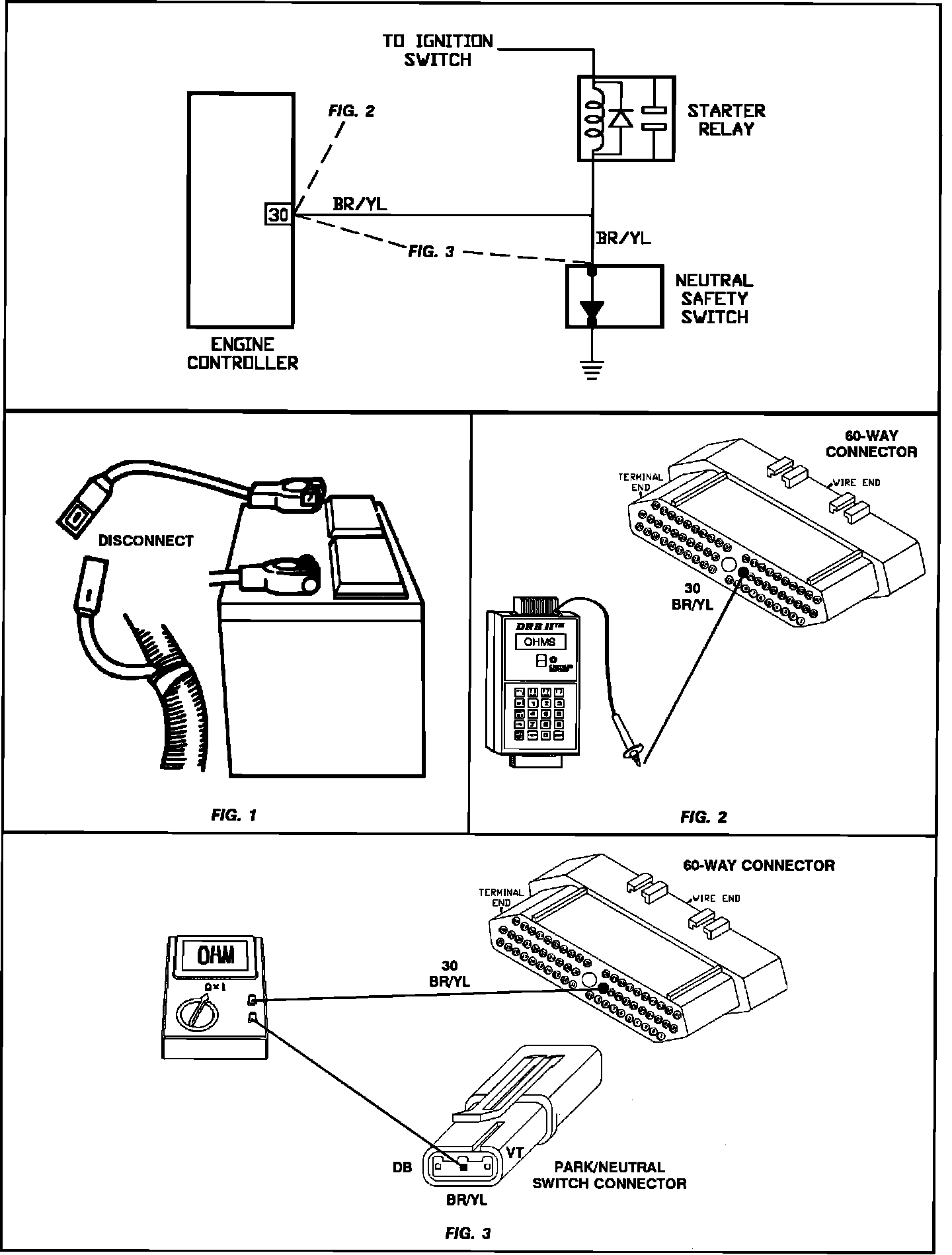

DR-33 Checking Park/Neutral Switch Input

Checking Park/Neutral Switch Input:



Checking Park/Neutral Switch Input:
