DR-32 Checking Secondary Ignition & Ignition Timing

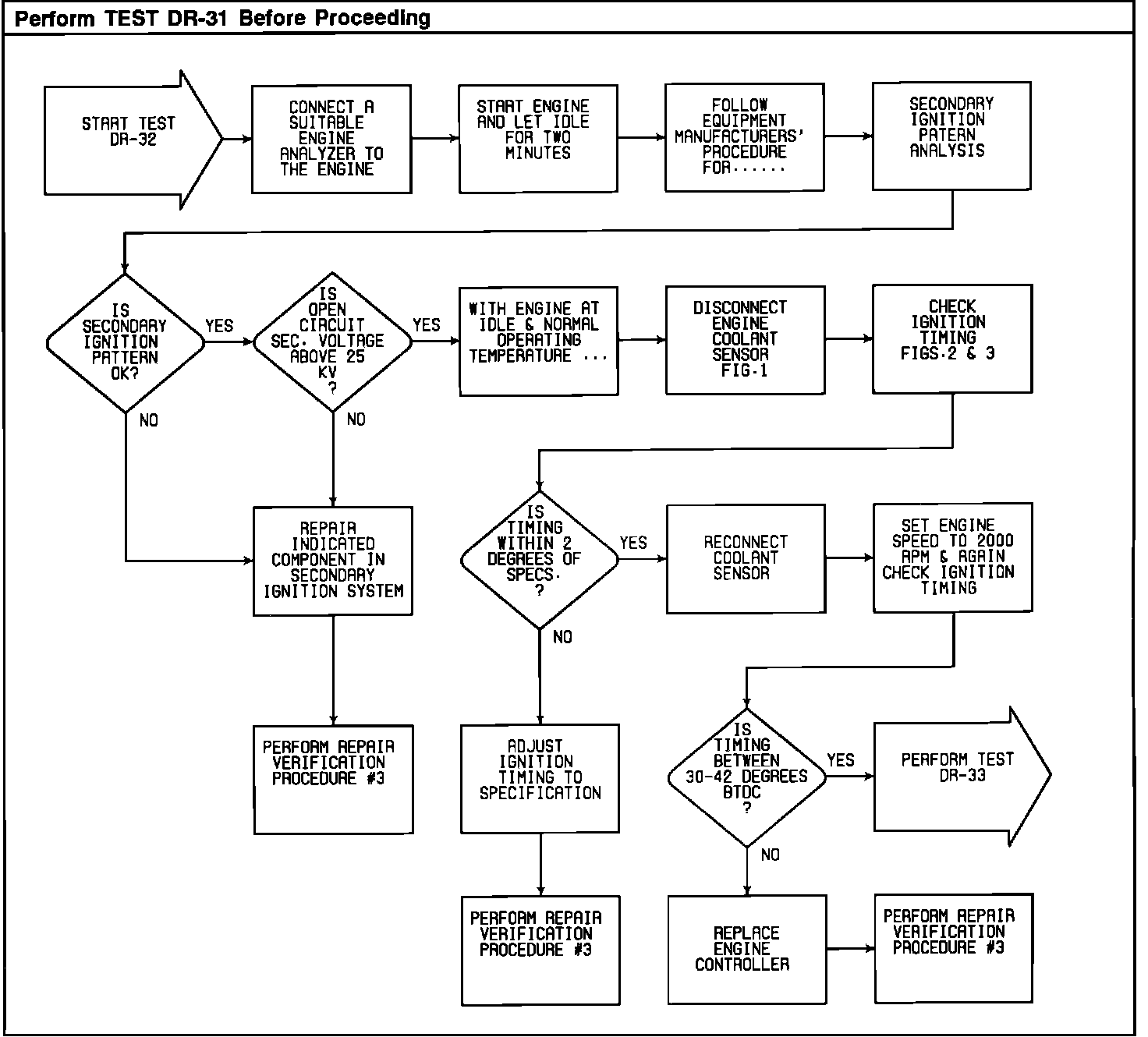

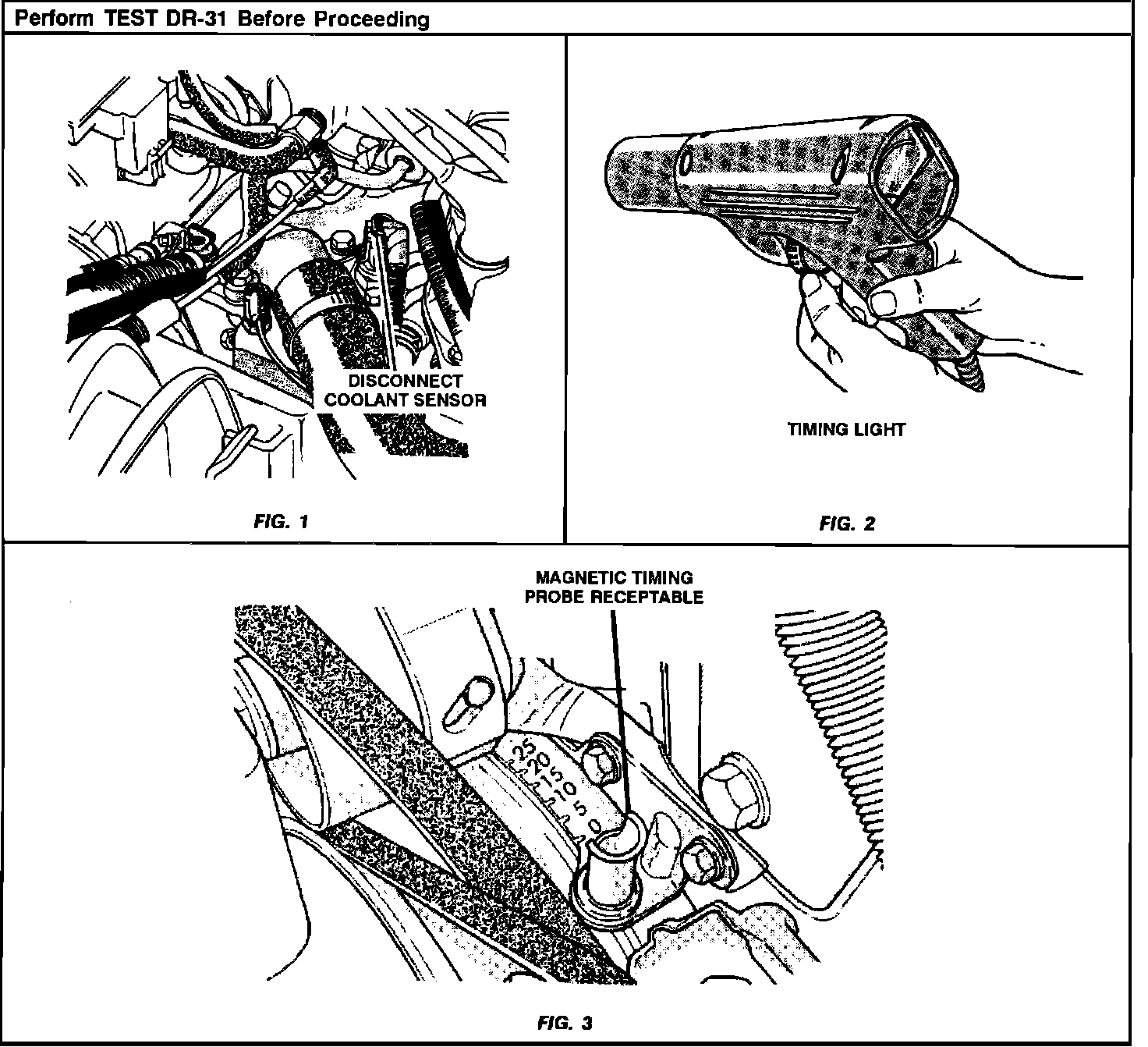

Test DR-32 - Checking Secondary Ignition And Ignition Timing:



Test DR-32 - Checking Secondary Ignition And Ignition Timing:
