DR-31 Repairing "Ignition Coil #3 CKT" Fault
DR-31 Repairing "Ignition Coil #3 CKT" Fault

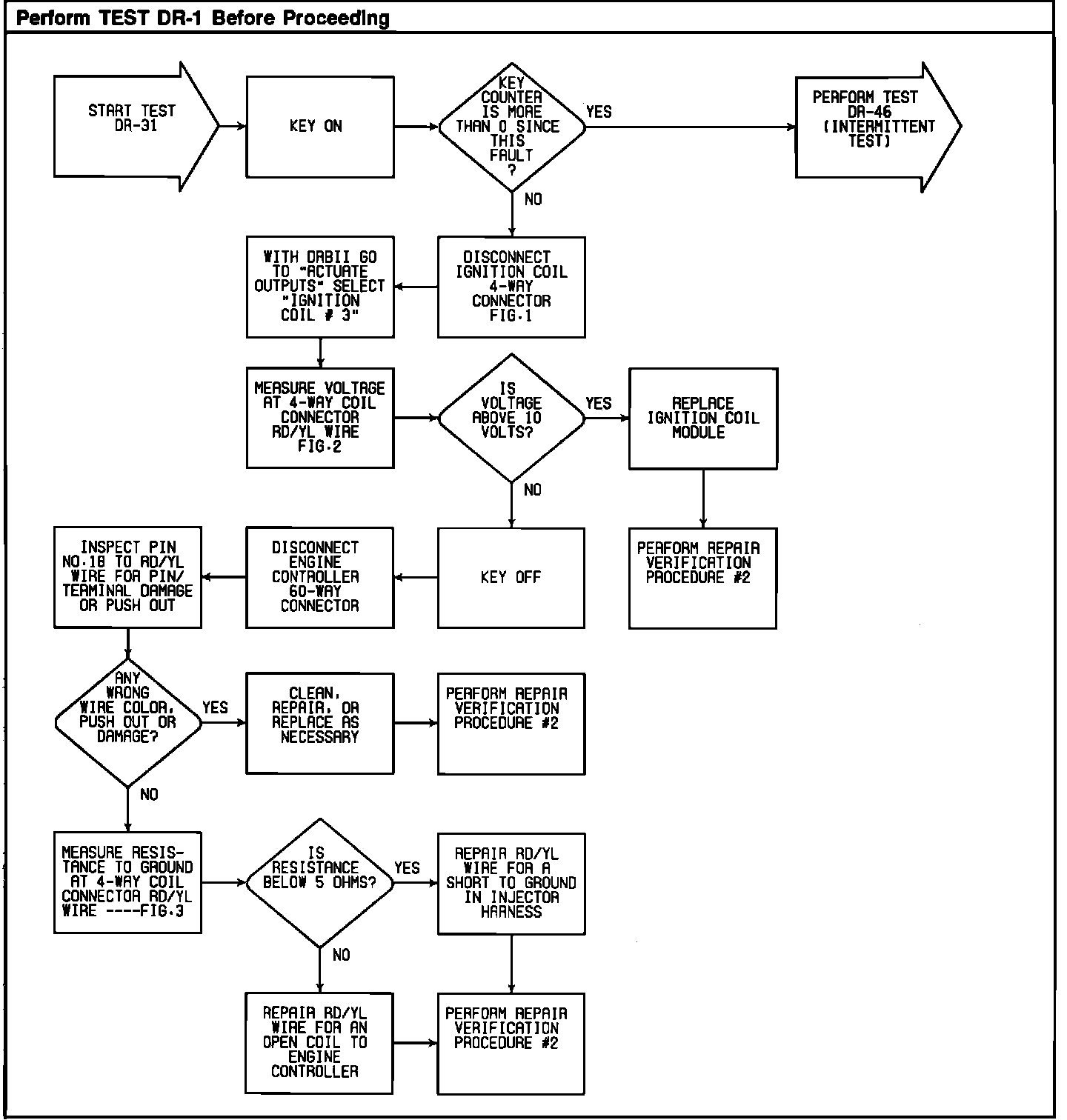

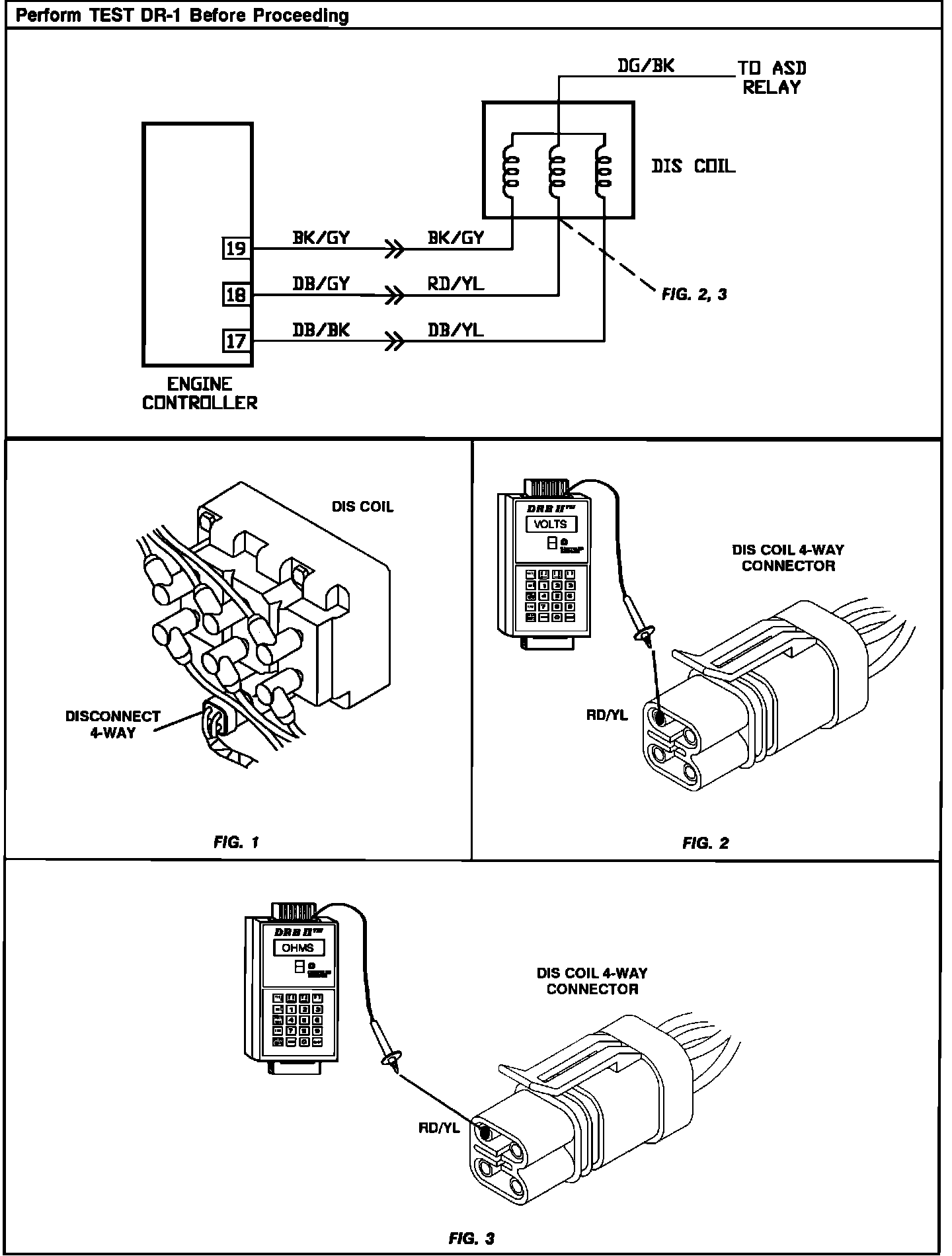

Test DR-31 - Repairing Fault "Ignition Coil #3 Circuit":
Test DR-31 - Repairing Fault "Ignition Coil #3 Circuit":
