DR-31 Checking Oxygen Sensor Heater
DR-31 Checking Oxygen Sensor Heater

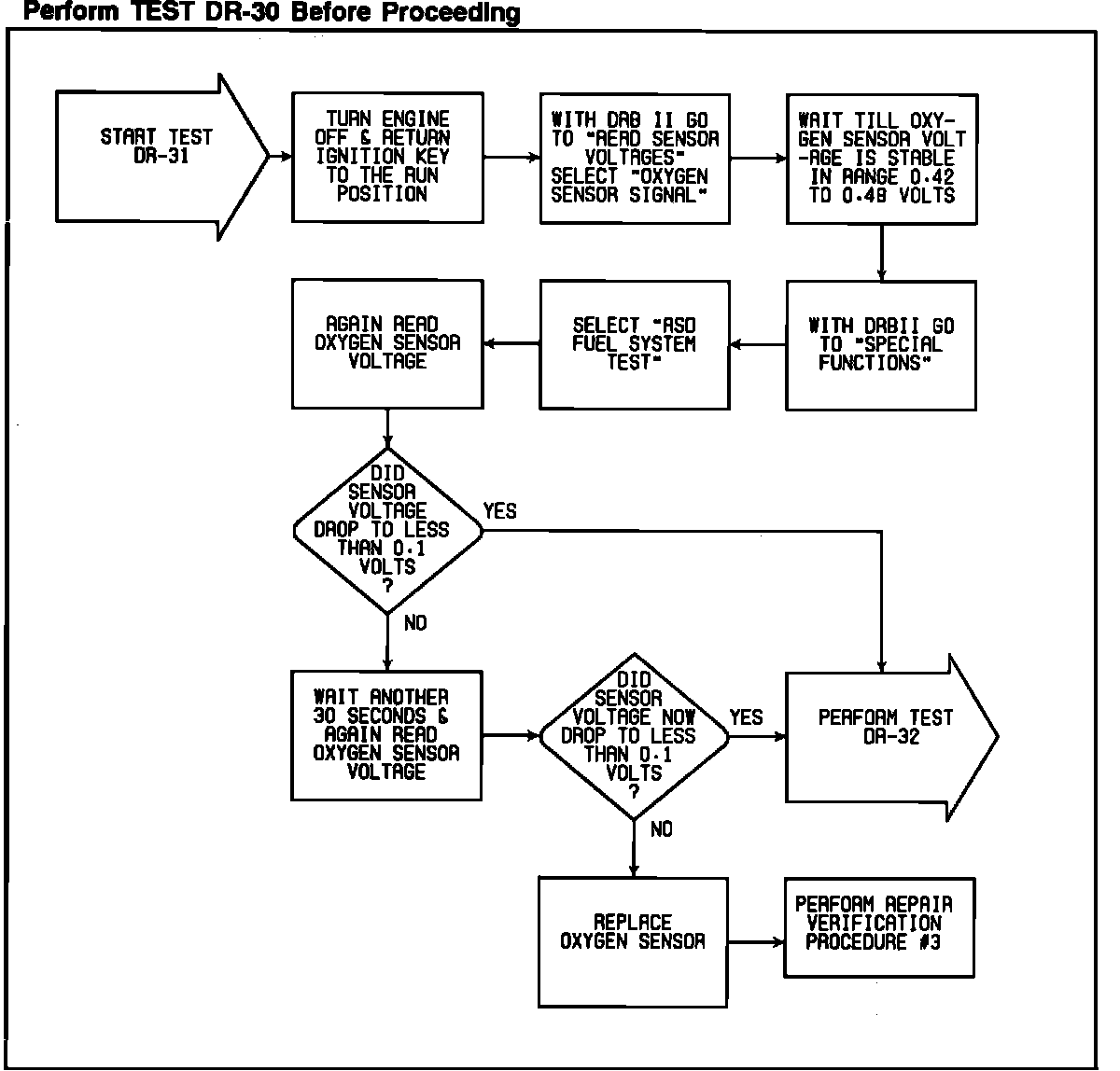

Test DR-31 - Test For Oxygen Sensor heater:
