Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-31 Checking EGR Operation

DR-31 Checking EGR Operation

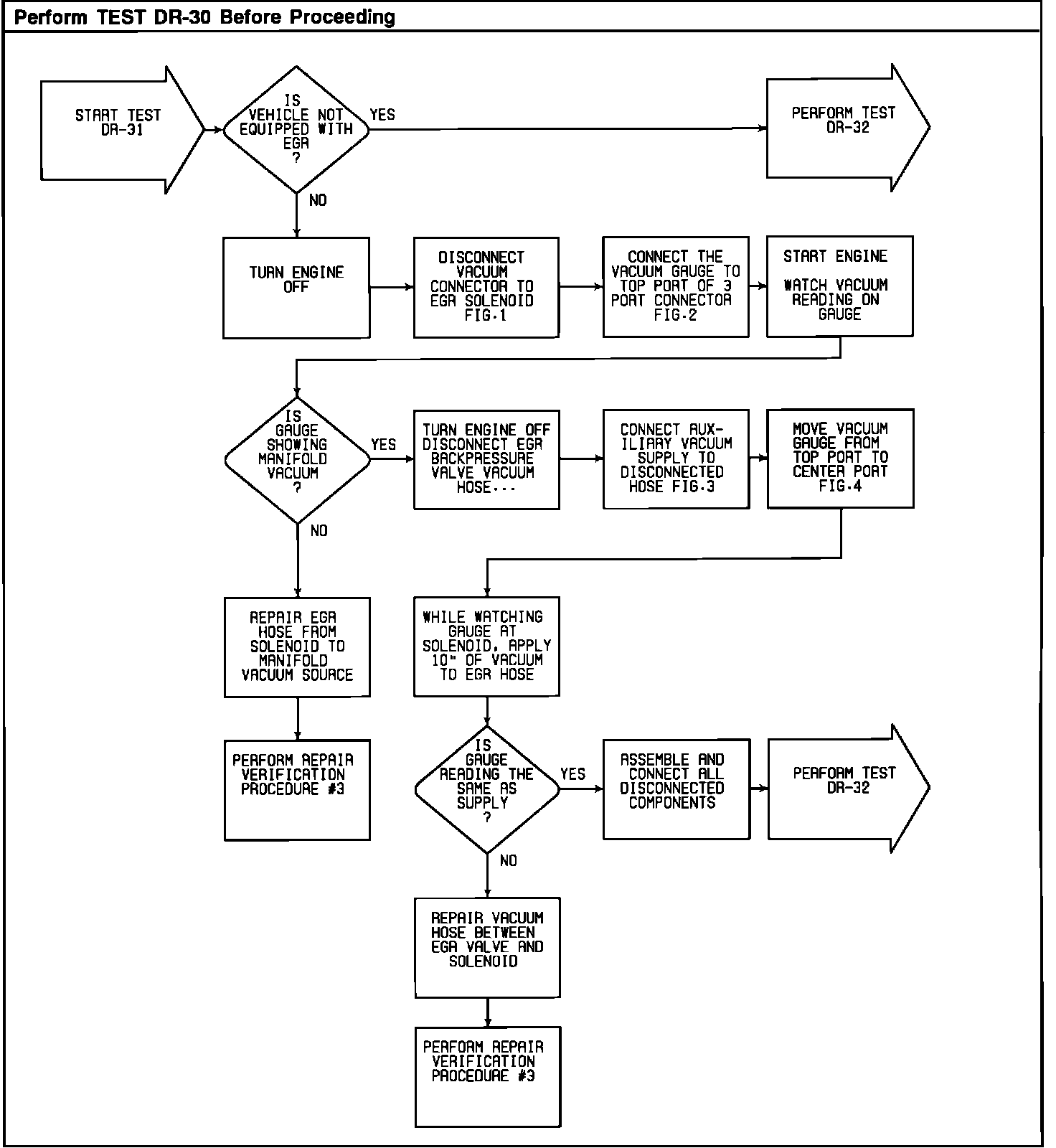

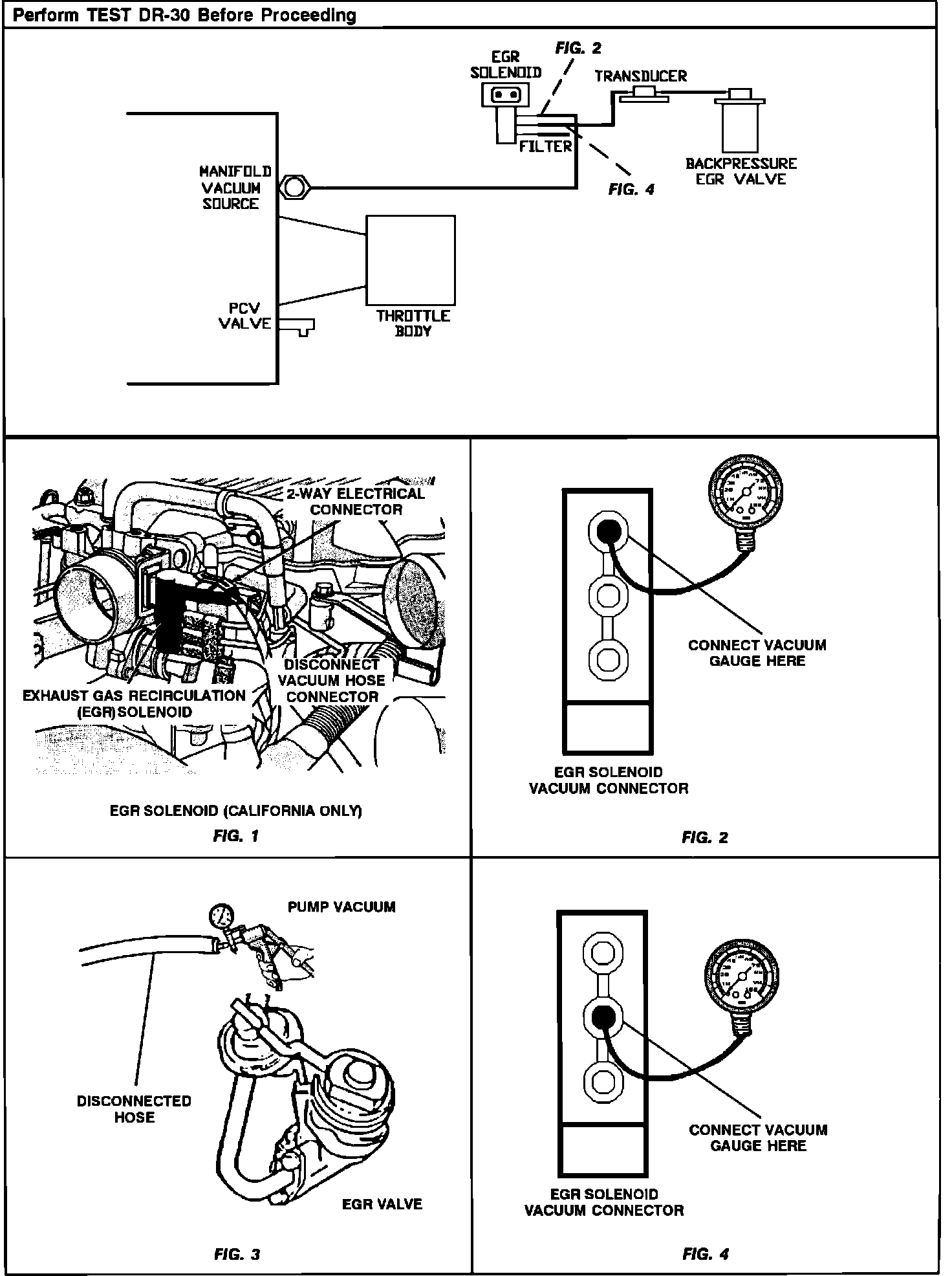

Test DR-31 - Checking EGR Operation:



Test DR-31 - Checking EGR Operation:
