FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chrysler
>>
1990
>>
Imperial V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Driveability (DR) Tests
>>
DR-29 Repairing Fuel Mixture Faults
DR-29 Repairing Fuel Mixture Faults

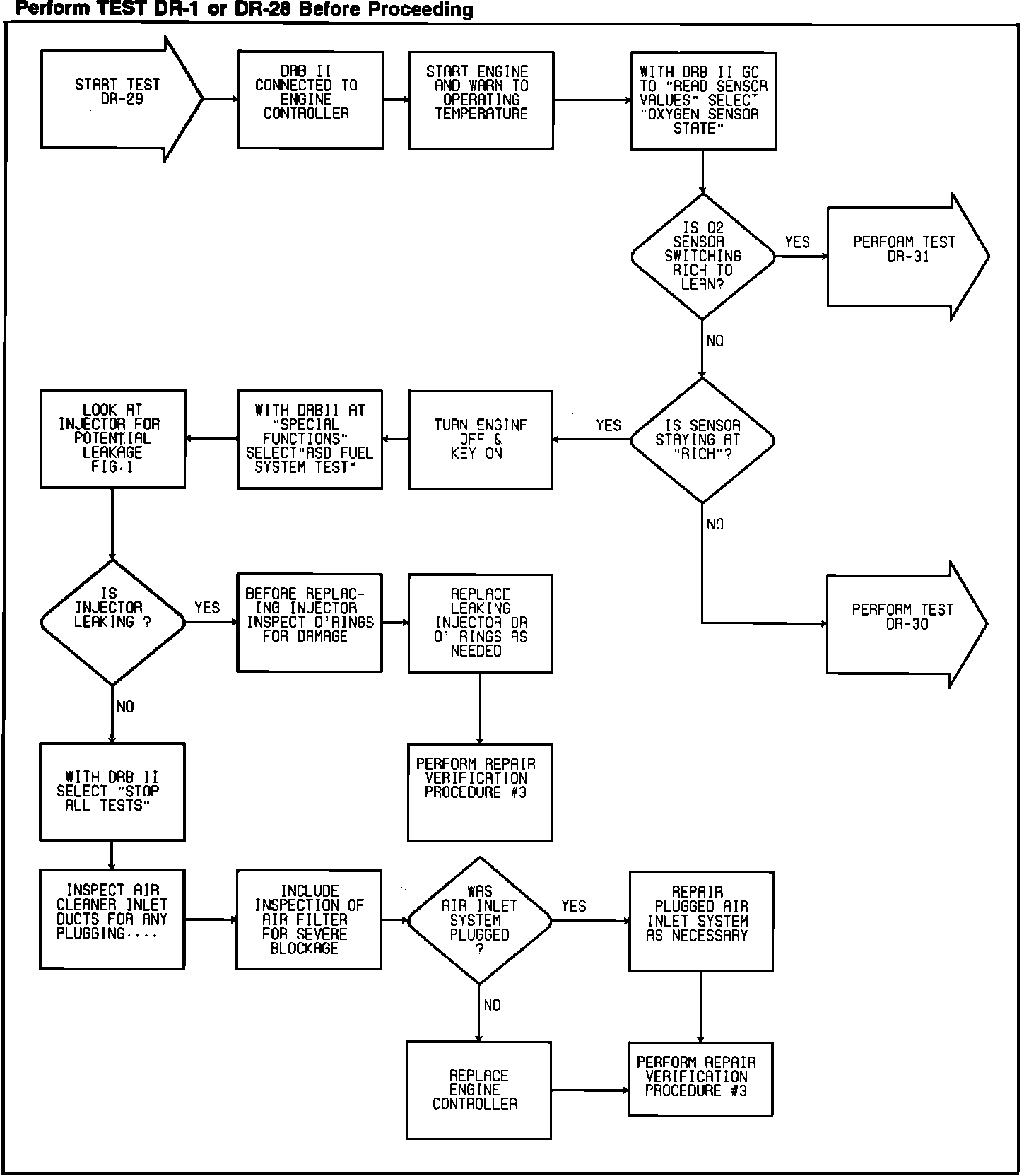

Test DR-29 - Repairing Faults For Fuel Mixture:
Test DR-29 - Repairing Faults For Fuel Mixture:
