DR-26 Checking Engine Controller Power & Ground Circuits
>>
Part 1 of 2
Part 1 of 2

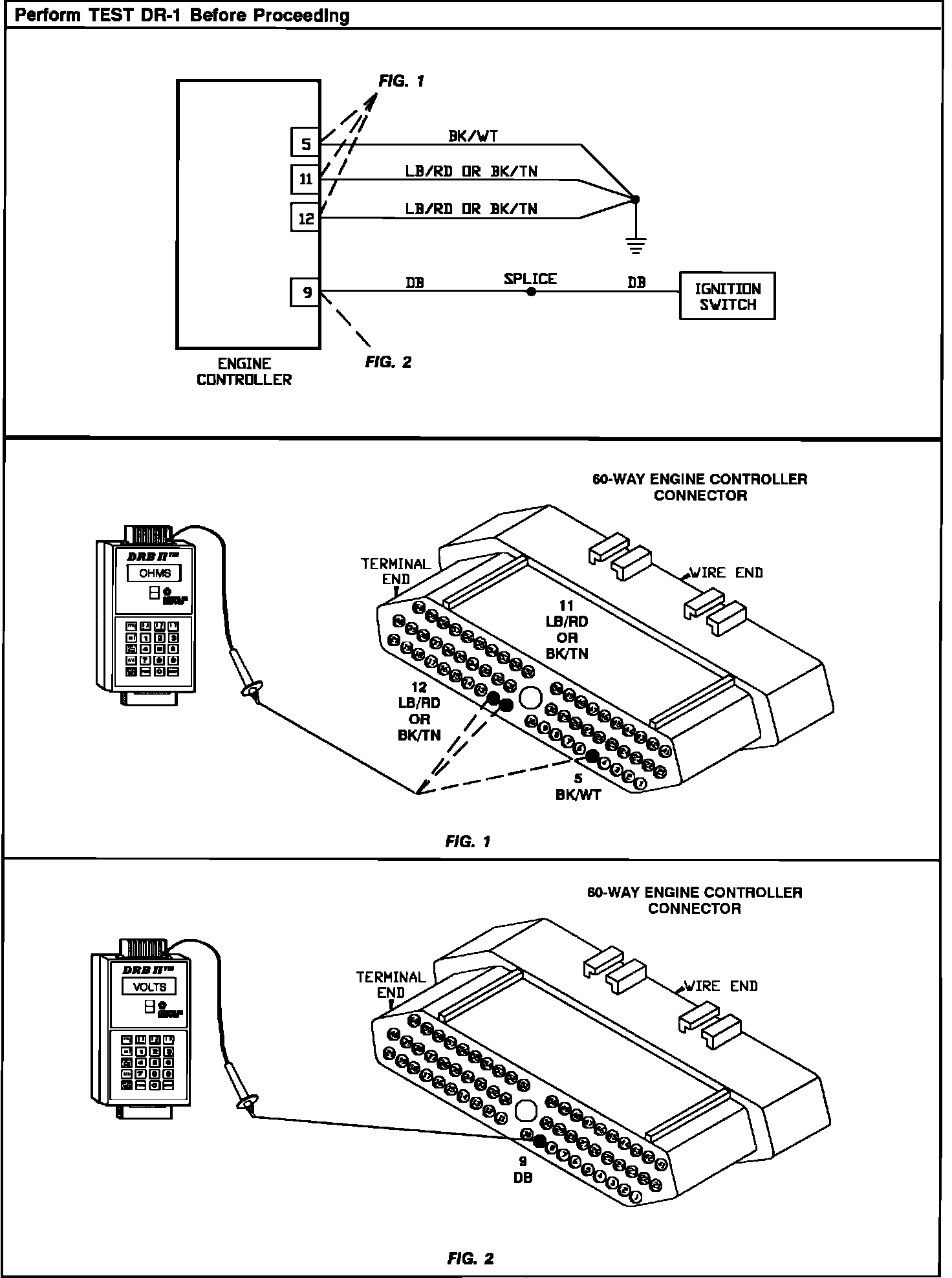

Test DR-26 - Checking Engine Controller Power And Ground Circuits:
Test DR-26 - Checking Engine Controller Power And Ground Circuits:
