DR-25 Repairing "A/C Clutch Relay CKT" Fault
DR-25 Repairing "A/C Clutch Relay CKT" Fault

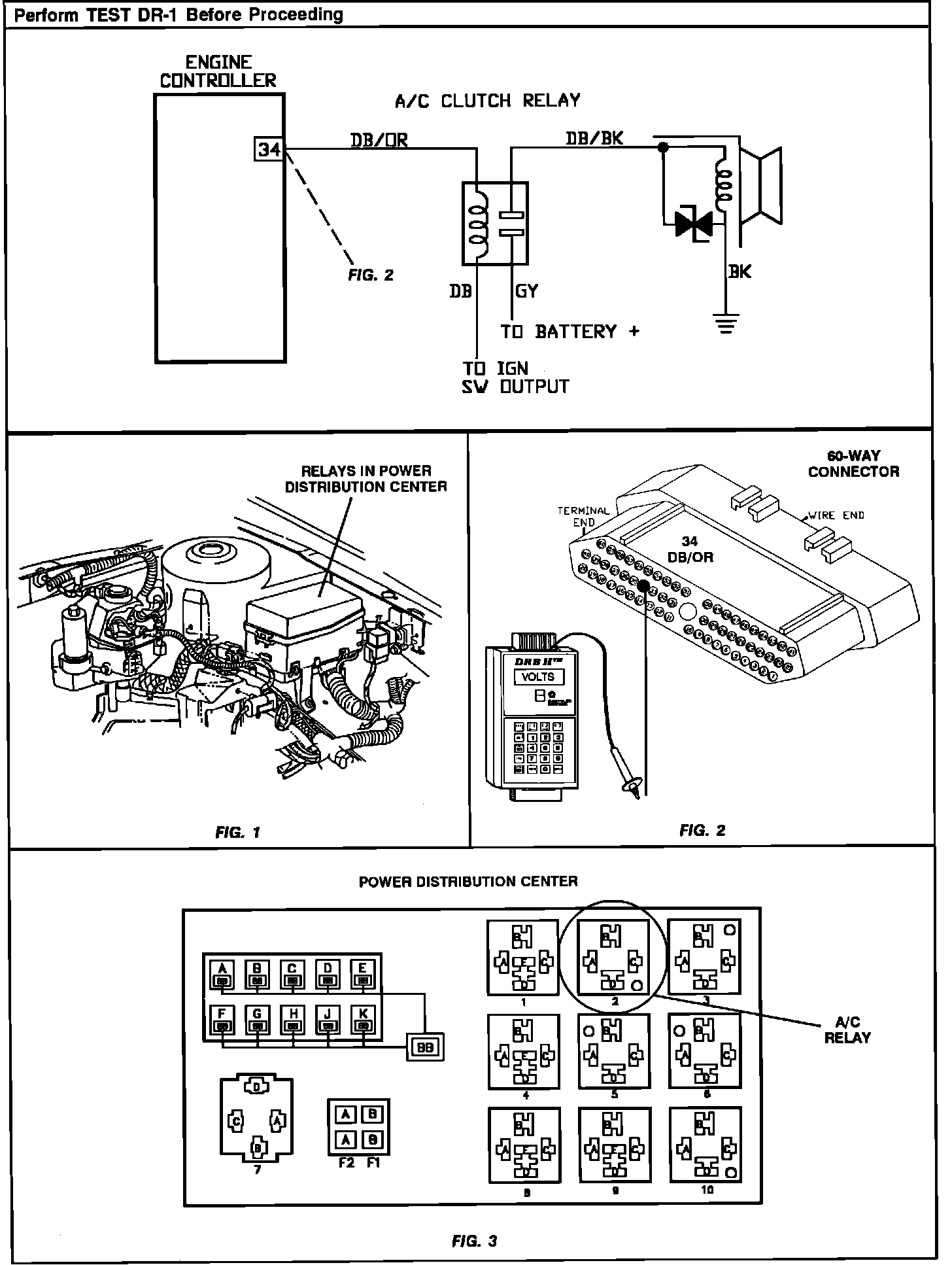

Test DR-25 - Repairing Fault "A/C Clutch Relay Circuit":

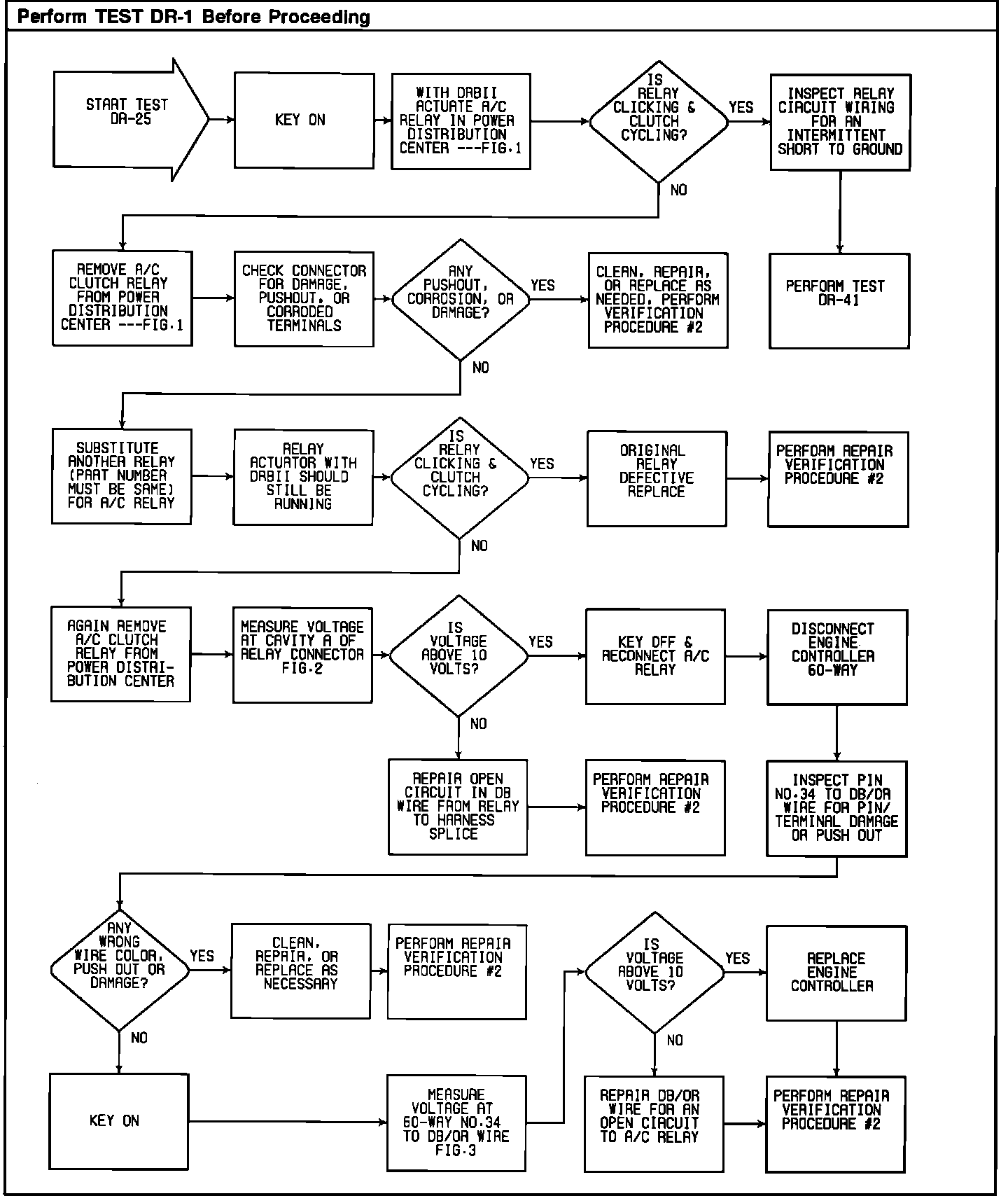

Test DR-25 - Repairing Fault "A/C Clutch relay Circuit":
