Imperial V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Driveability (DR) Tests
>>

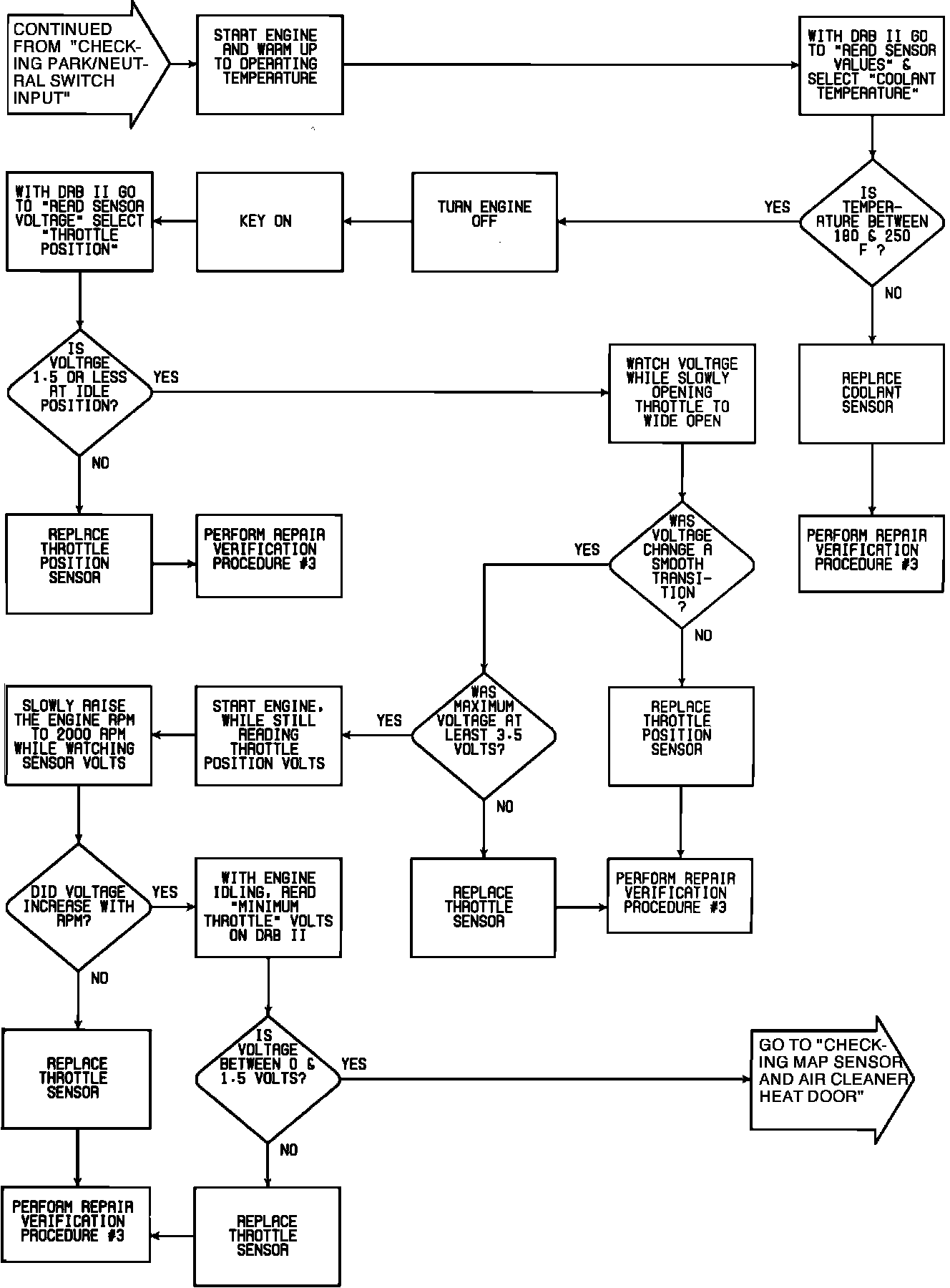

DR-25 Checking Operation of Sensors
DR-25 Checking Operation of Sensors
Checking Operation Of Sensors:
