DR-25 Checking MAP Sensor & Air Cleaner Heat Door
DR-25 Checking MAP Sensor & Air Cleaner Heat Door

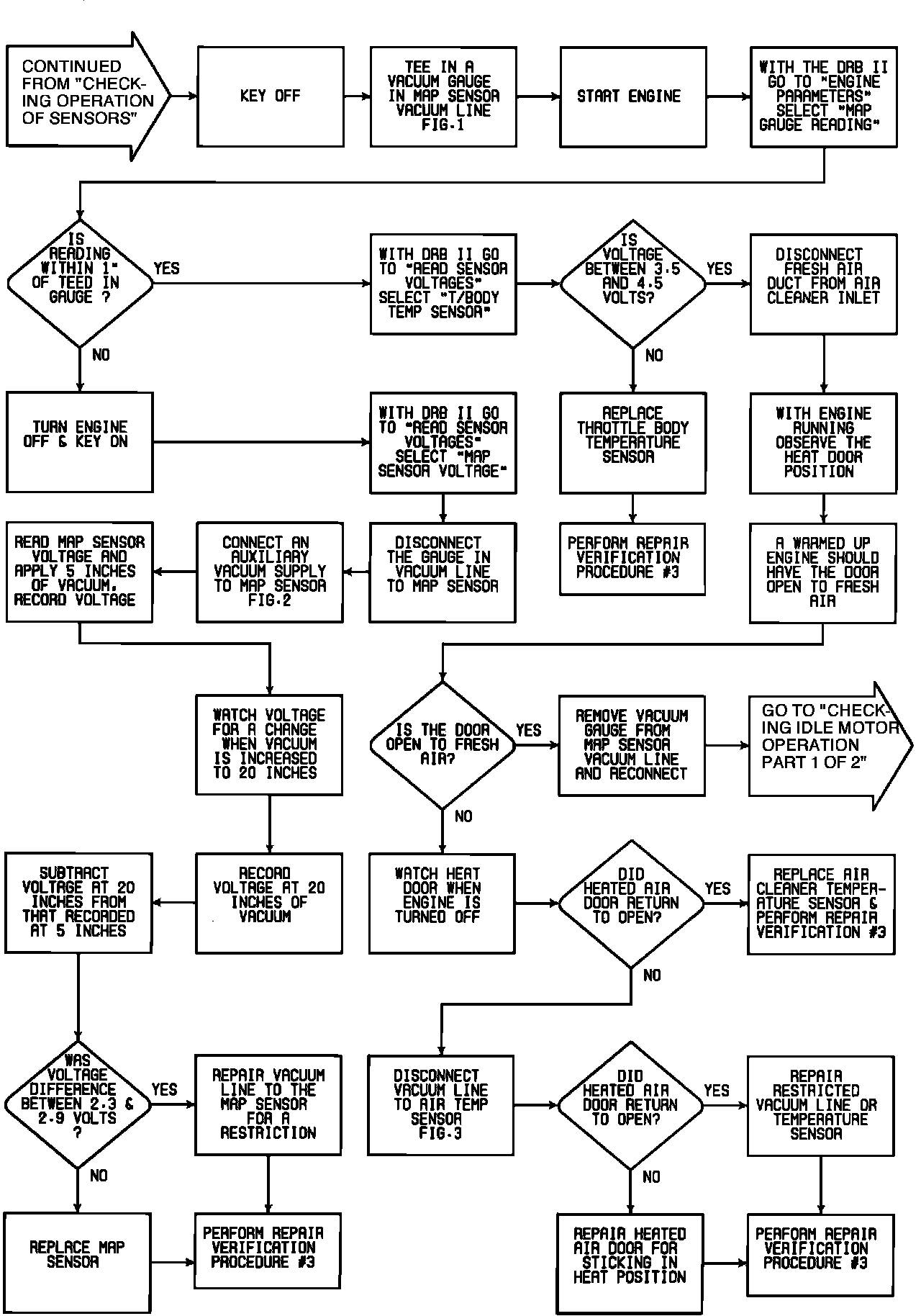

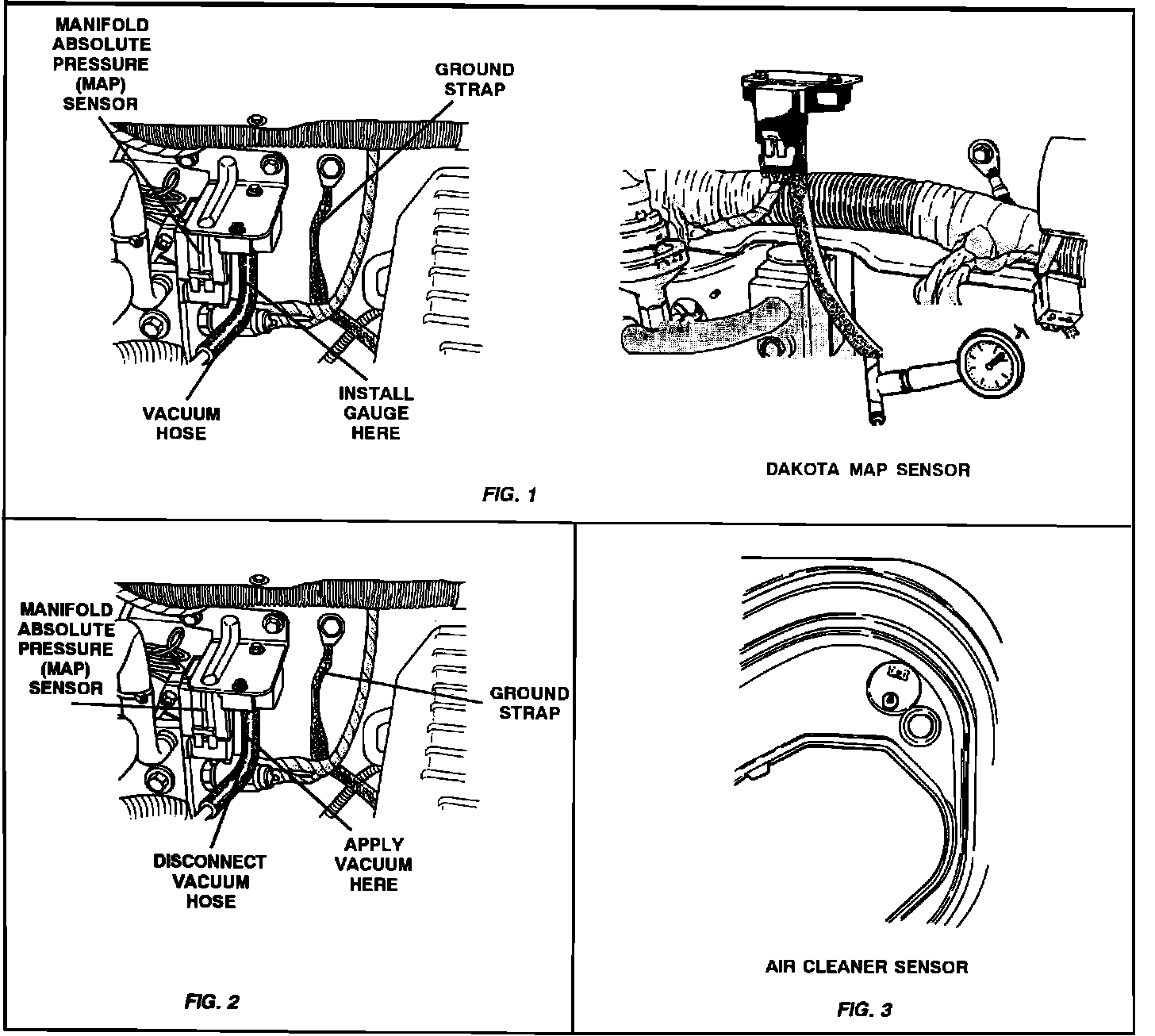

Checking MAP Sensor And Air Cleaner Heat Door:
Checking MAP Sensor And Air Cleaner Heat Door:
