DR-24 Repairing "SYNC Pick-Up Signal" Fault
DR-24 Repairing "SYNC Pick-Up Signal" Fault

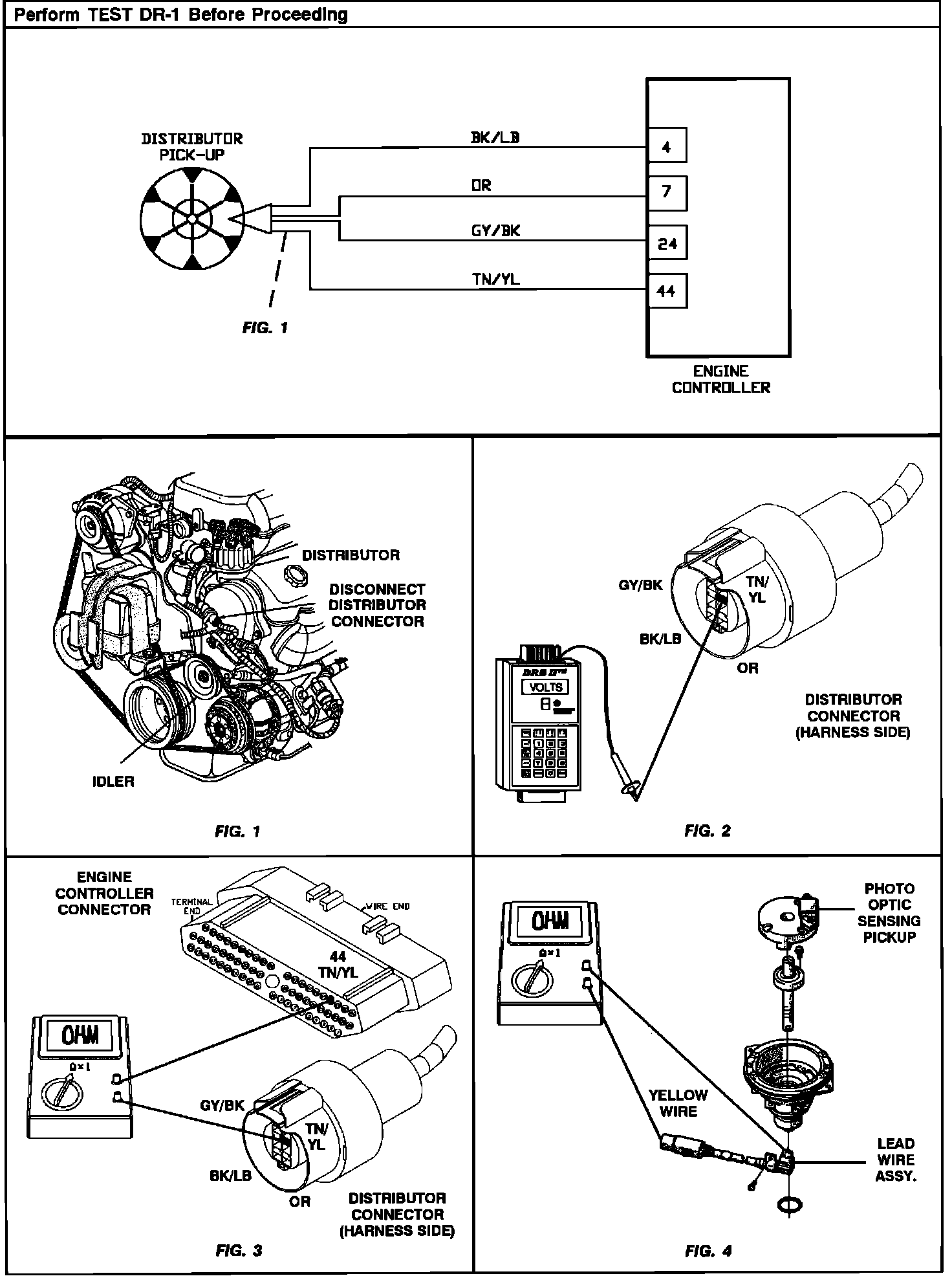

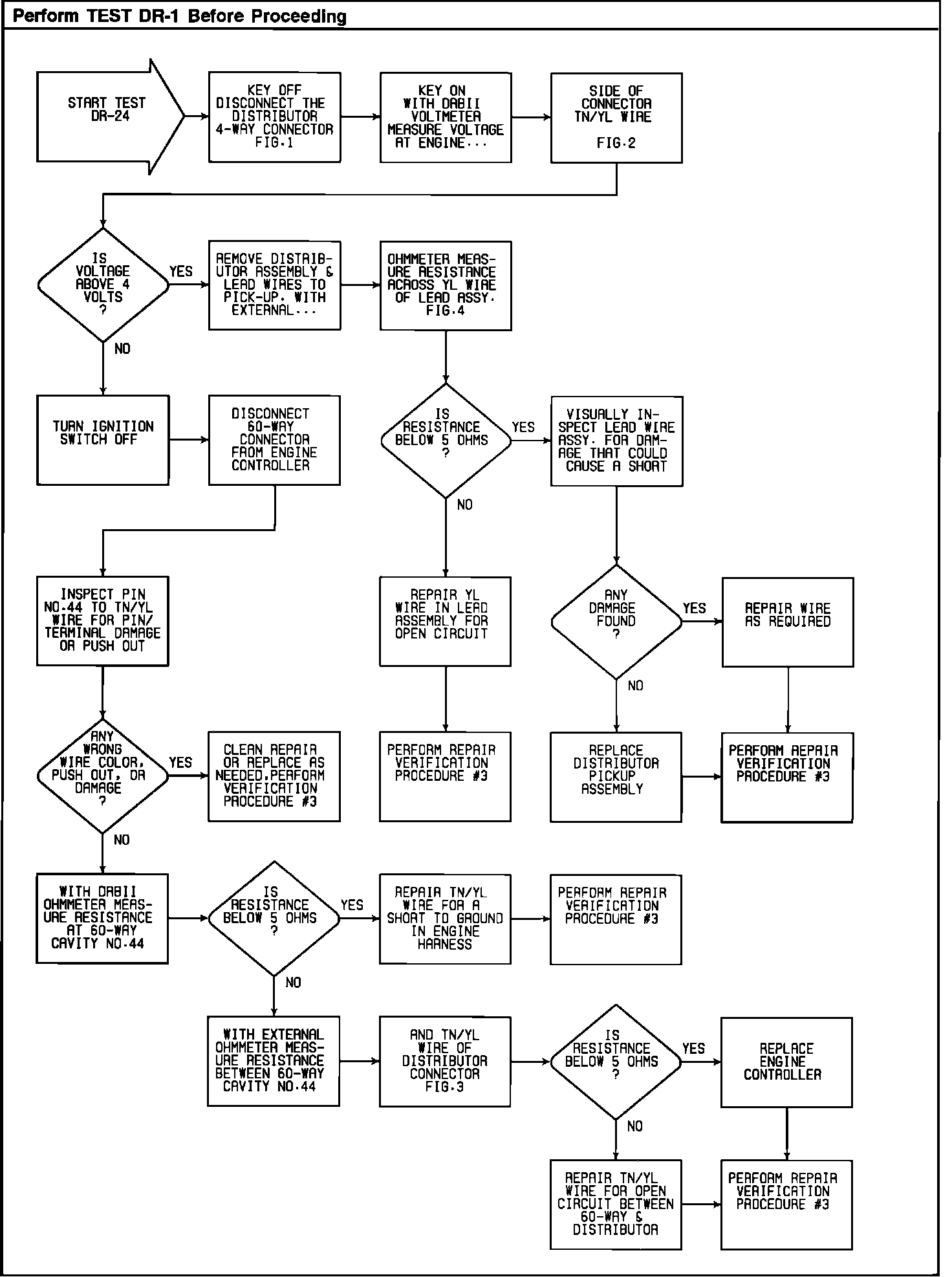

Test DR-24 - Repairing Fault "Sync Pickup Signal":
Test DR-24 - Repairing Fault "Sync Pickup Signal":
