DR-23 Repairing "PTU Solenoid Circuit" Fault
DR-23 Repairing "PTU Solenoid Circuit" Fault

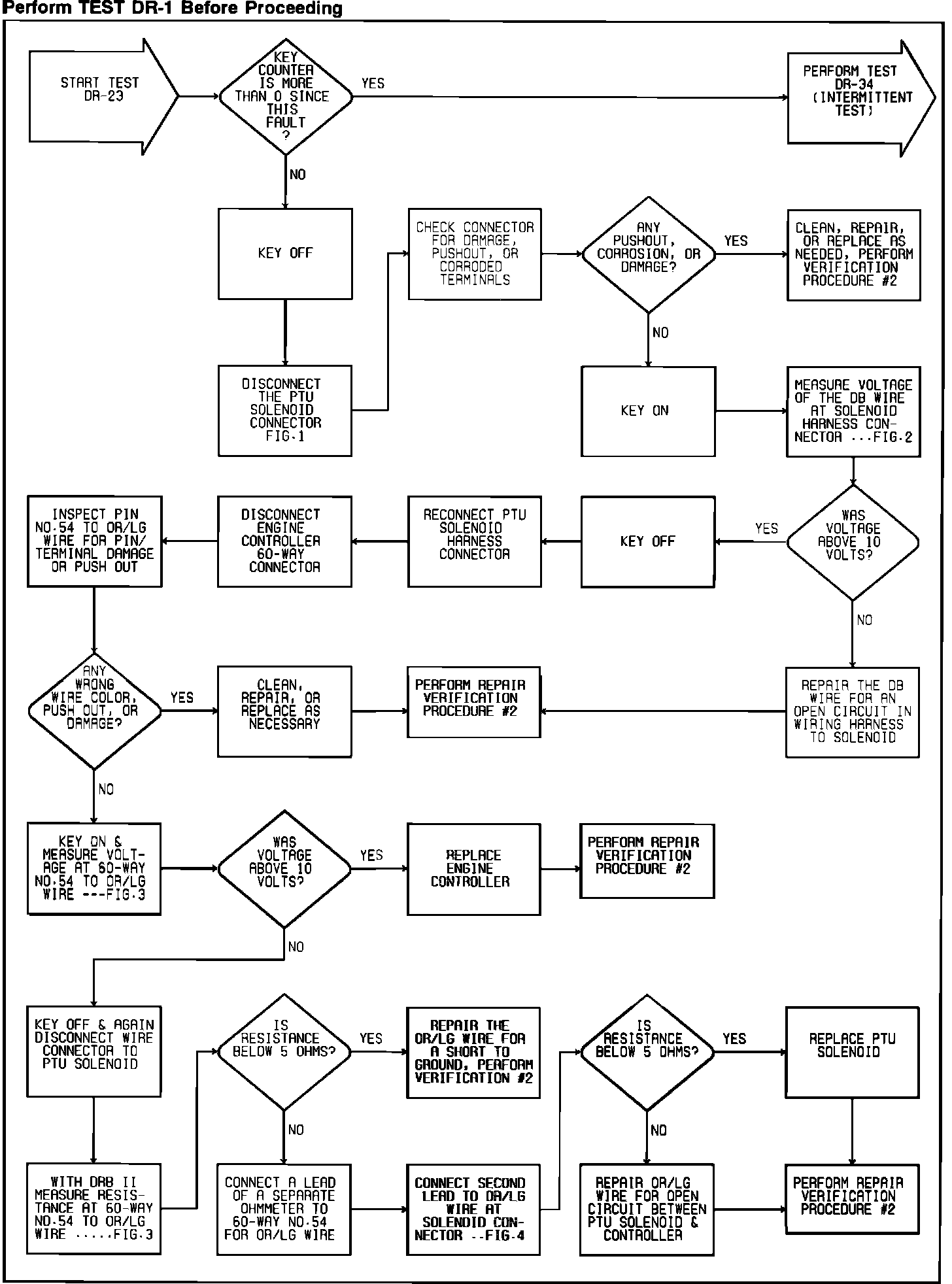

Test DR-23 - Repairing Fault "PTU Solenoid Circuit":
Test DR-23 - Repairing Fault "PTU Solenoid Circuit":
