DR-23 Repairing "EGR System Failure" Fault (California)

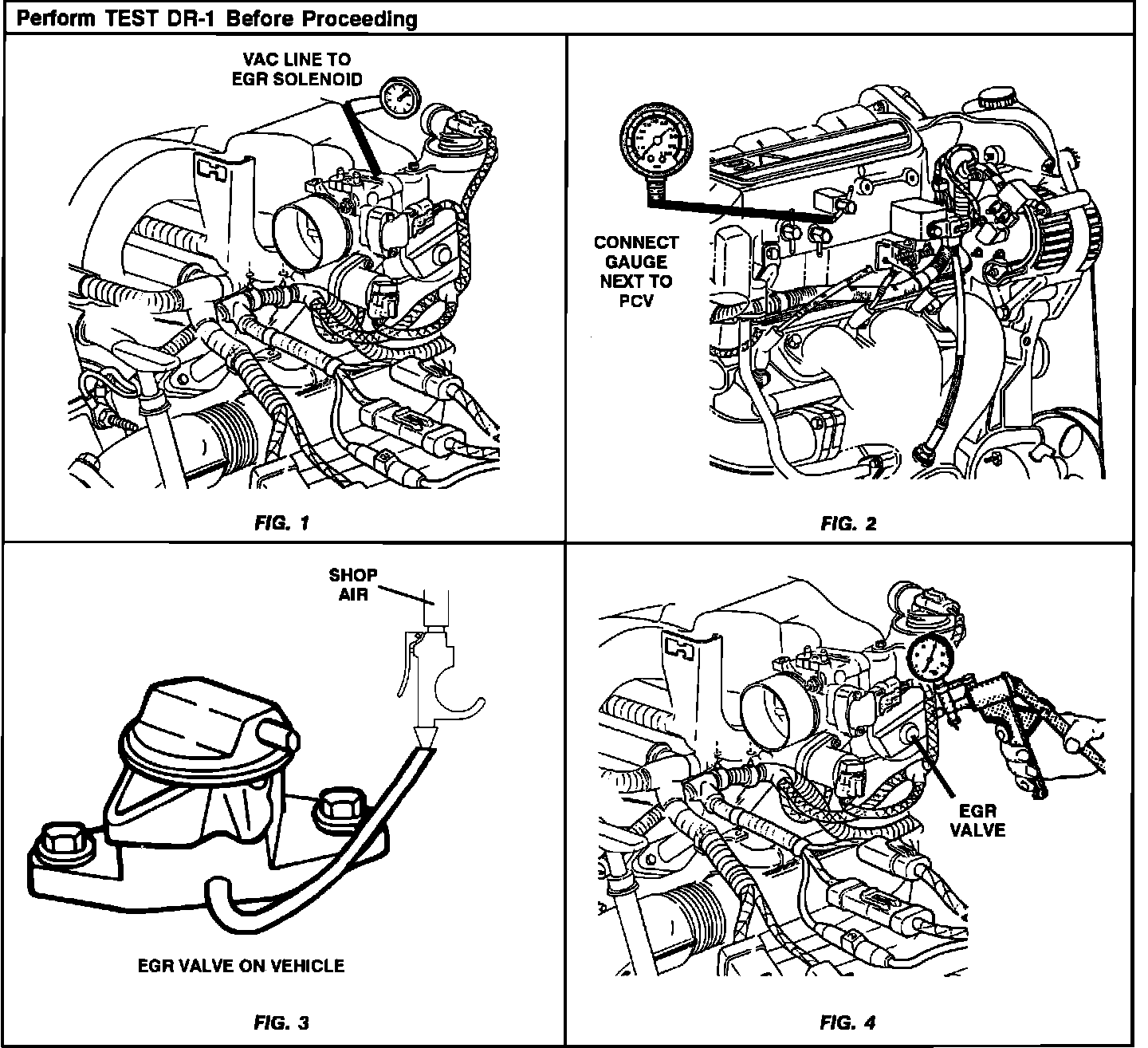

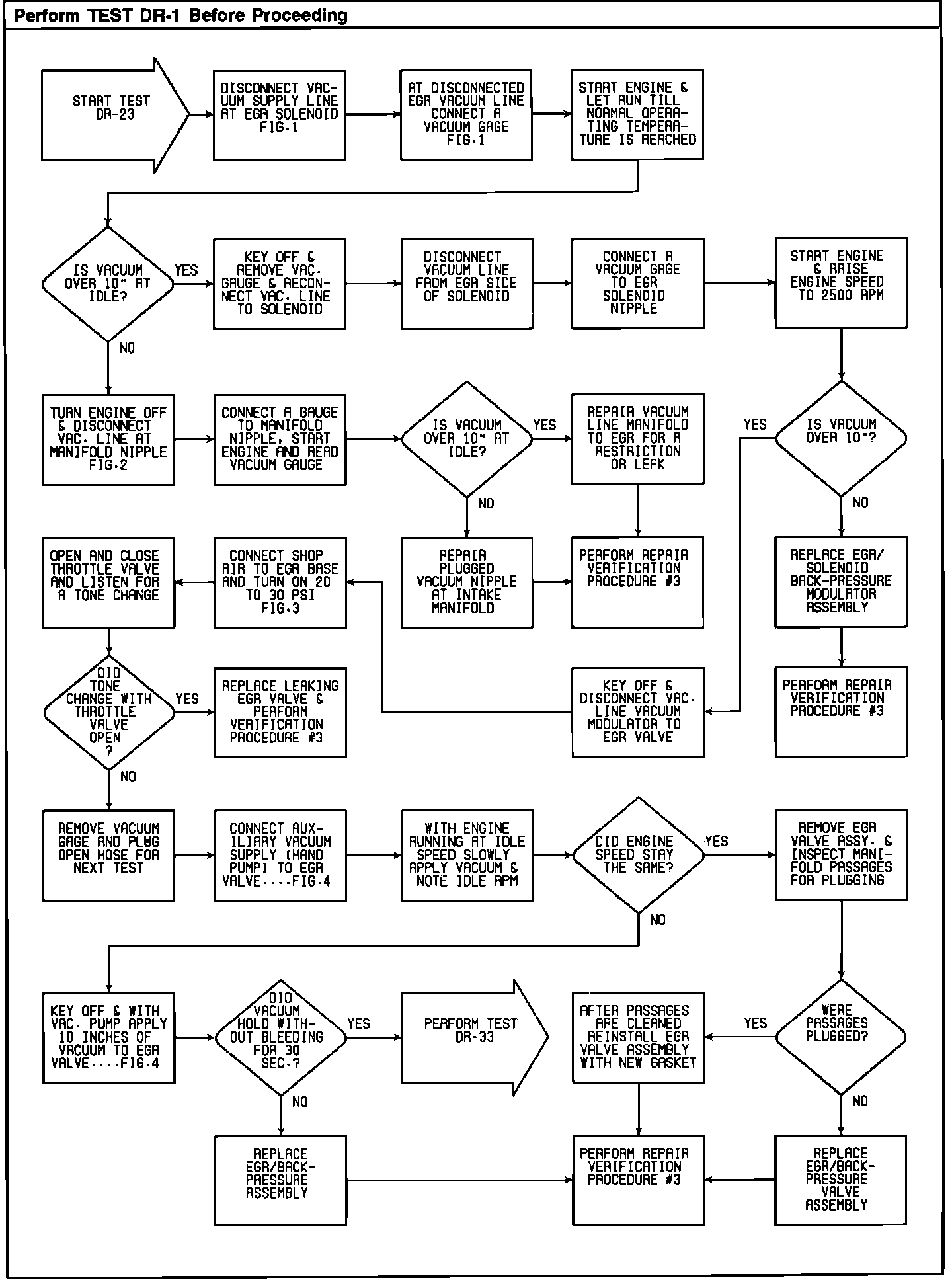

Test DR-23 - Repairing Fault "EGR System Failure":



Test DR-23 - Repairing Fault "EGR System Failure":
