DR-22 Repairing "Radiator Fan Relay" Fault
DR-22 Repairing "Radiator Fan Relay" Fault

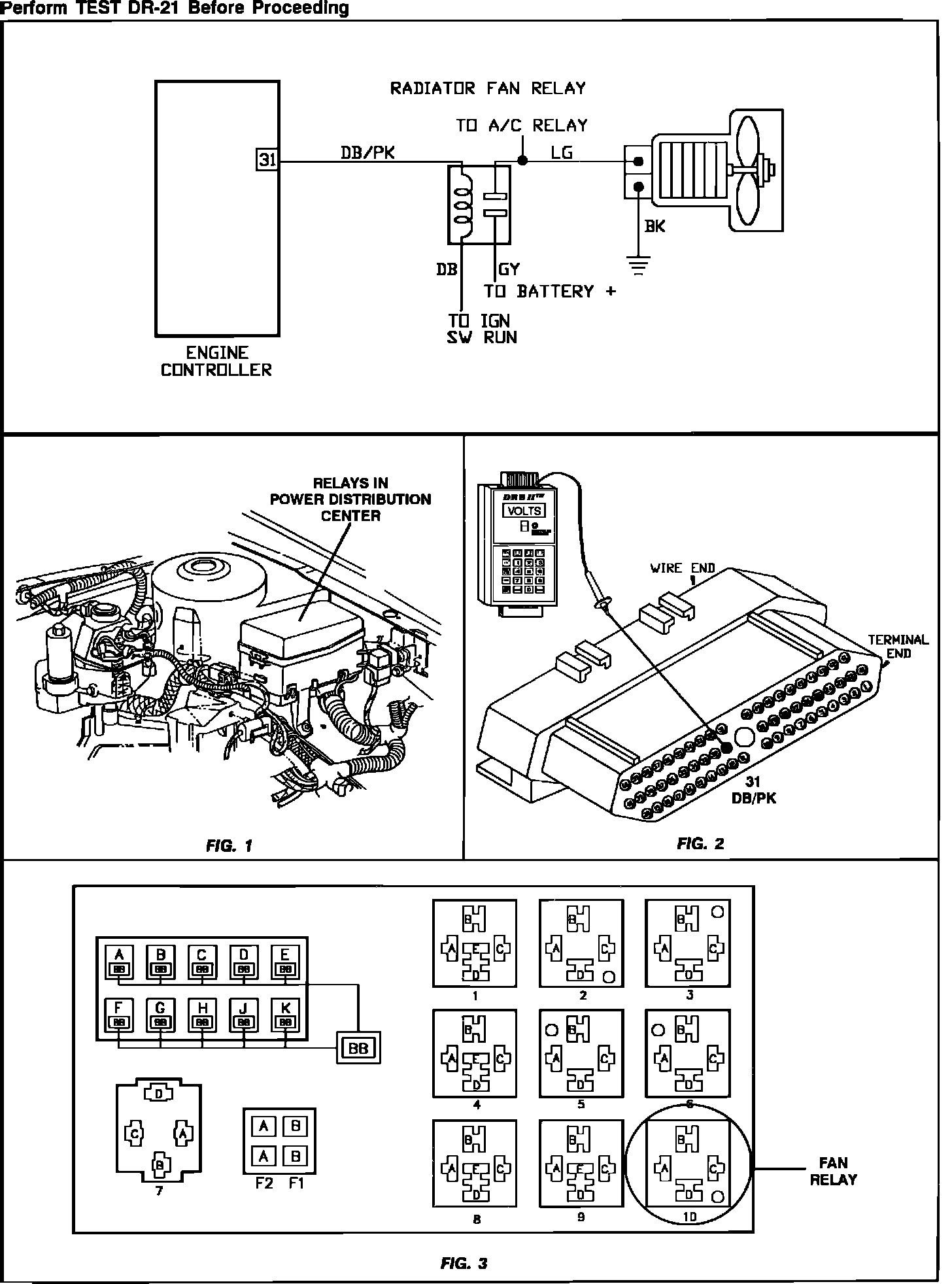

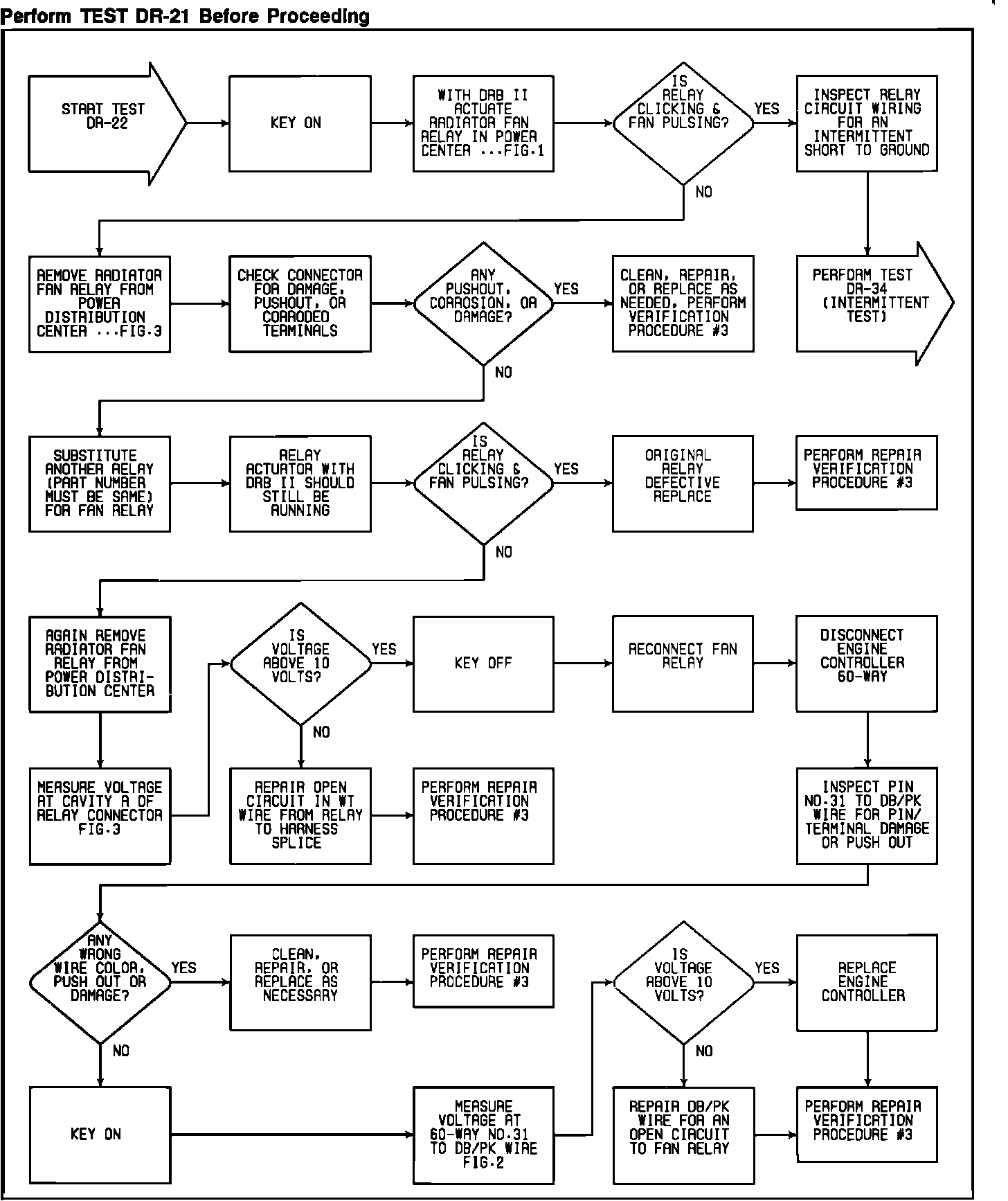

Test DR-22 - Repairing Fault "Radiator Fan Relay" (C Body):
Test DR-22 - Repairing Fault "Radiator Fan Relay" (C Body):
