DR-22 Repairing "EGR Solenoid Circuit" Fault (California)
DR-22 Repairing "EGR Solenoid Circuit" Fault (California)

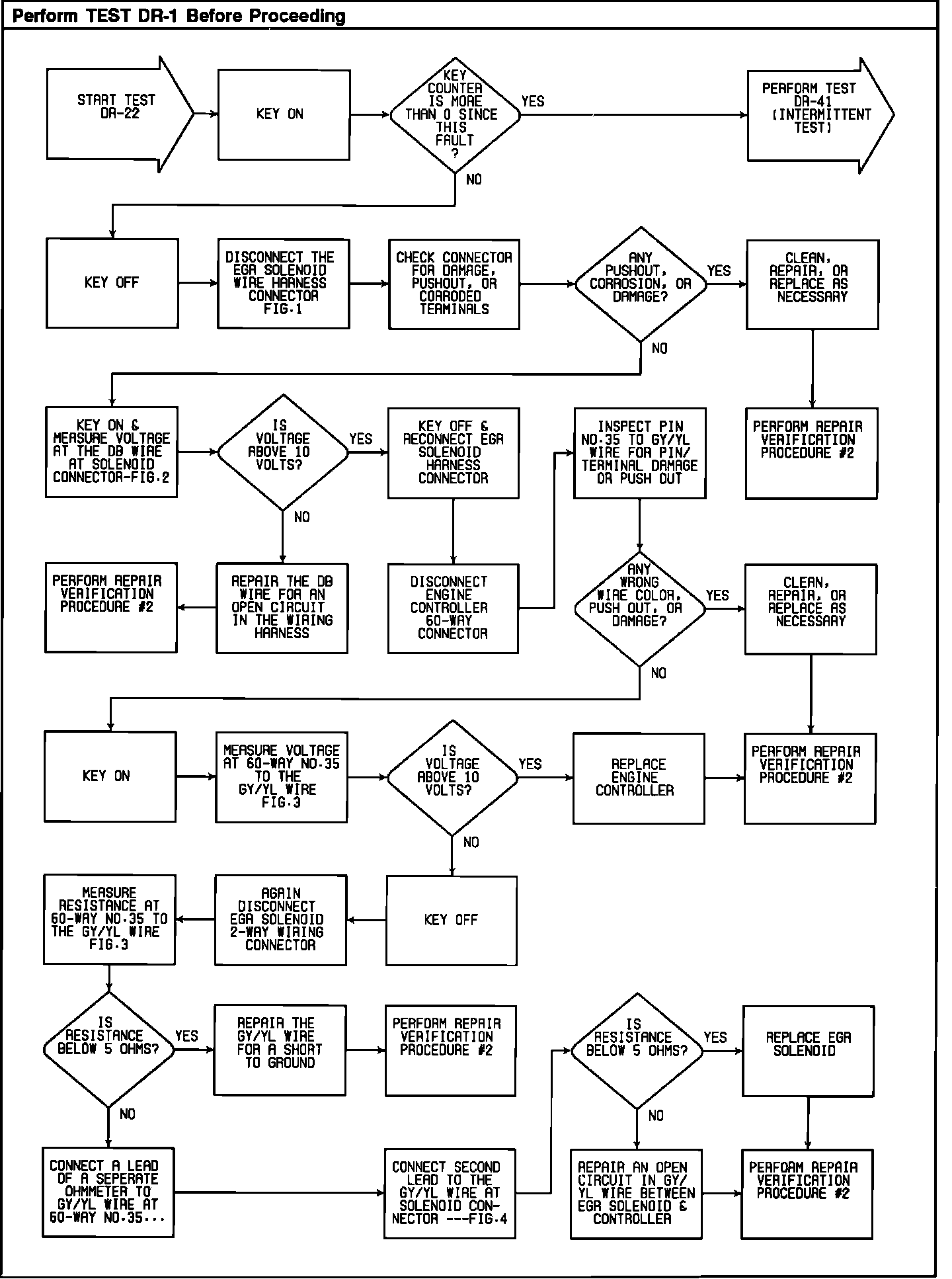

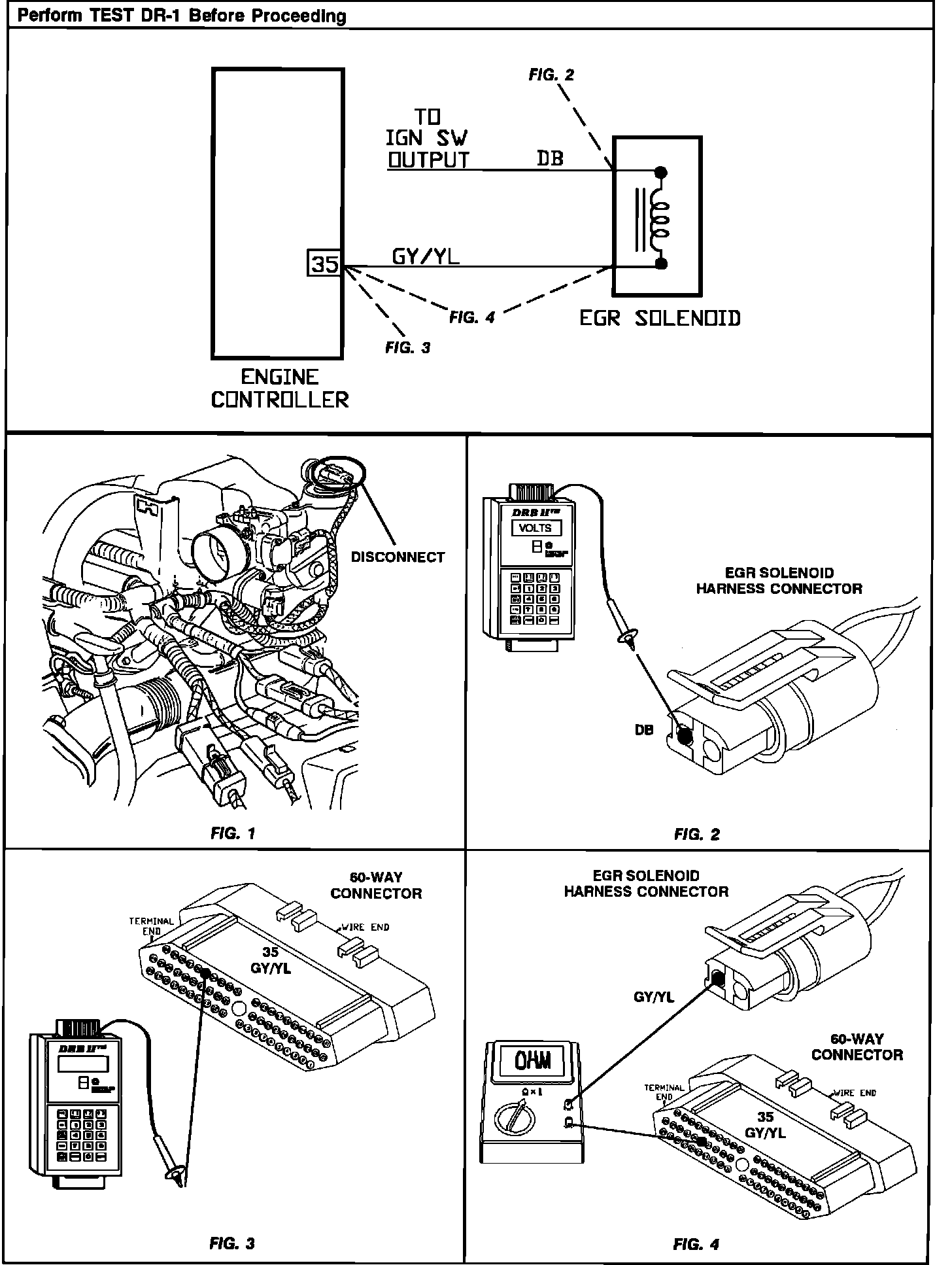

Test DR-22 - Repairing Fault "EGR Solenoid Circuit":
Test DR-22 - Repairing Fault "EGR Solenoid Circuit":
