Part 2 of 3

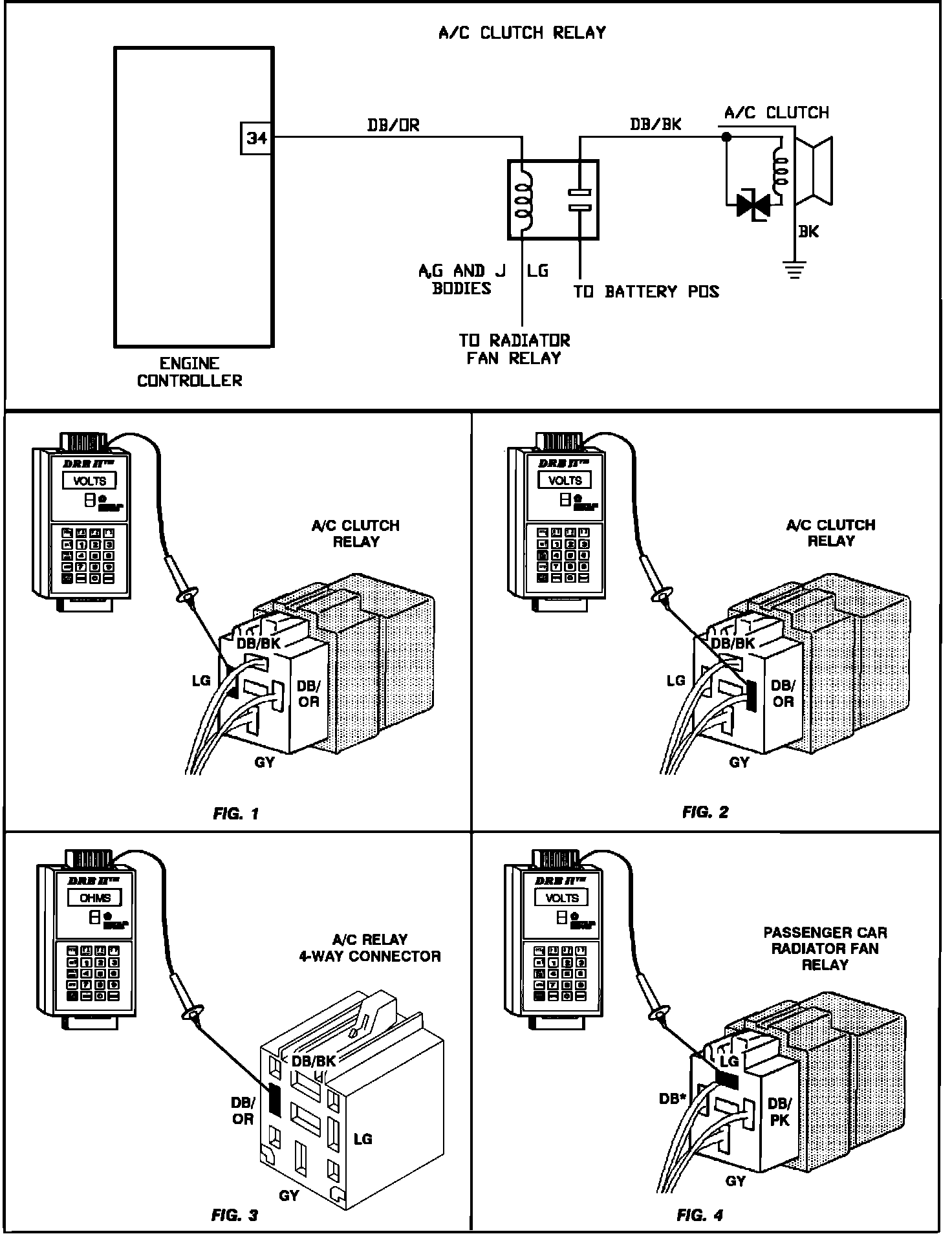

Test DR-22 - Repairing Fault "A/C Clutch Relay Circuit":

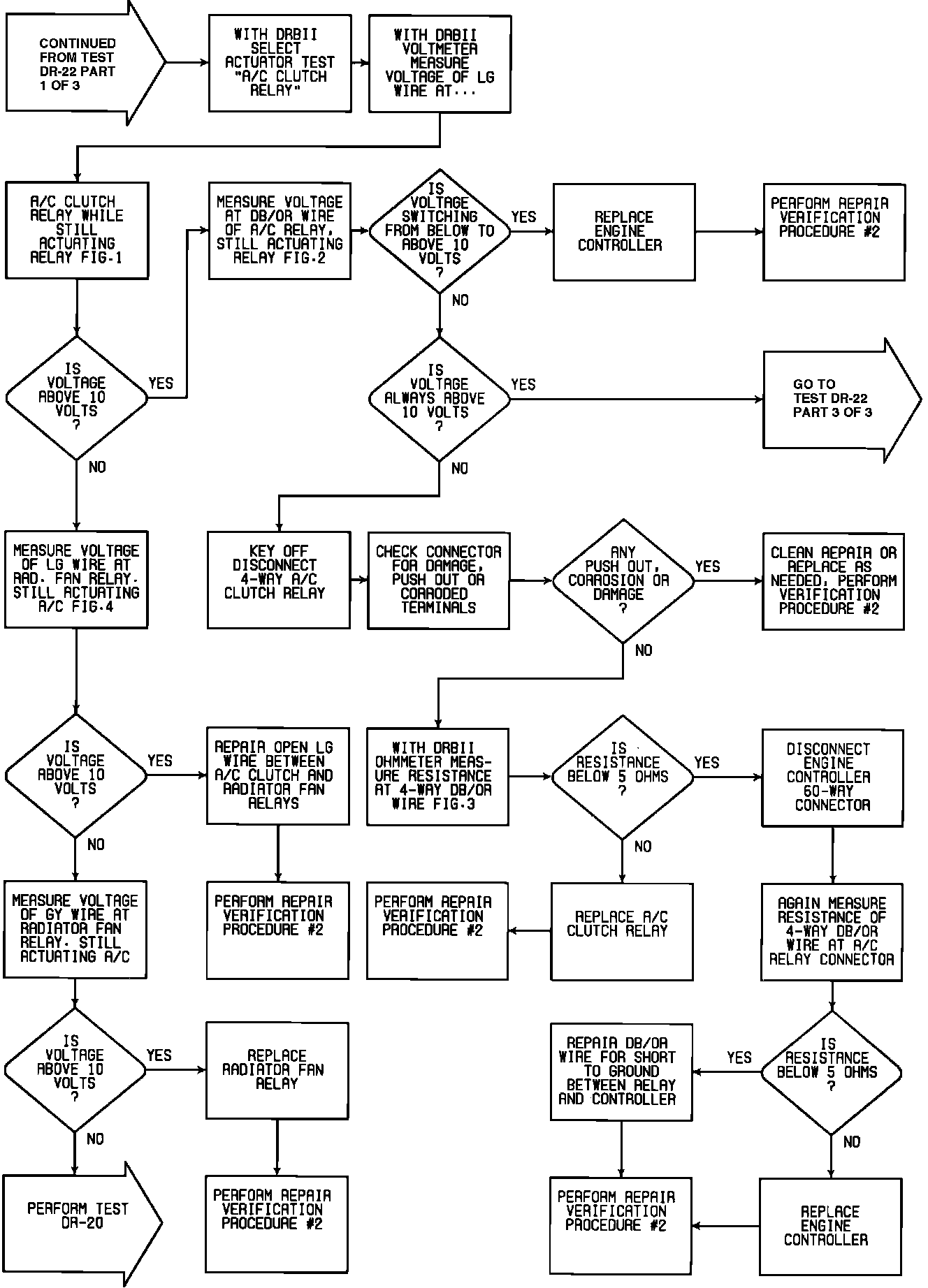

Test DR-22 - Repairing Fault "A/C Clutch Relay Circuit":
