DR-20 Repairing "Inj 3 Control CKT" Fault
DR-20 Repairing "Inj 3 Control CKT" Fault
Test DR-20 - Repairing Fault "Injector 3 Control Circuit":

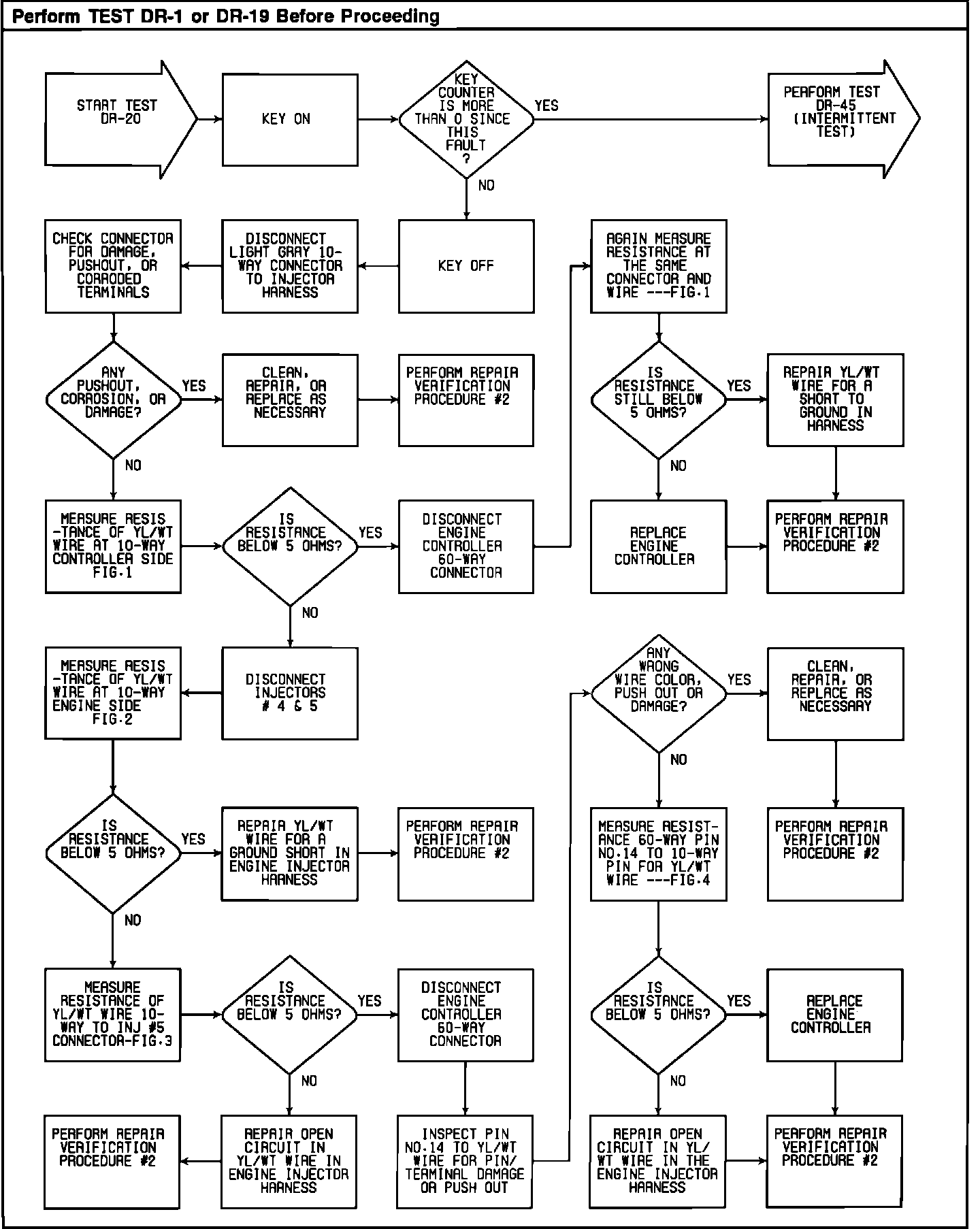

Test DR-20 - Repairing Fault "Injector 3 Control Circuit":
