DR-20 Repairing "A/C Clutch Relay CKT" Fault

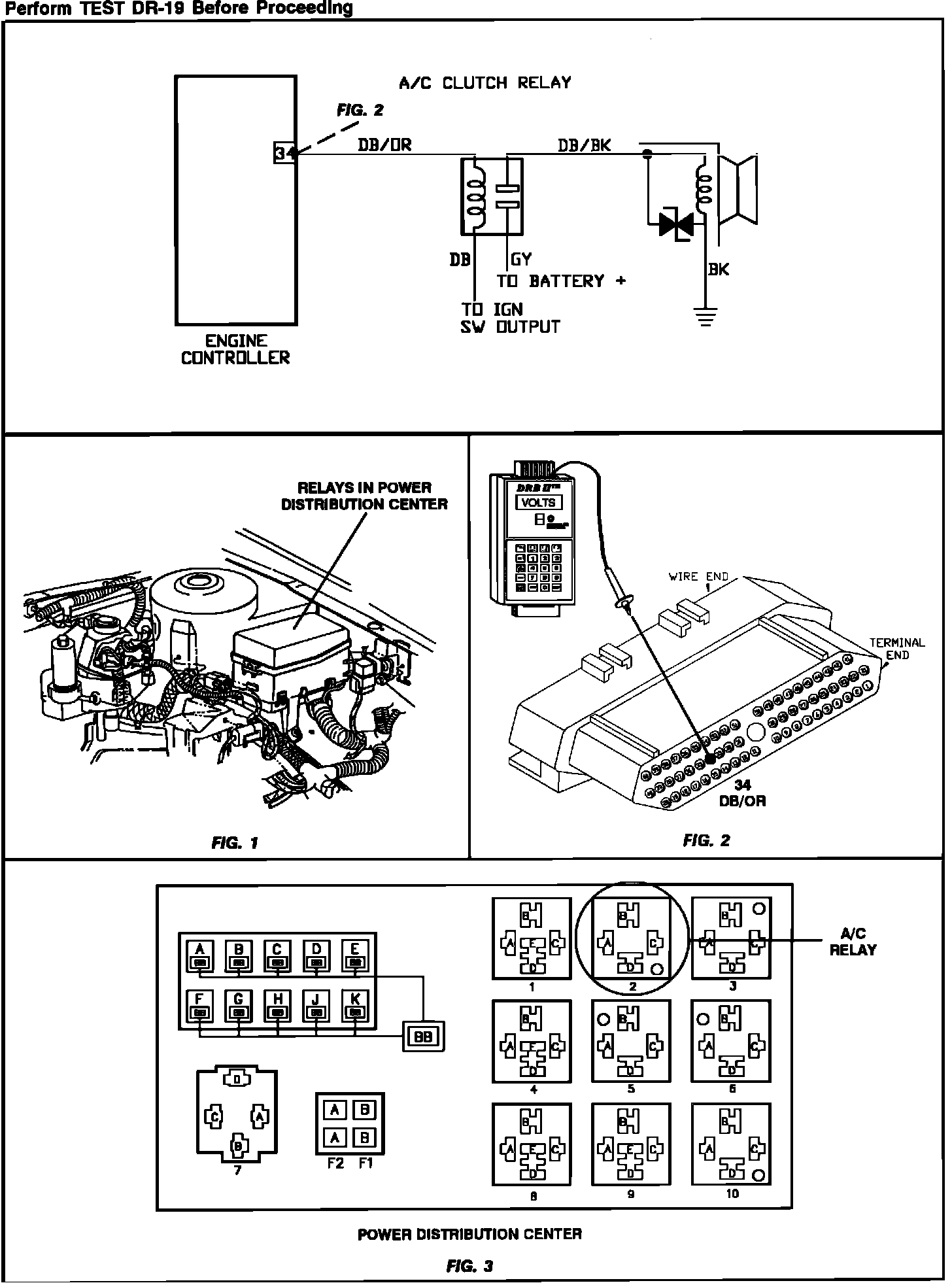

Test DR-20 - Repairing Fault "A/C Clutch Relay CKT" (C Body):

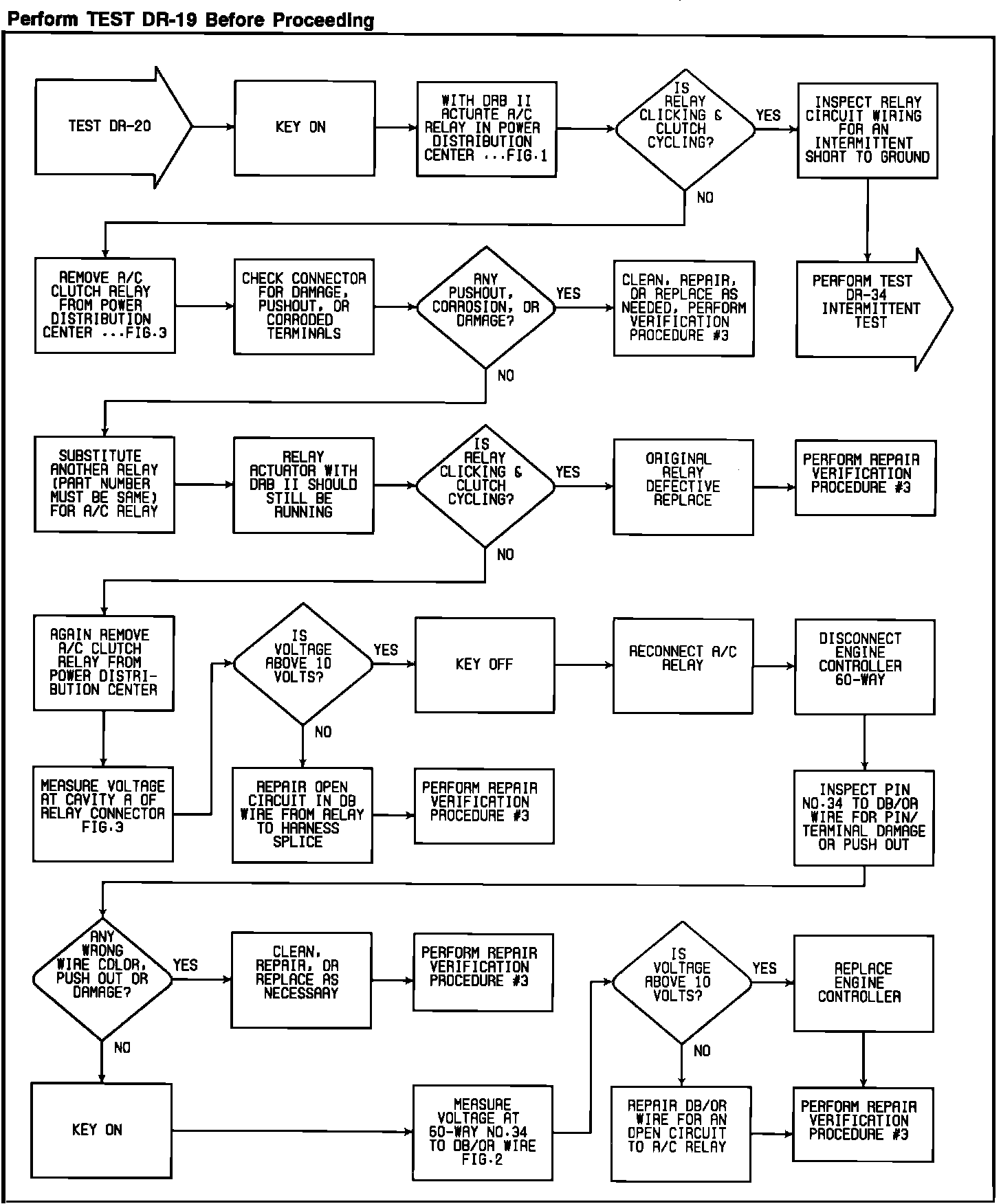

Test DR-20 - Repairing Fault "A/C Clutch Relay CKT" (C Body):
