DR-2 Repairing "MAP Pneumatic Signal" Fault

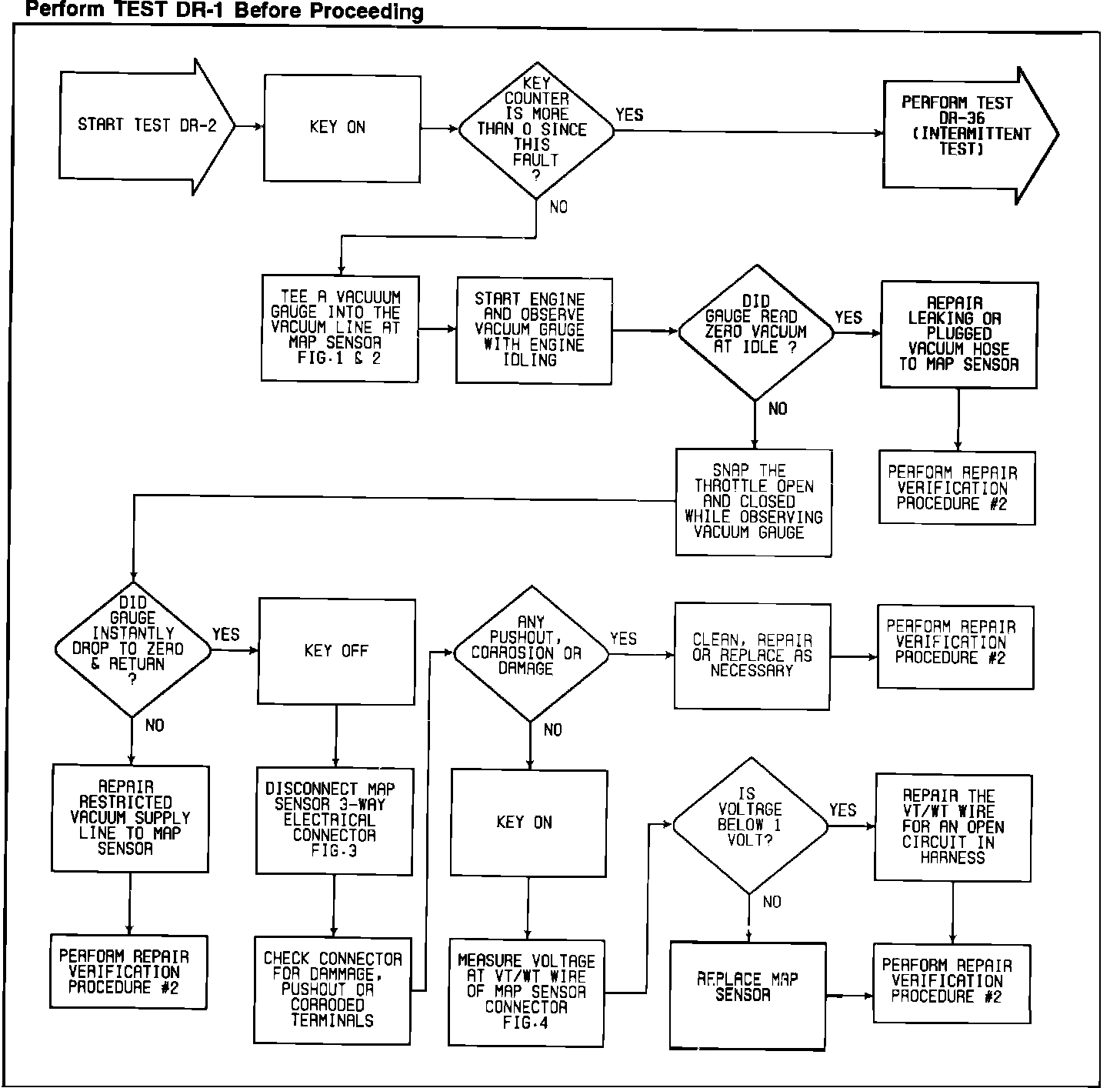

Test DR-2 - Repairing Fault "MAP Pneumatic Signal":

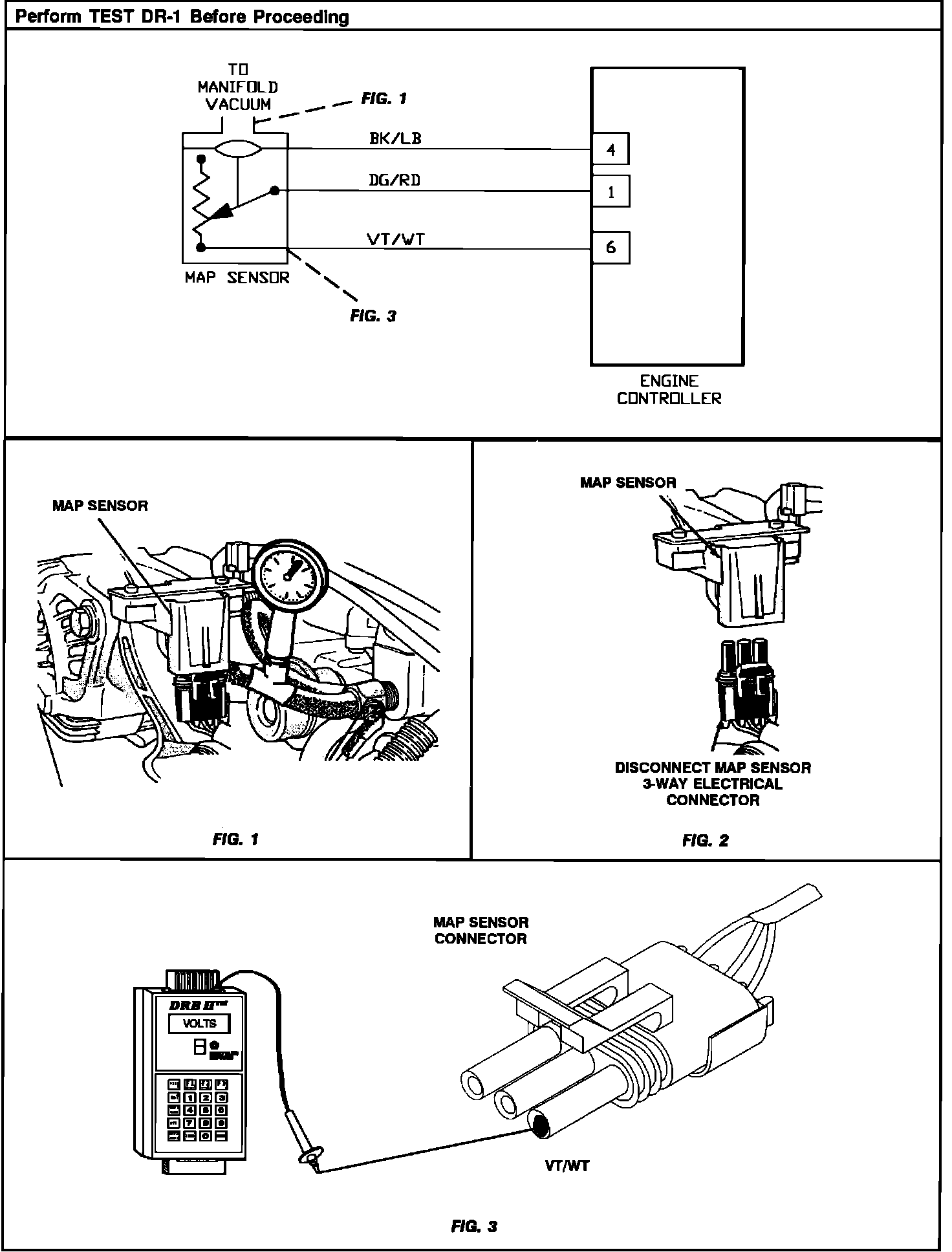

Test DR-2 - Repairing Fault "MAP Pneumatic Signal":

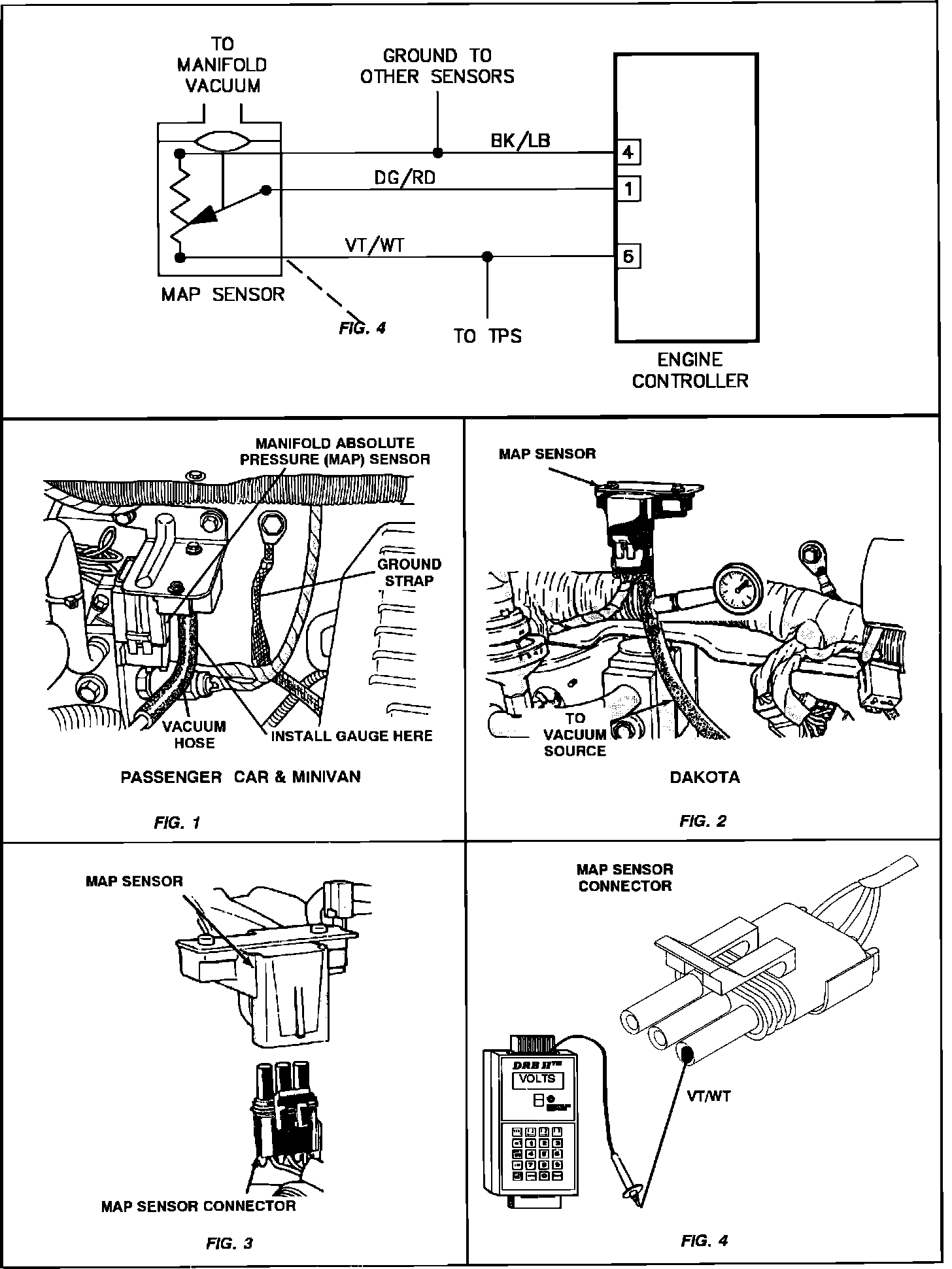

Test DR-2 - Repairing Fault "MAP Pneumatic Signal":

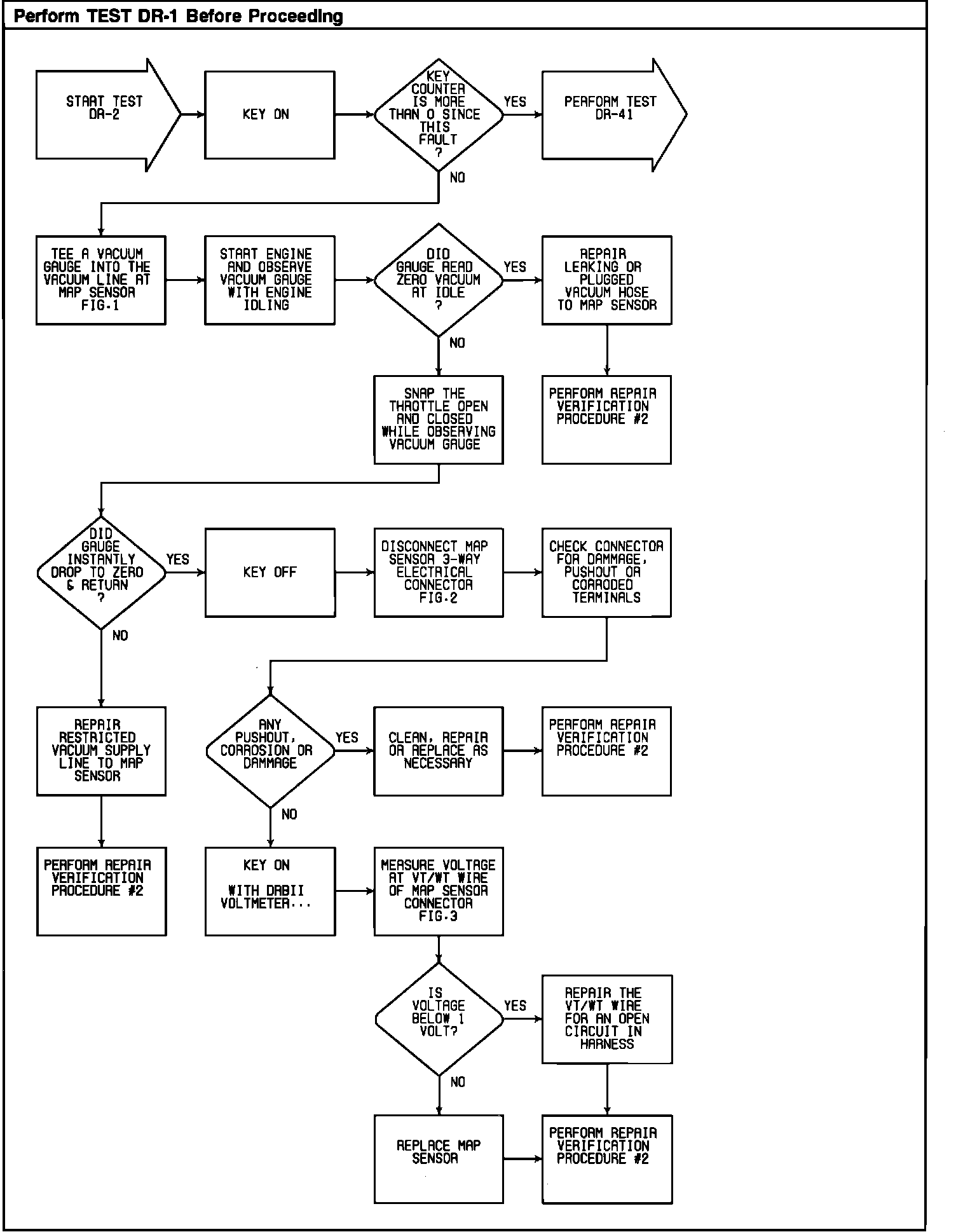

Test DR-2 - Repairing Fault "MAP Pneumatic Signal":
