DR-2 Repairing "MAP Pneumatic Change" Fault
DR-2 Repairing "MAP Pneumatic Change" Fault

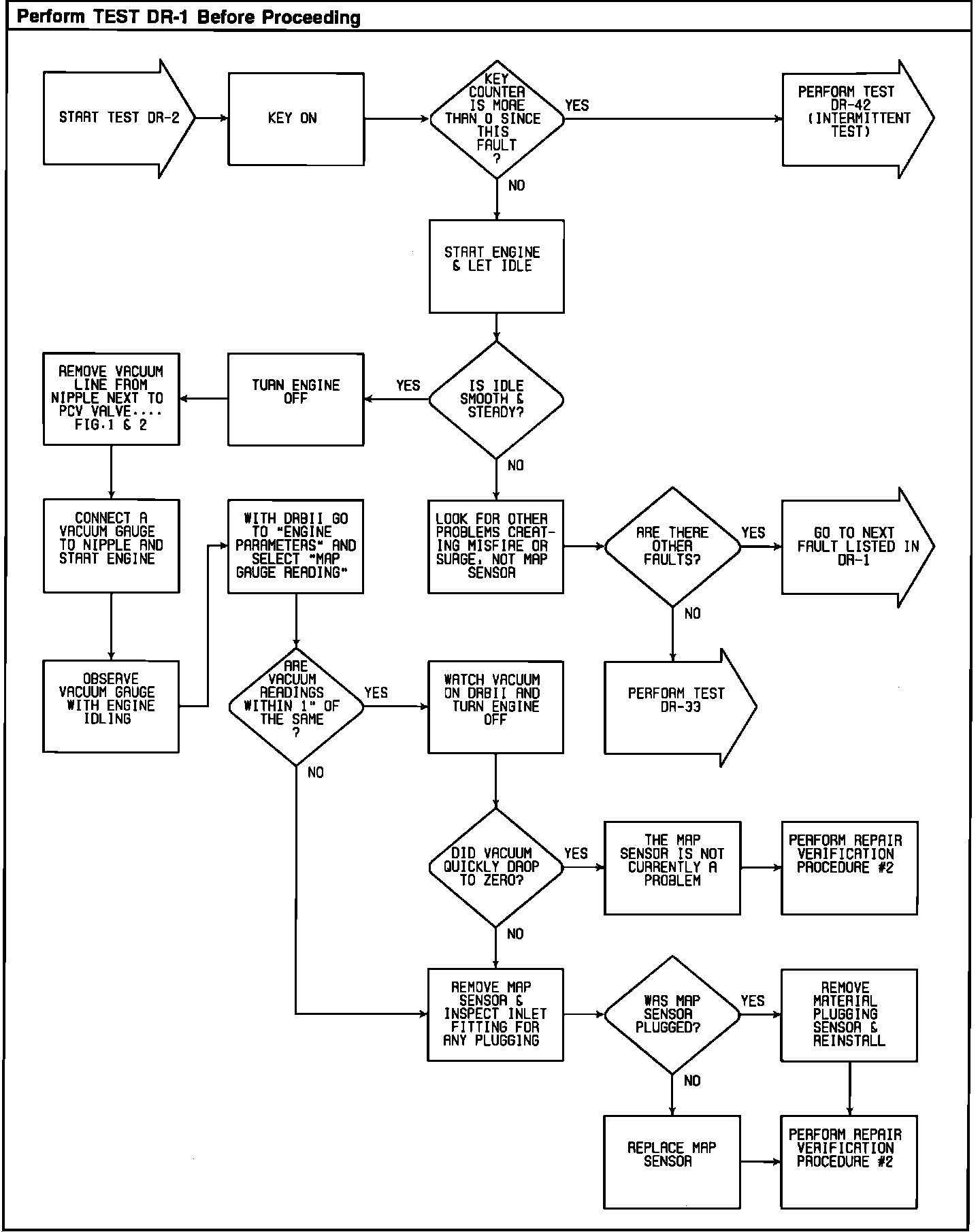

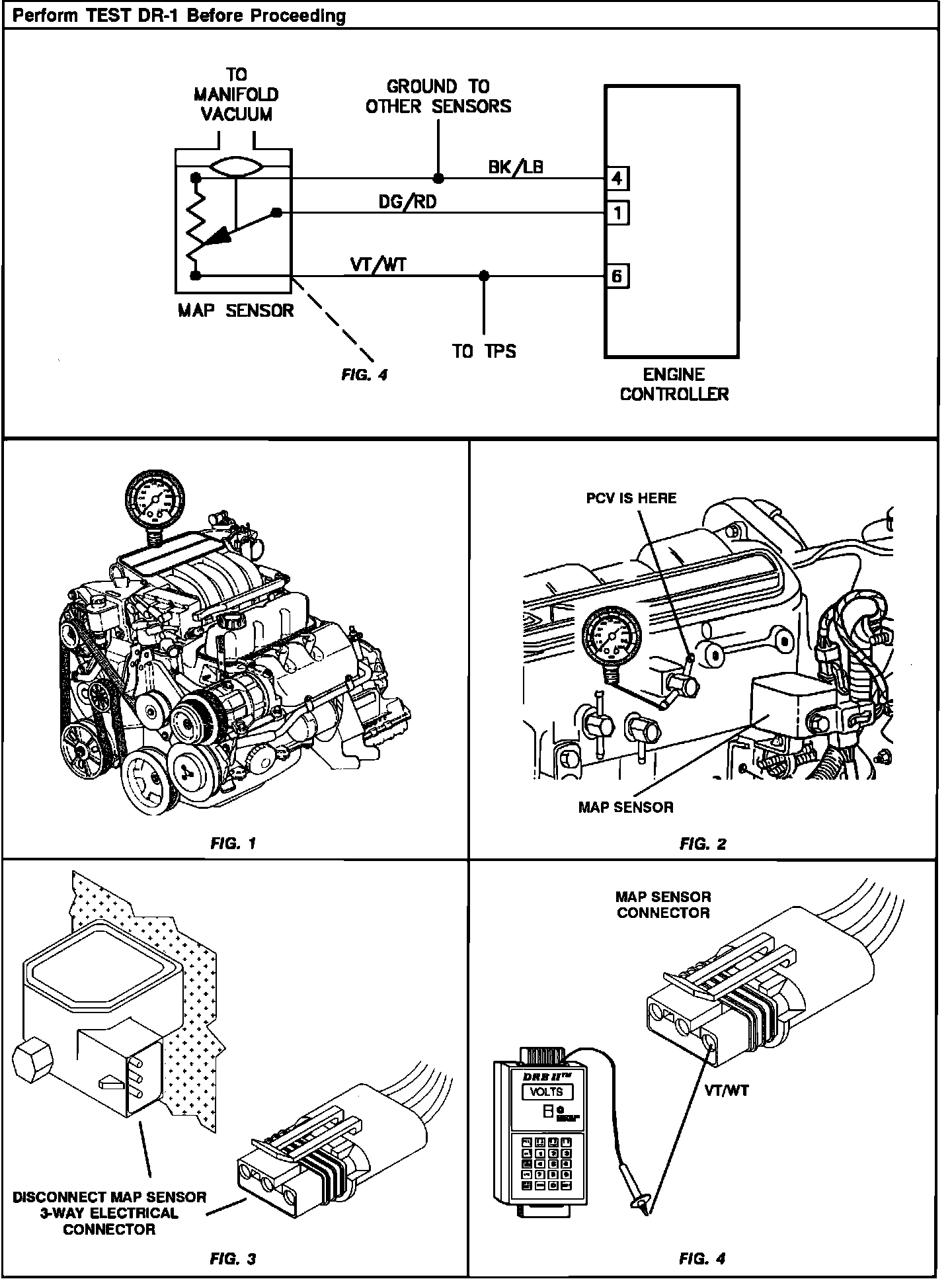

Test DR-2 - Repairing Fault "MAP Pneumatic Change":
Test DR-2 - Repairing Fault "MAP Pneumatic Change":
