Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-19 Repairing "EGR Systems Failure" Fault >> Part 1 of 2

Part 1 of 2

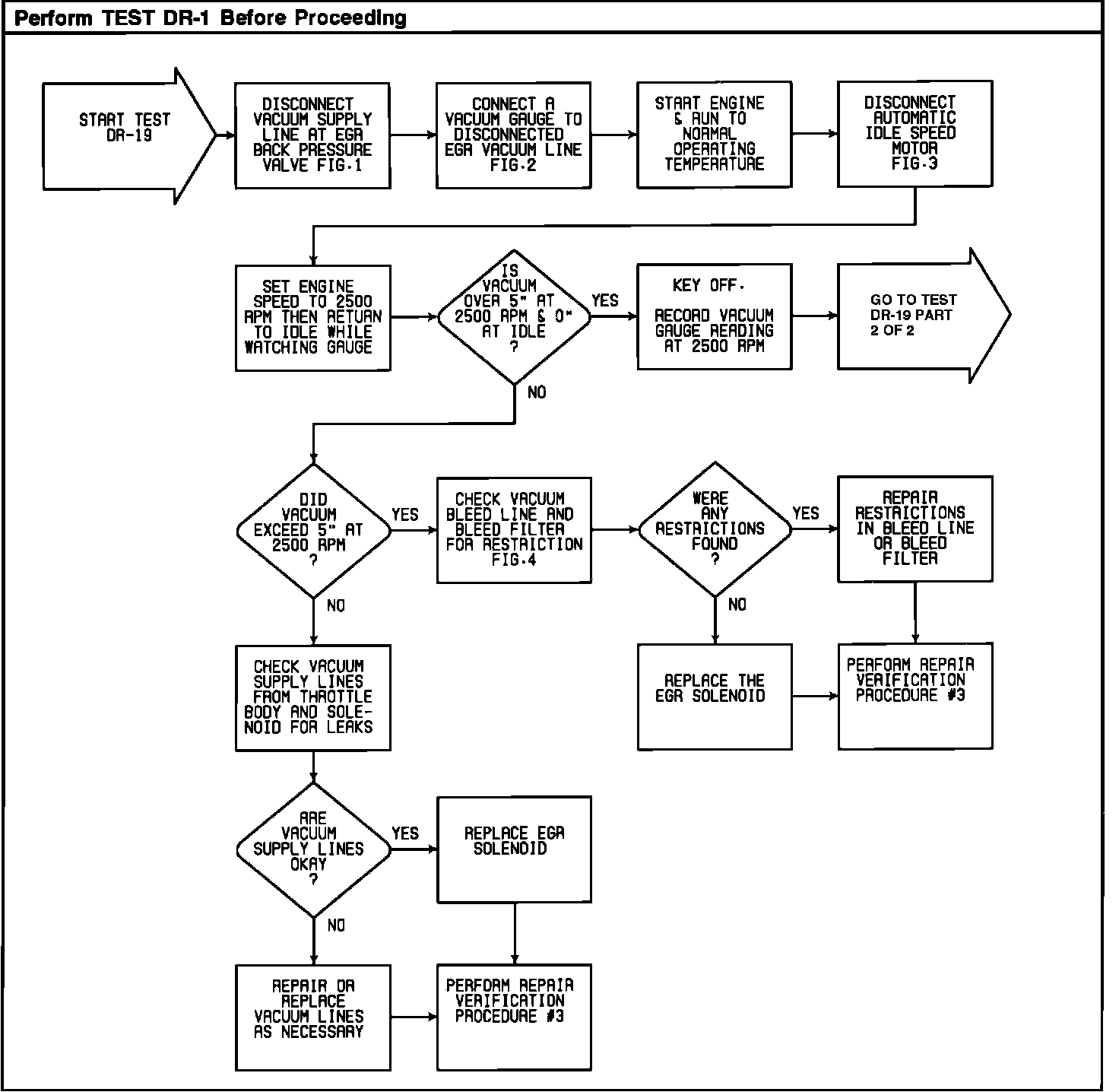

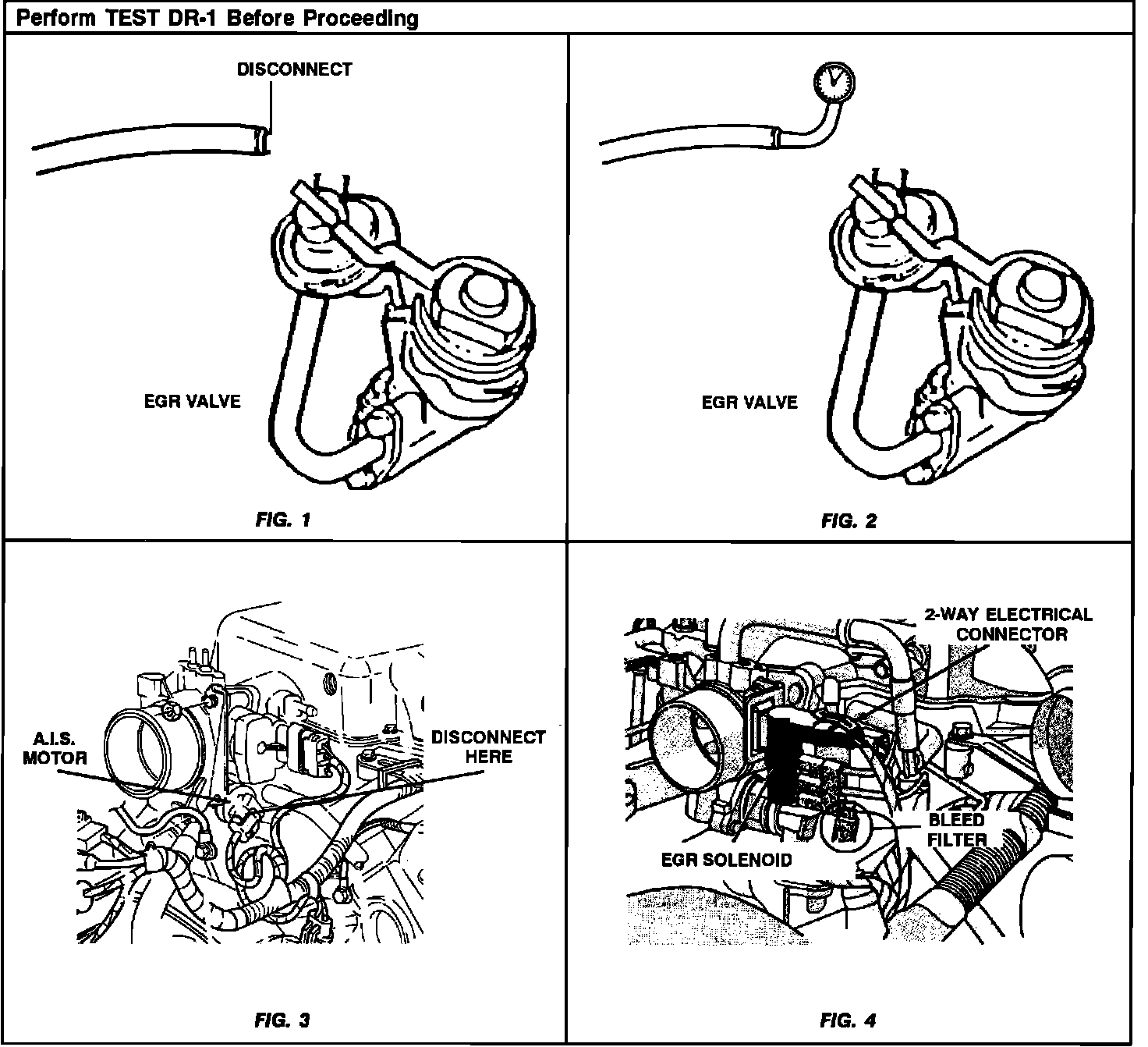

Test DR-19 - Repairing Fault "EGR System Failure":



Test DR-19 - Repairing Fault "EGR System Failure":
