Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-19 Repairing "A/C Clutch Relay CKT" Fault >> Part 1 of 2

Part 1 of 2

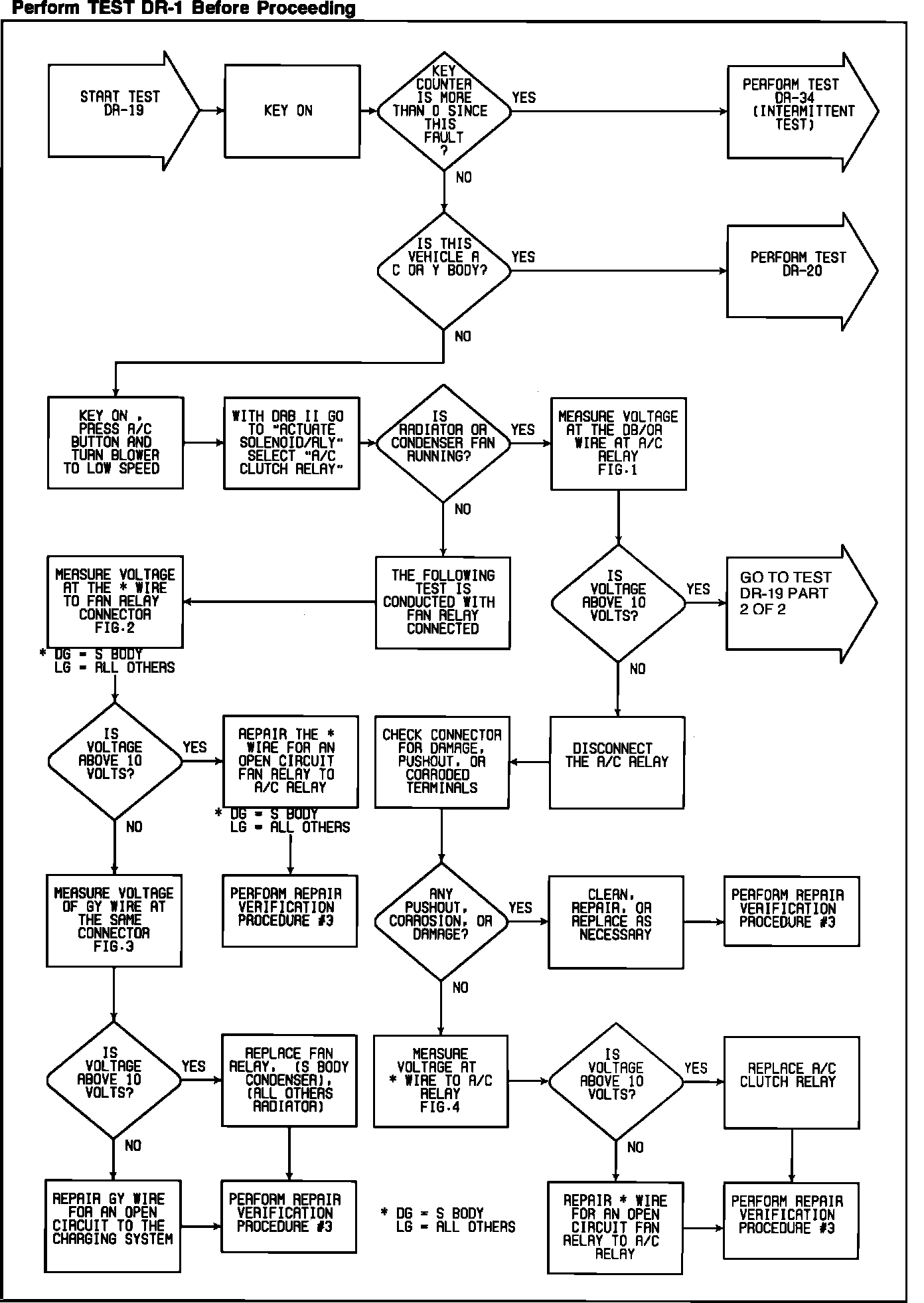

Test DR-19 - Repairing Fault "A/C Clutch Relay CKT":

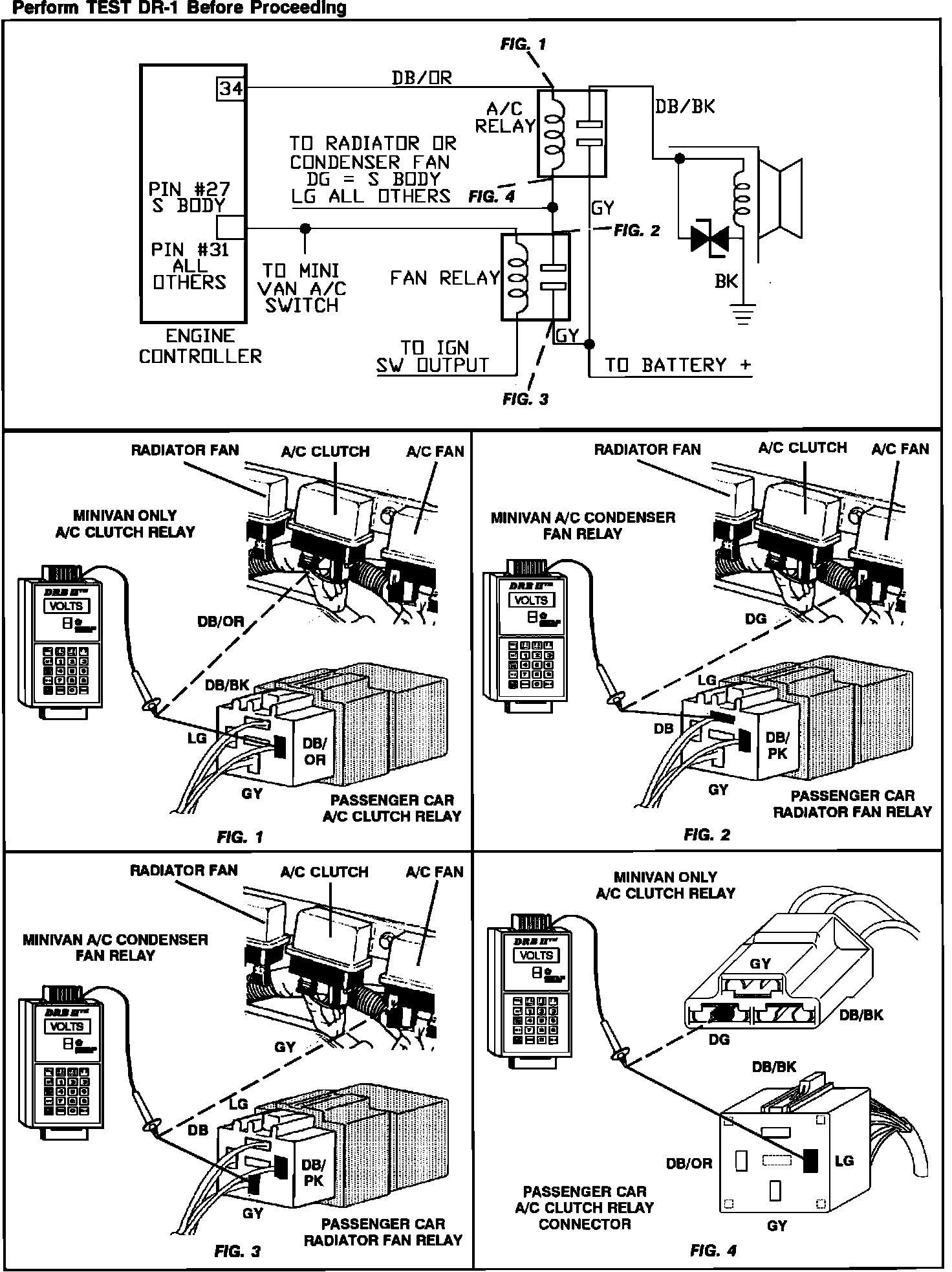

Test DR-19 - Repairing Fault "A/C Clutch Relay CKT":
