DR-18 Repairing "Inj 2 Control CKT" Fault
DR-18 Repairing "Inj 2 Control CKT" Fault

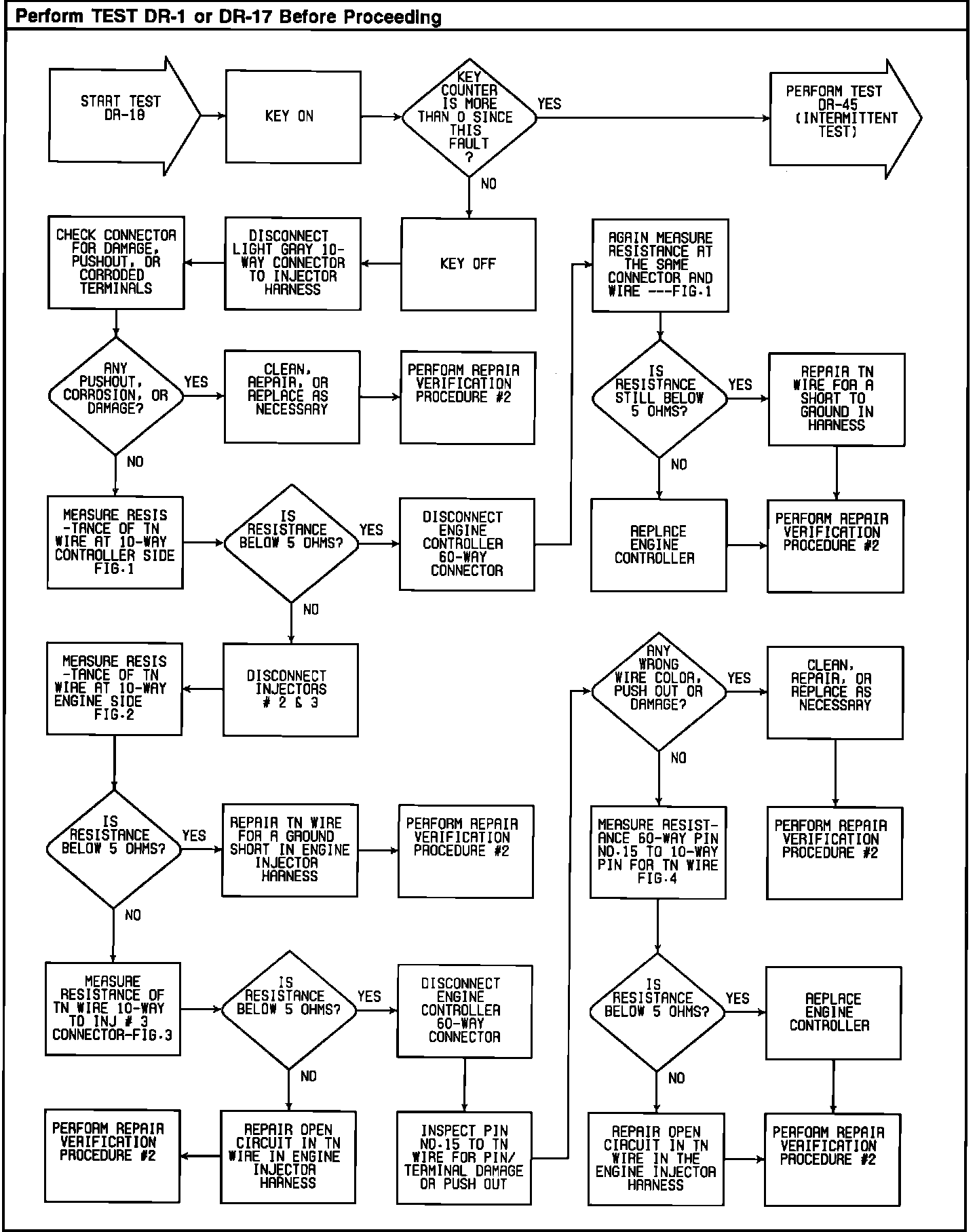

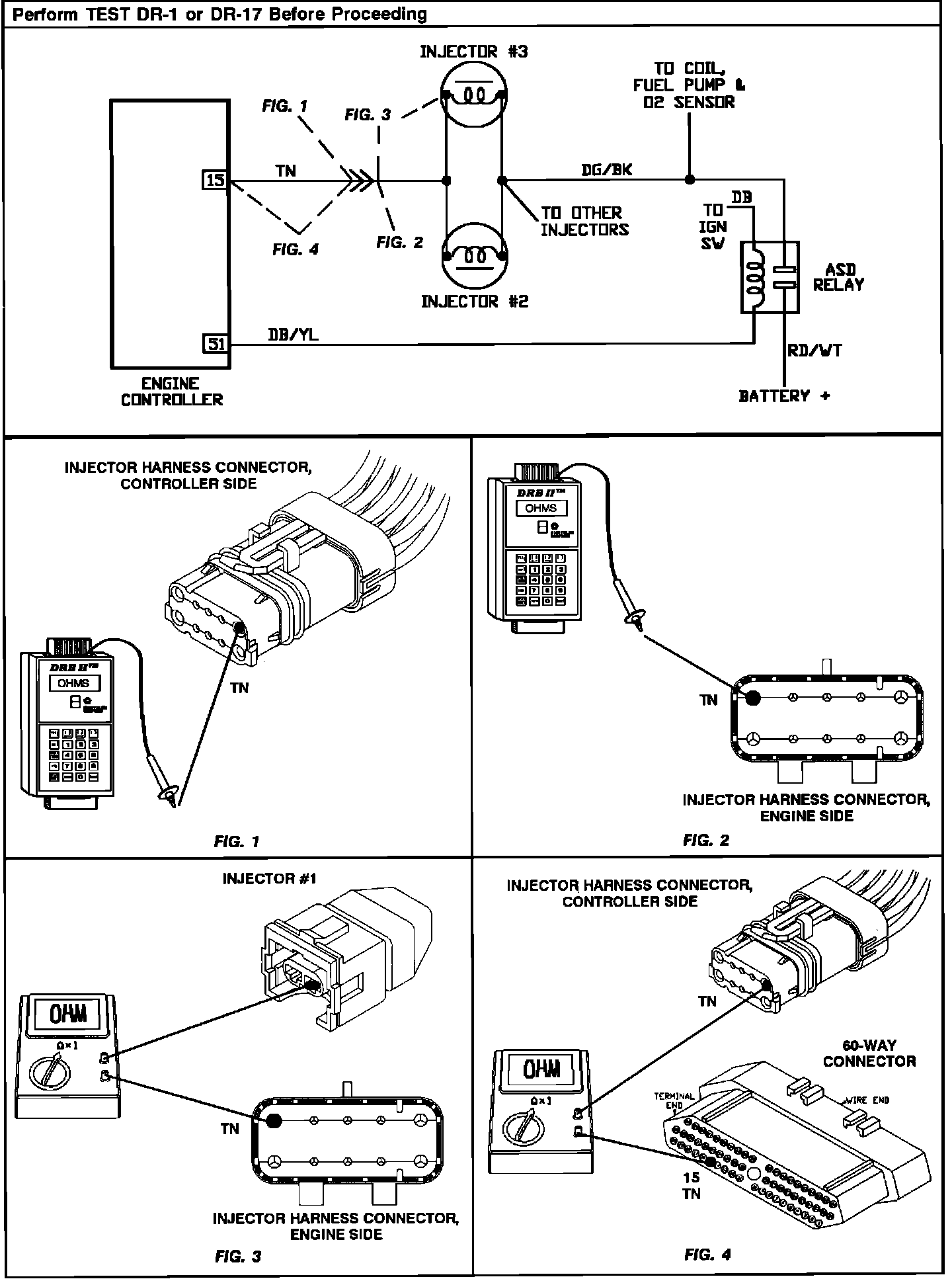

Test DR-18 - Repairing Fault "Injector 2 Control Circuit":
Test DR-18 - Repairing Fault "Injector 2 Control Circuit":
