Imperial V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Driveability (DR) Tests
>>
DR-18 Repairing "EGR Solenoid" Fault
DR-18 Repairing "EGR Solenoid" Fault

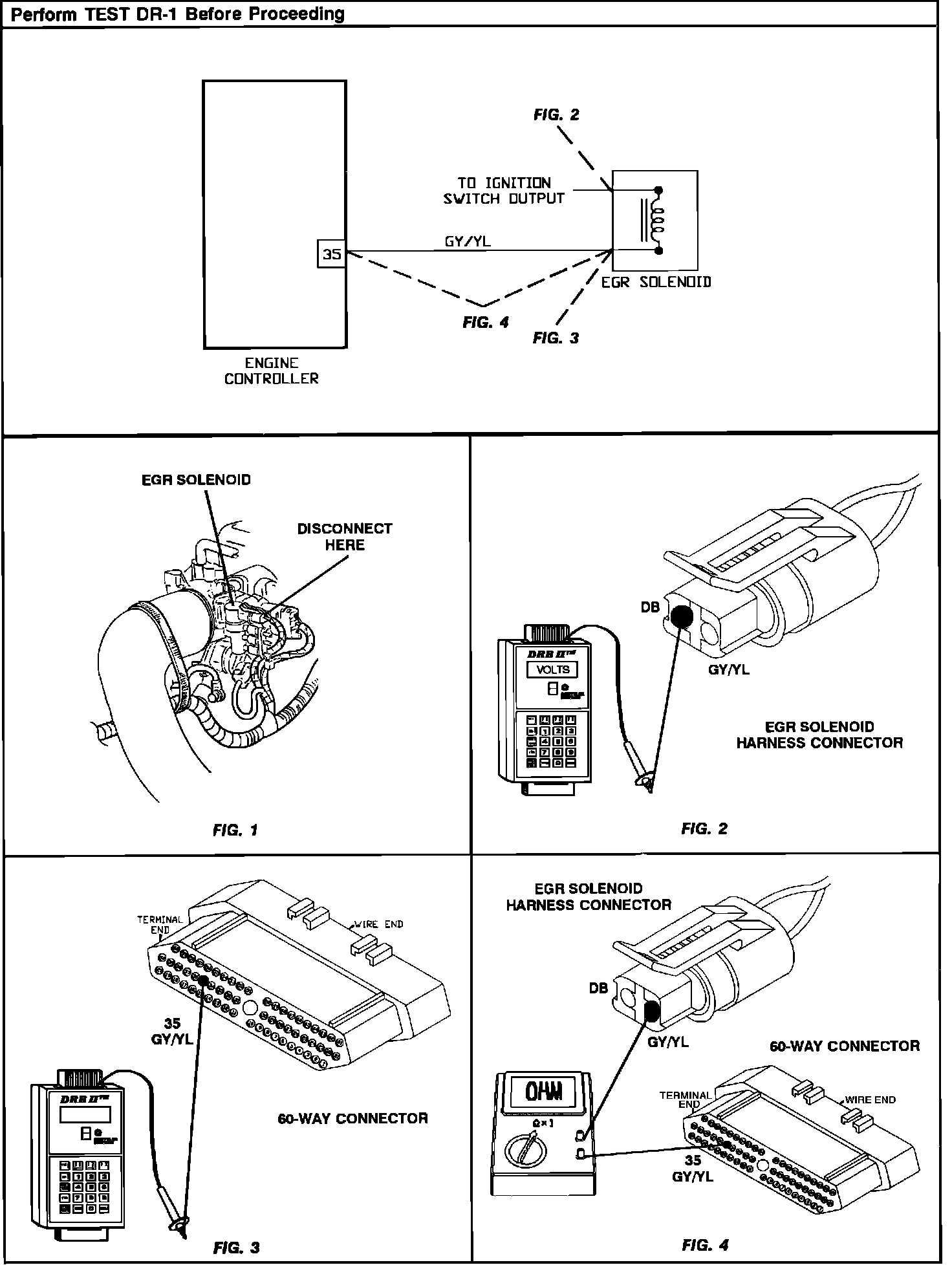

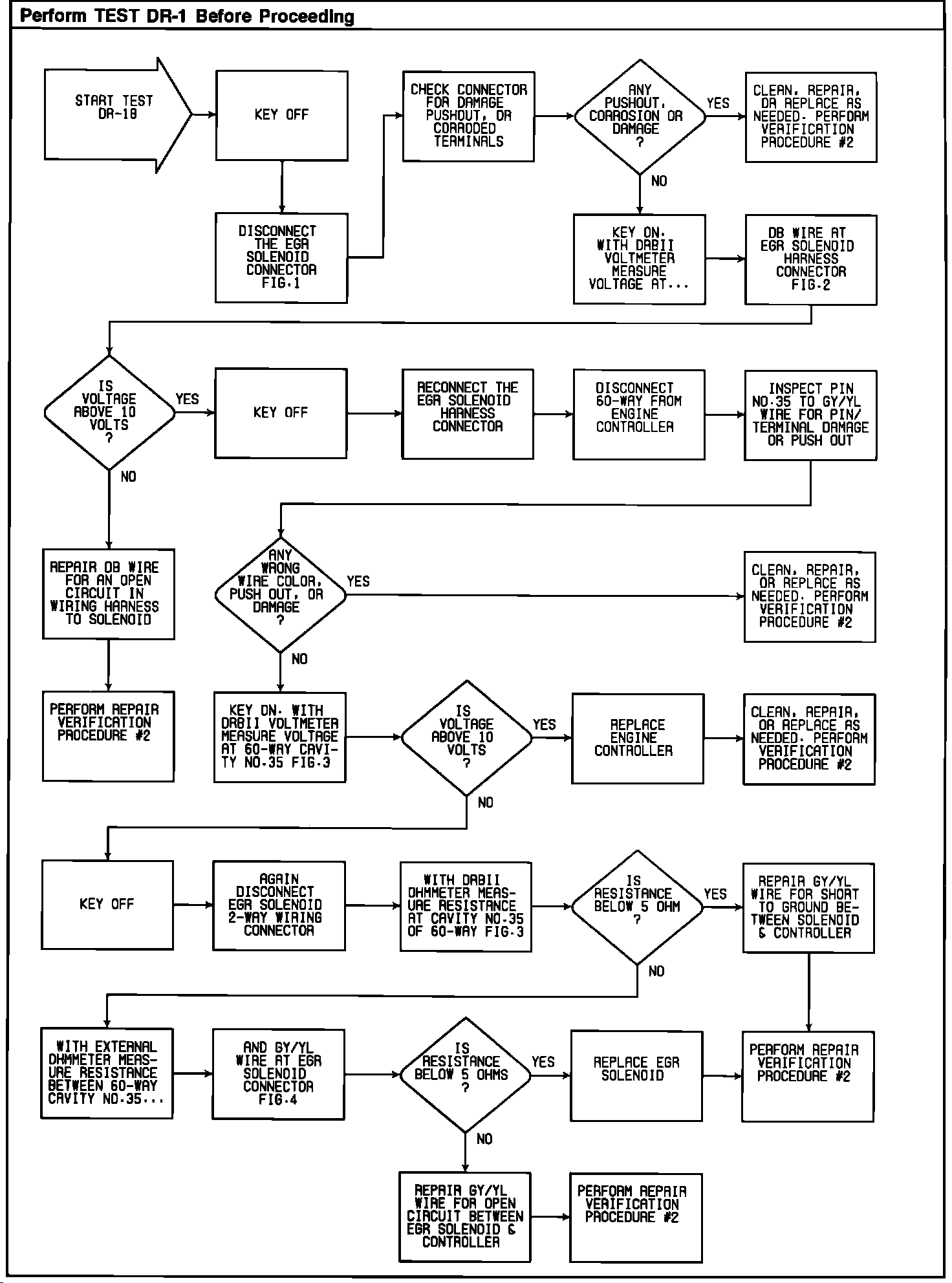

Test DR-18 - Repairing Fault "EGR Solenoid":
Test DR-18 - Repairing Fault "EGR Solenoid":
