DR-17 Repairing "EGR Solenoid Circuit" Fault
DR-17 Repairing "EGR Solenoid Circuit" Fault

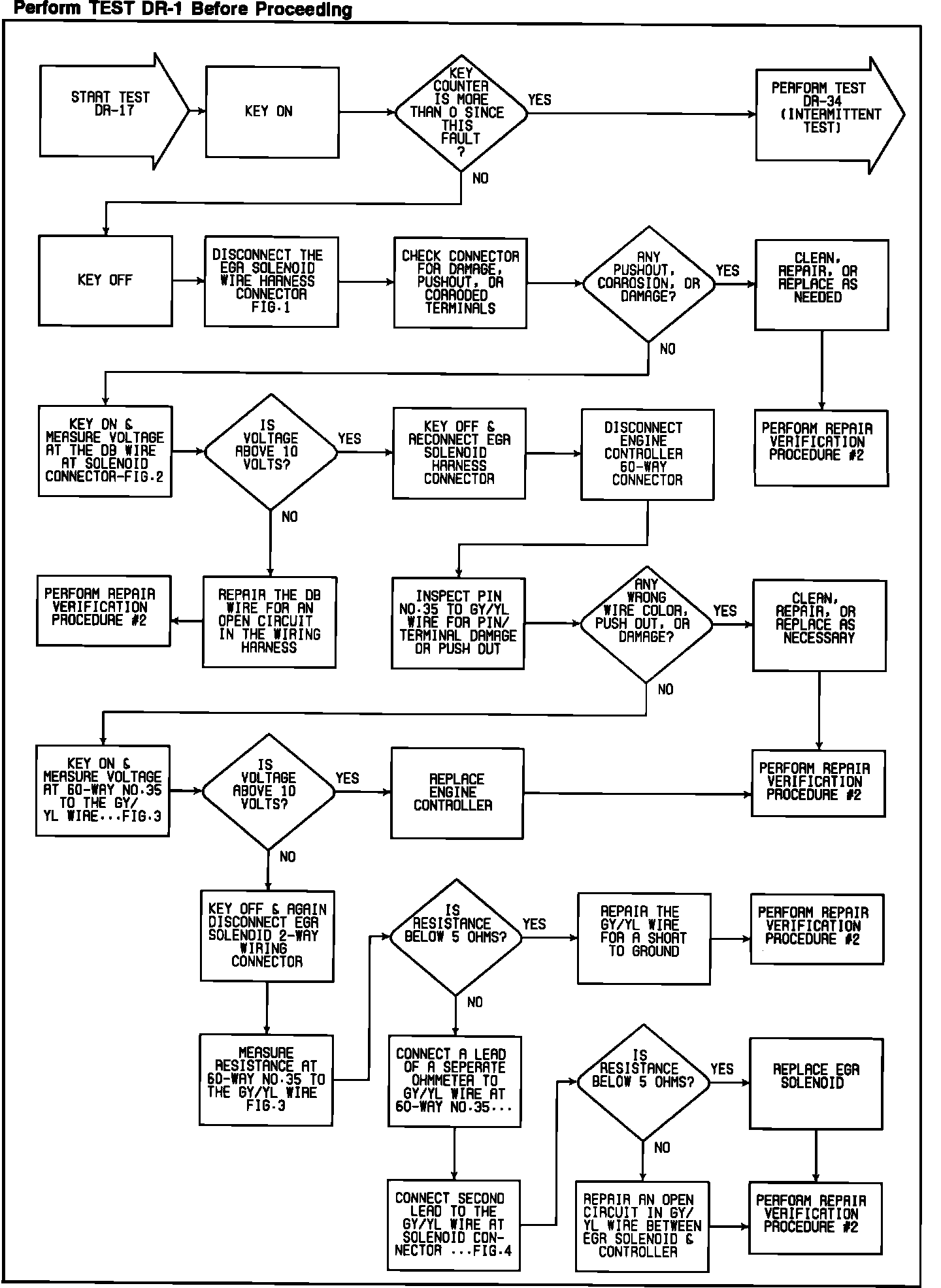

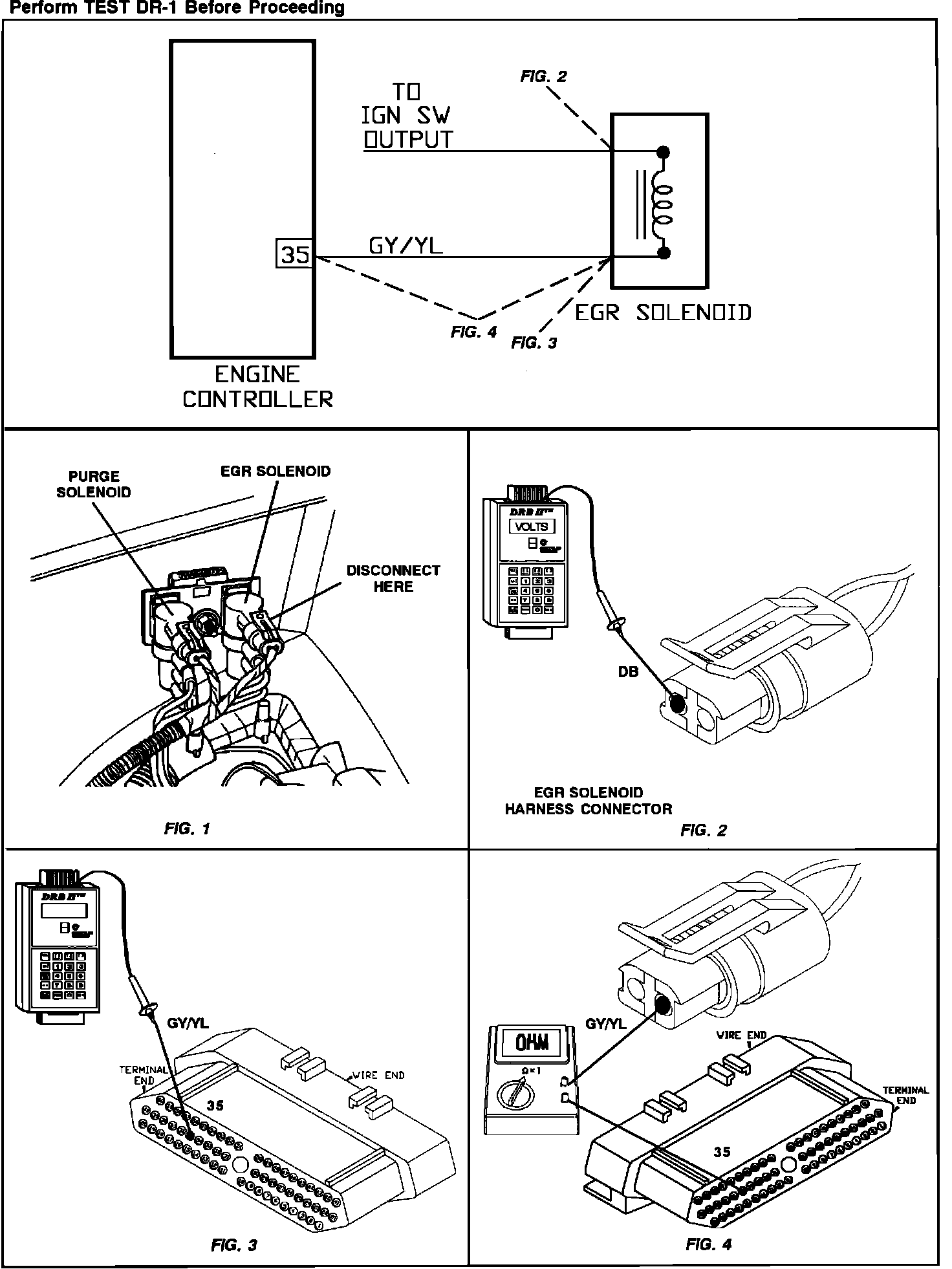

Test DR-17 - Repairing Fault "EGR Solenoid Circuit":
Test DR-17 - Repairing Fault "EGR Solenoid Circuit":
