Imperial V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Driveability (DR) Tests
>>
DR-15 Repairing "Inj 1 Peak Current" Fault
DR-15 Repairing "Inj 1 Peak Current" Fault

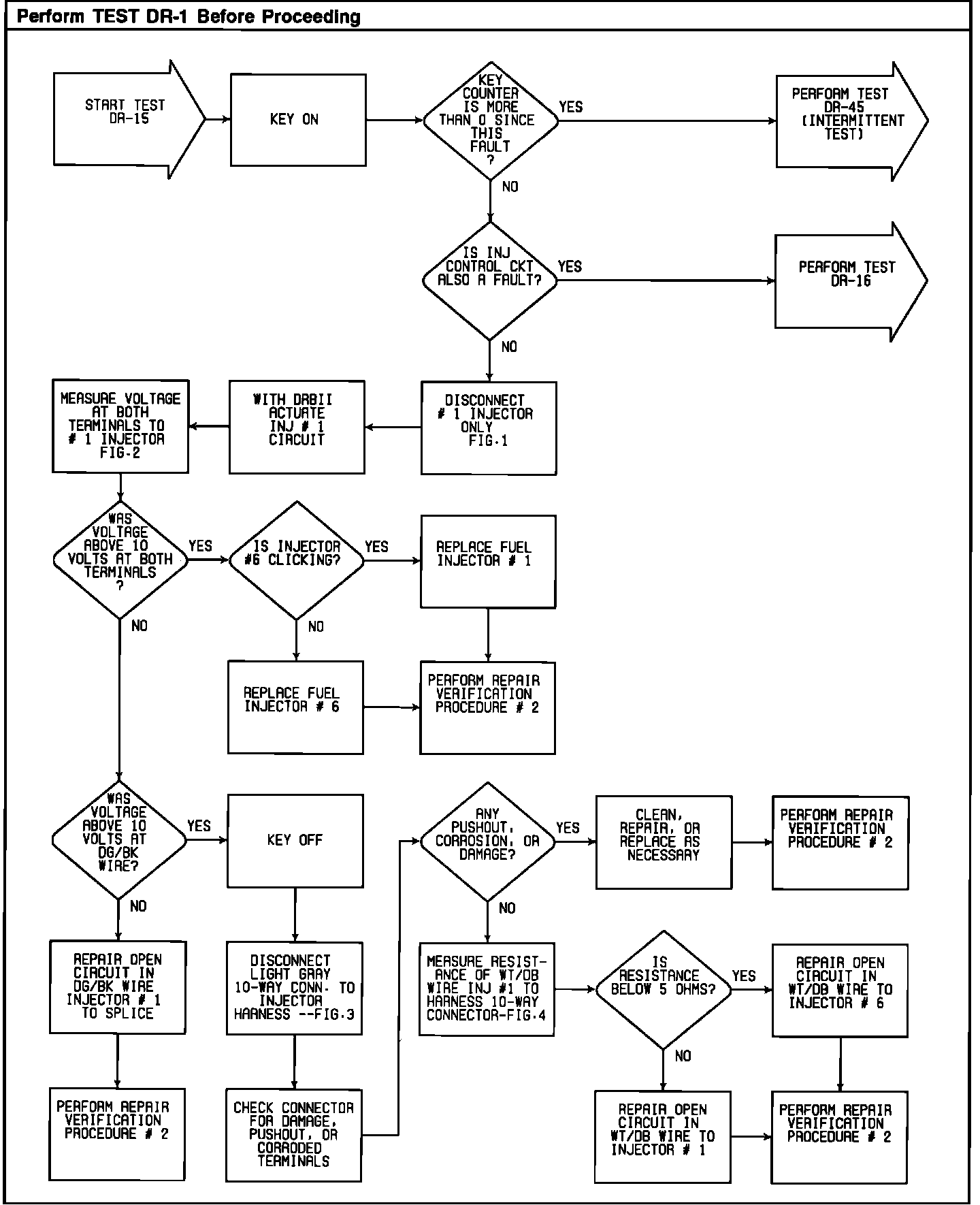

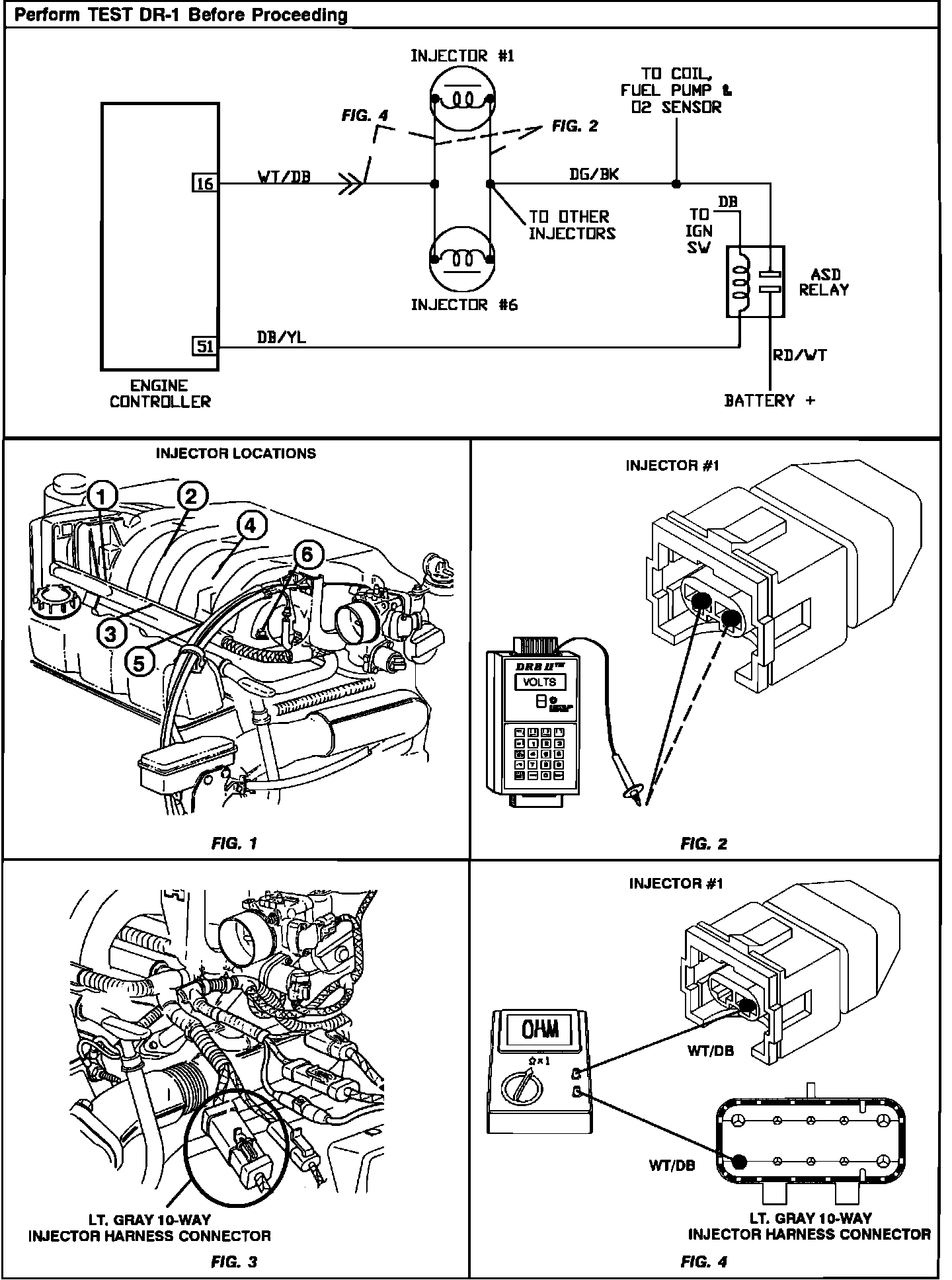

Test DR-15 - Repairing Fault "Injector 1 Peak Current":
Test DR-15 - Repairing Fault "Injector 1 Peak Current":
