Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-15 Repairing "AIS Motor Circuits" Fault >> Part 1 of 2

Part 1 of 2

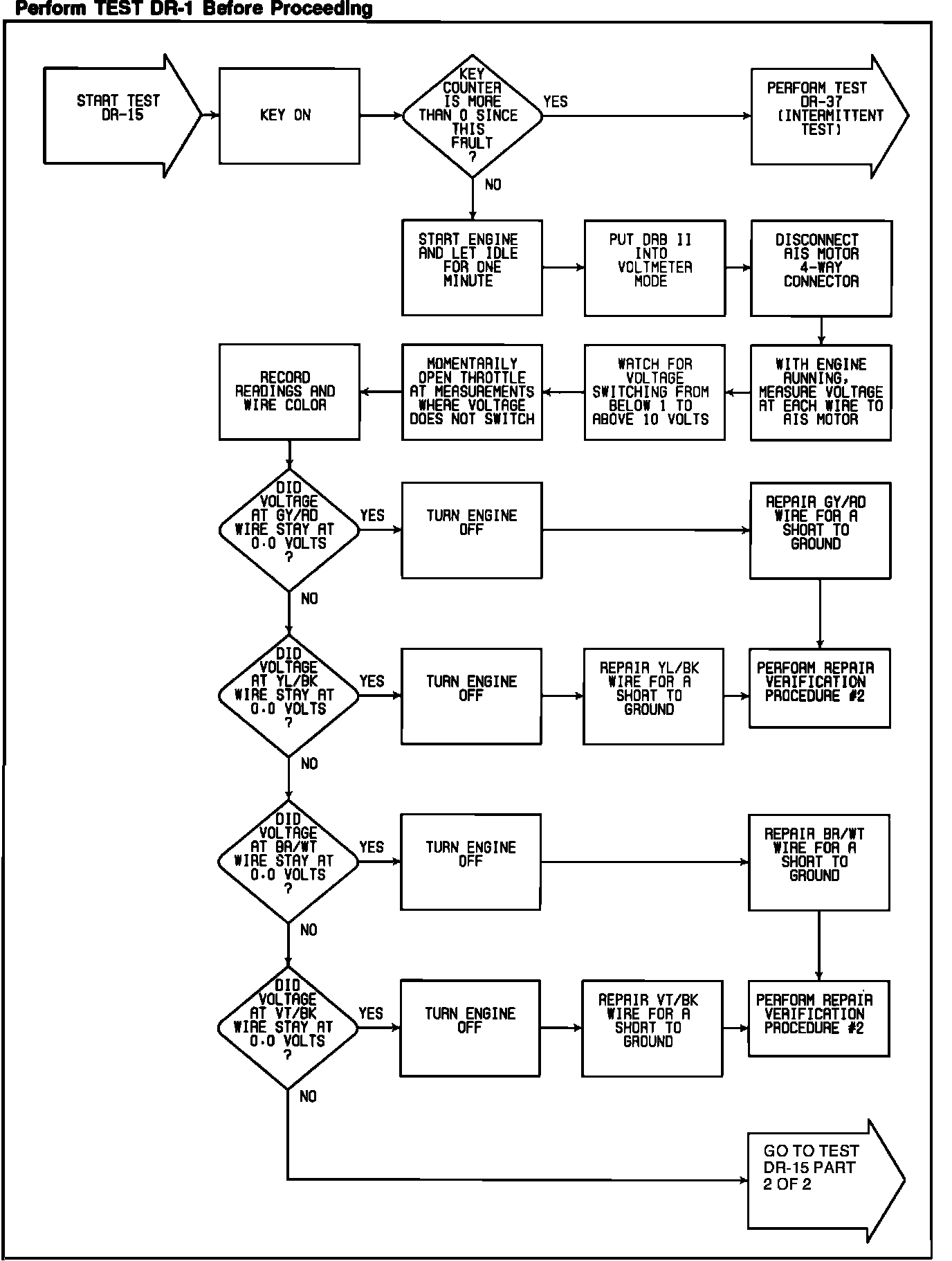

Test DR-15 - Repairning Fault "AIS Motor Circuits":



Test DR-15 - Repairning Fault "AIS Motor Circuits":
