DR-14 Repairing "Inj 2 Control CKT" Fault
>>
Part 1 of 2
Part 1 of 2

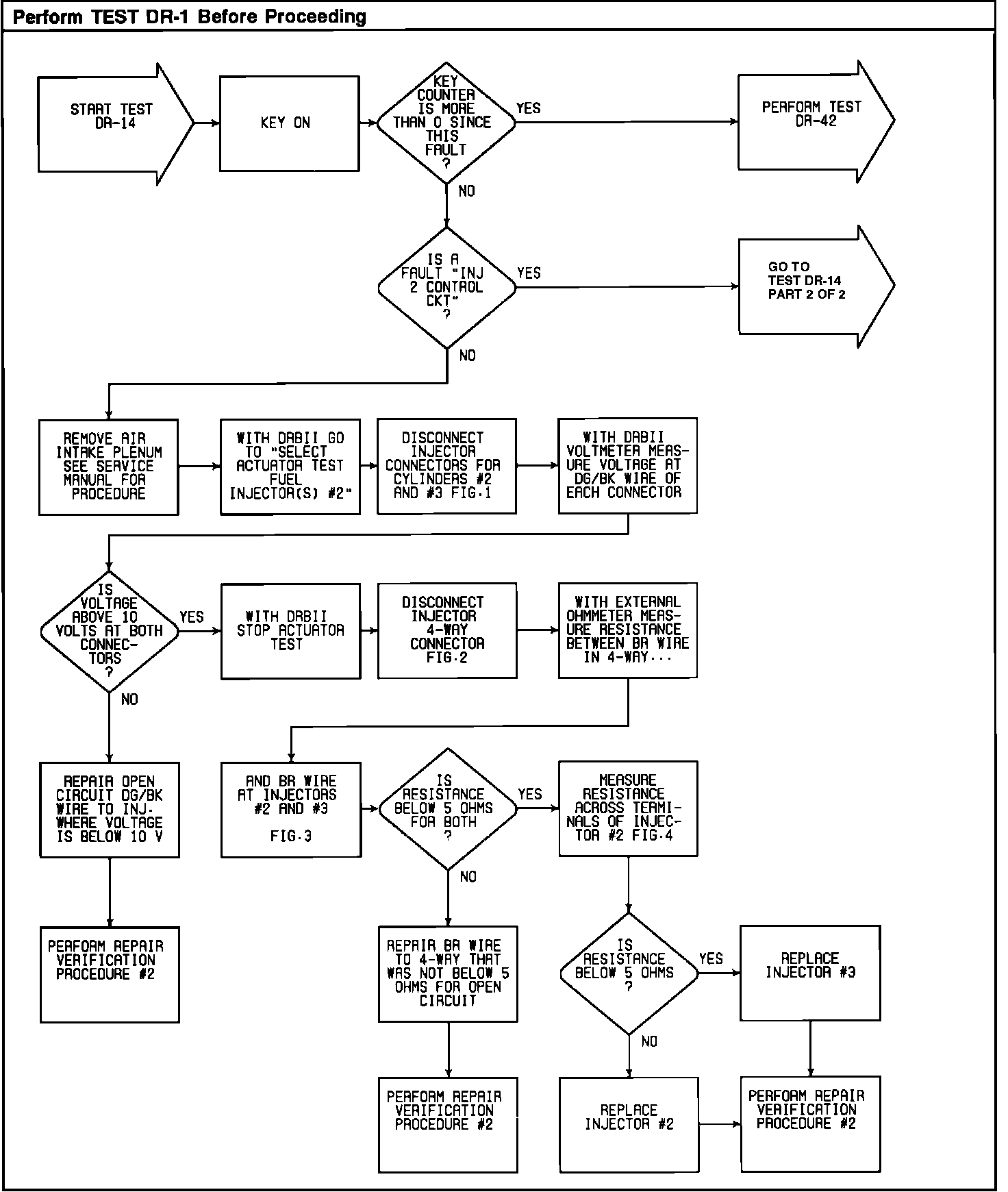

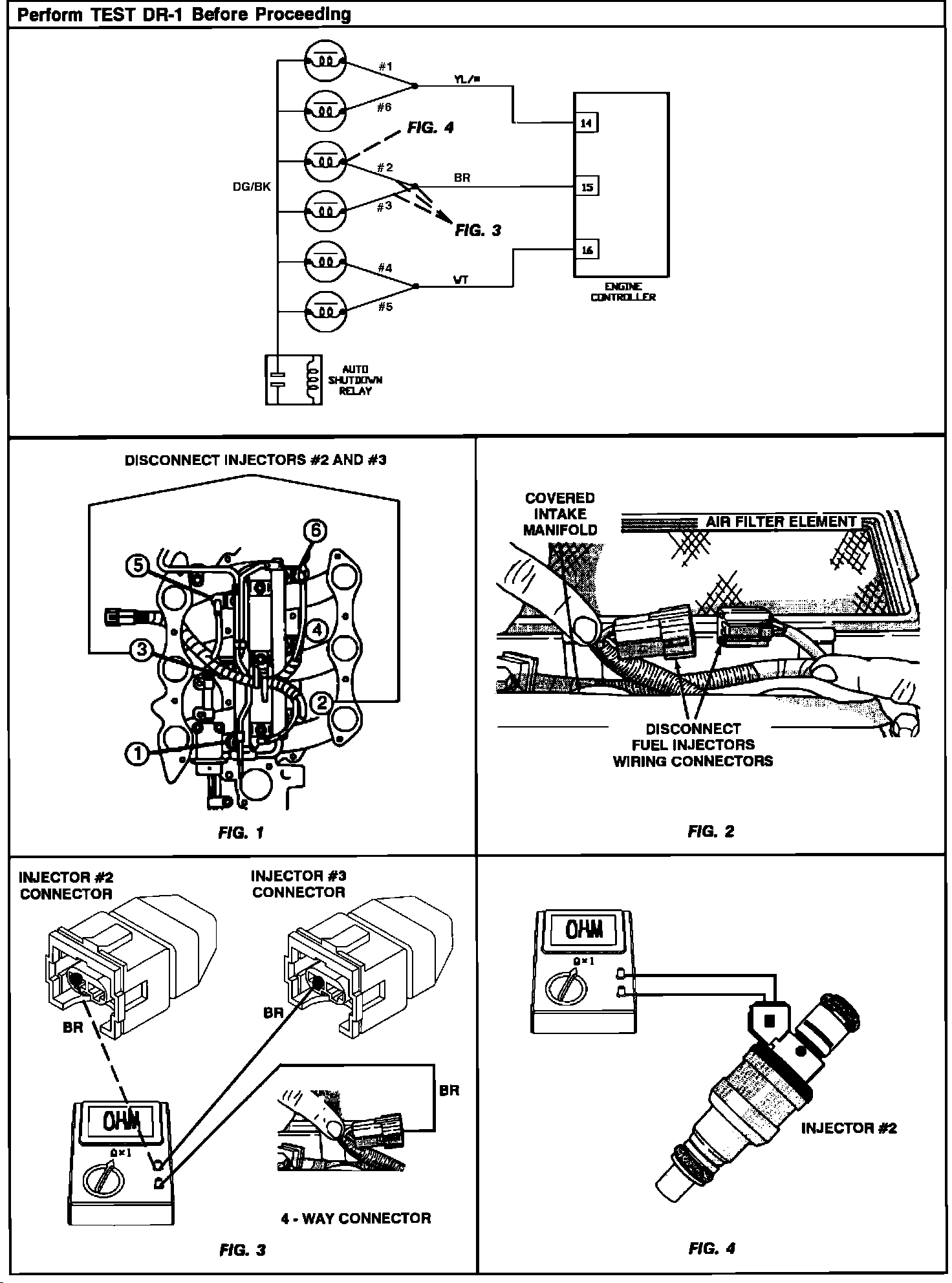

Test DR-14 - Repairing Faults "Injector 2 Control circuit" And "Injector 2 Peak Current":
Test DR-14 - Repairing Faults "Injector 2 Control circuit" And "Injector 2 Peak Current":
