Part 1 of 2

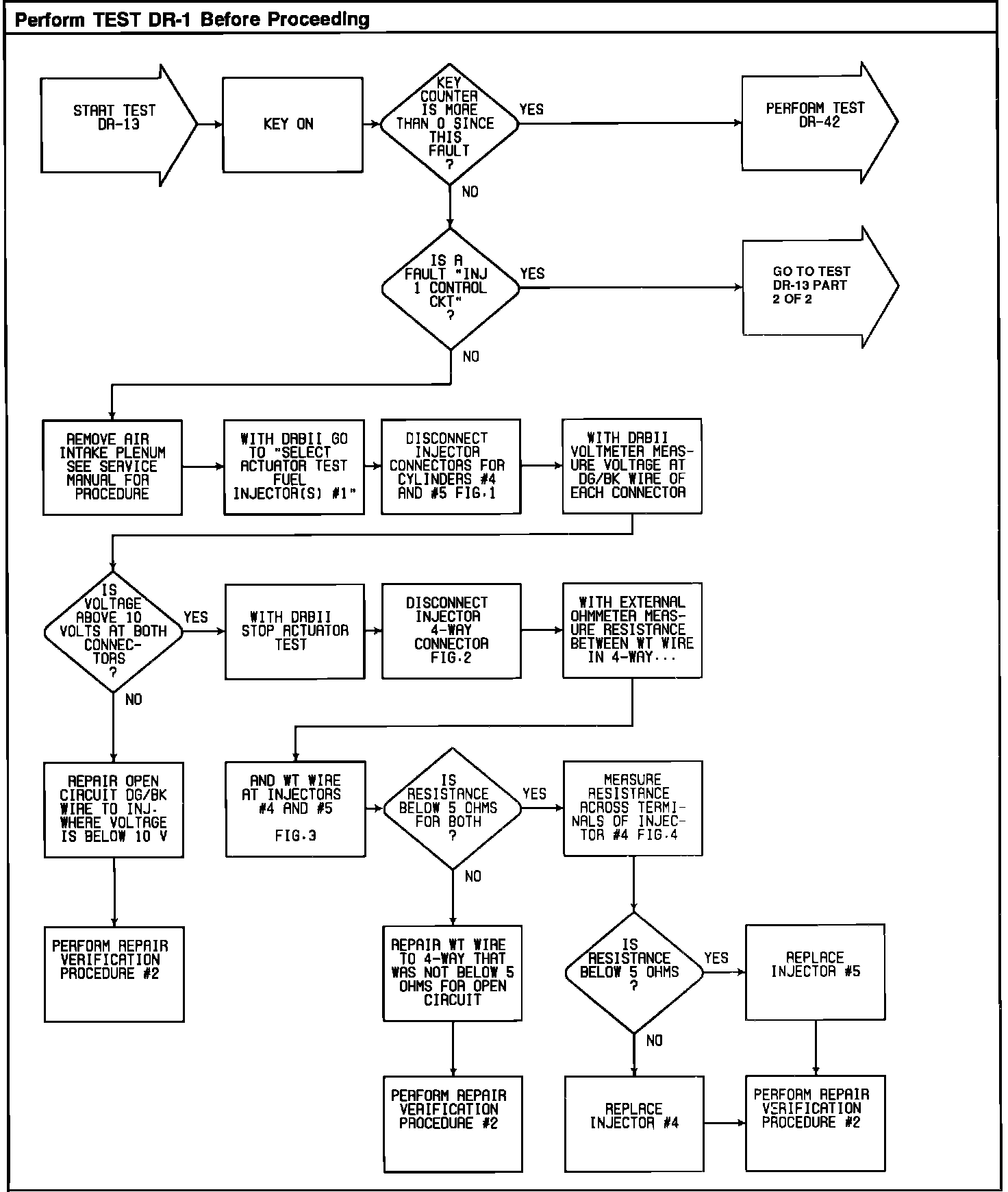

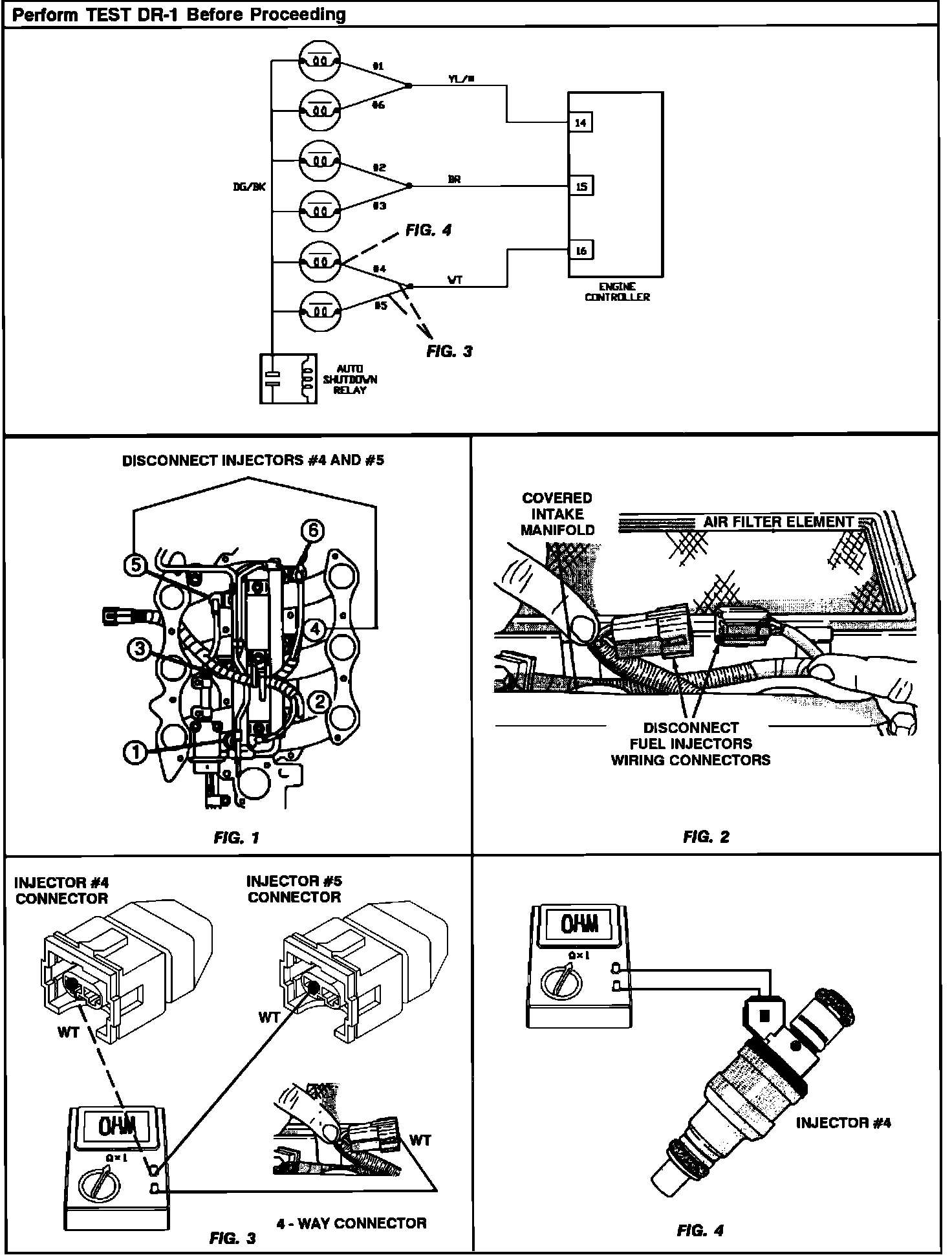

Test DR-13 - Repairing Faults "Injector 1 Control Circuit" And "Injector 1 Peak Current":



Test DR-13 - Repairing Faults "Injector 1 Control Circuit" And "Injector 1 Peak Current":
