DR-11 Repairing "Charge Temp Volt High" Fault
DR-11 Repairing "Charge Temp Volt High" Fault

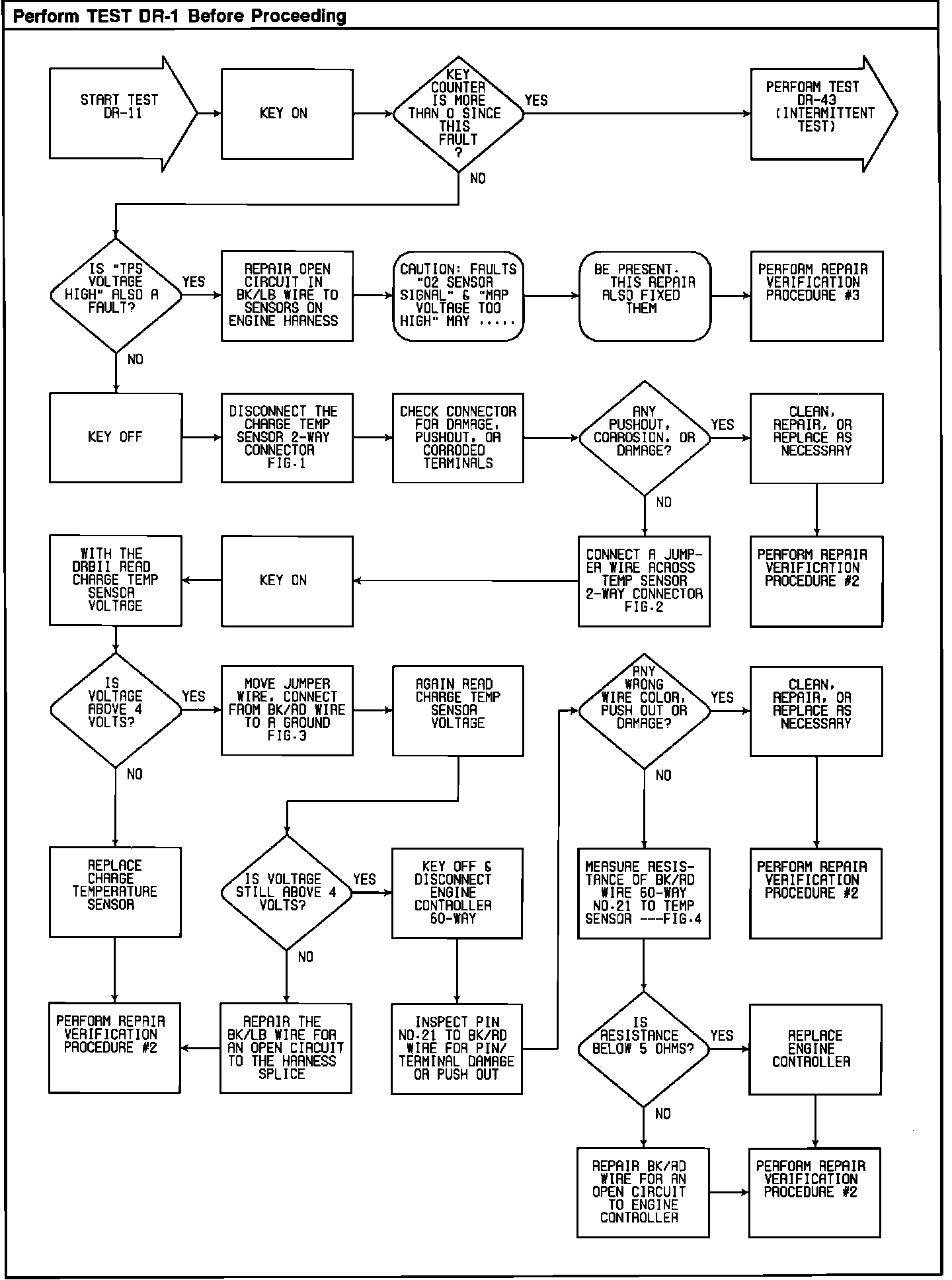

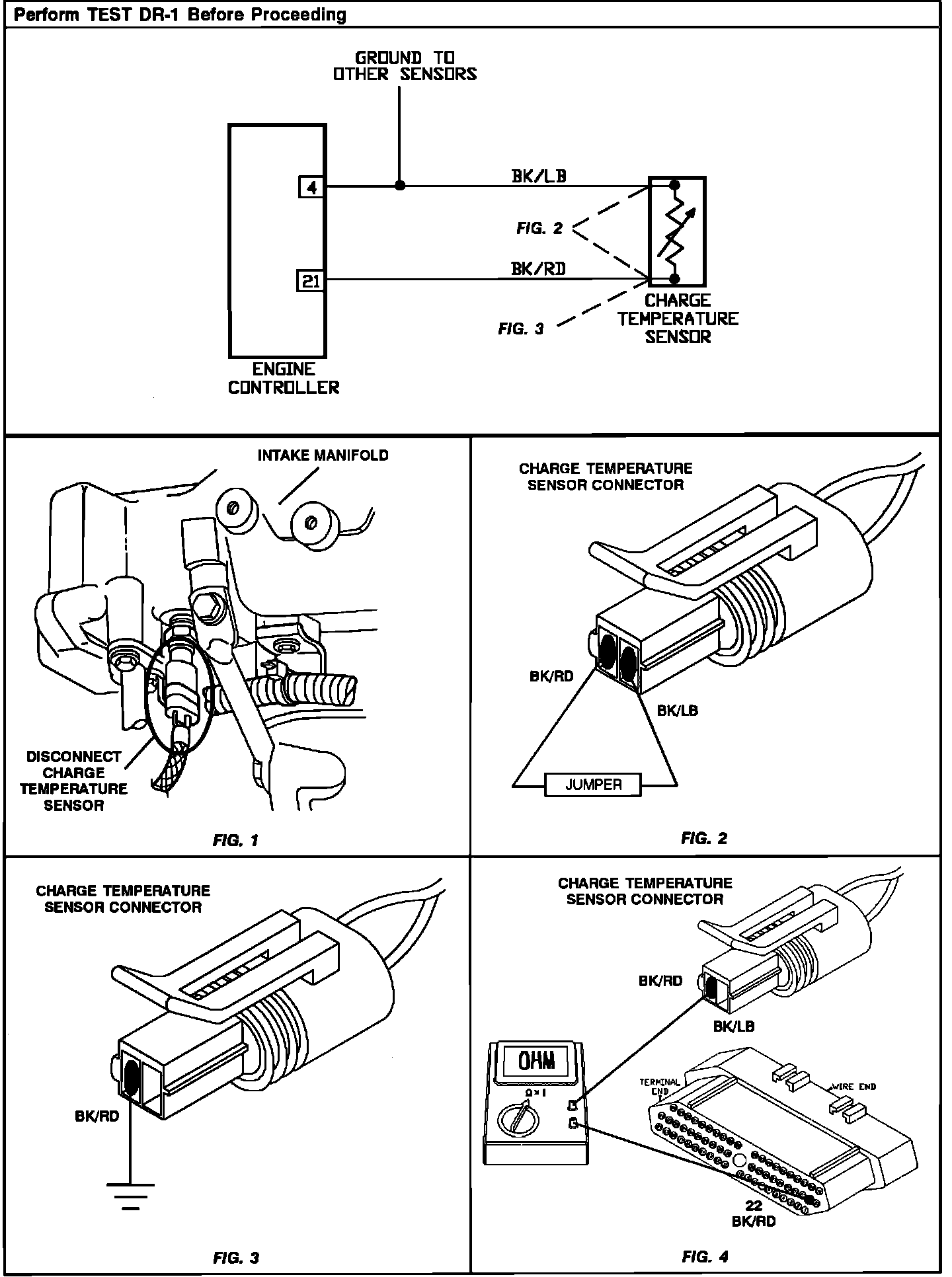

Test DR-11 - Repairing Fault "Charge Temperature Voltage High":
Test DR-11 - Repairing Fault "Charge Temperature Voltage High":
