DR-10 Repairing "Charge Temp Volt Low" Fault
DR-10 Repairing "Charge Temp Volt Low" Fault

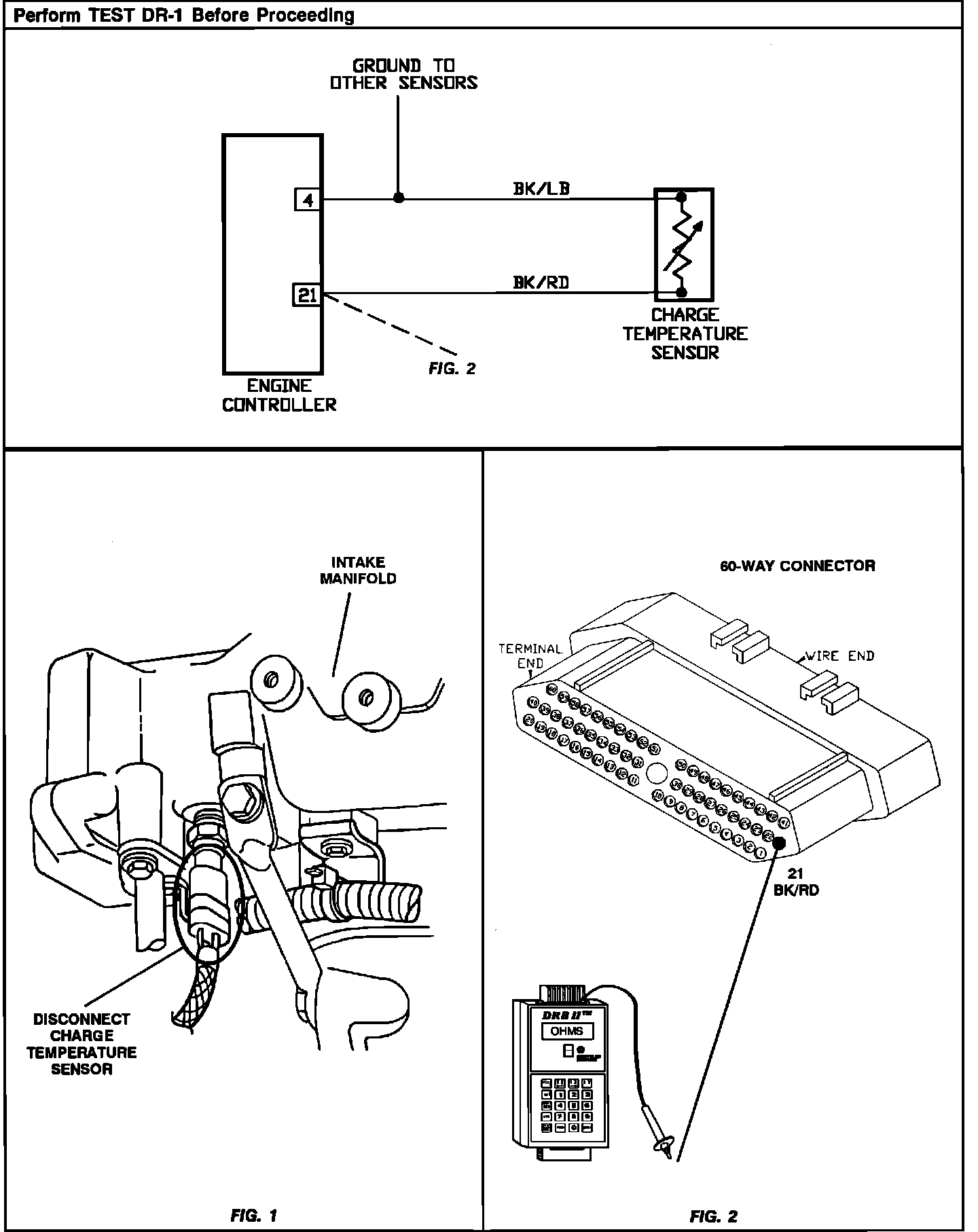

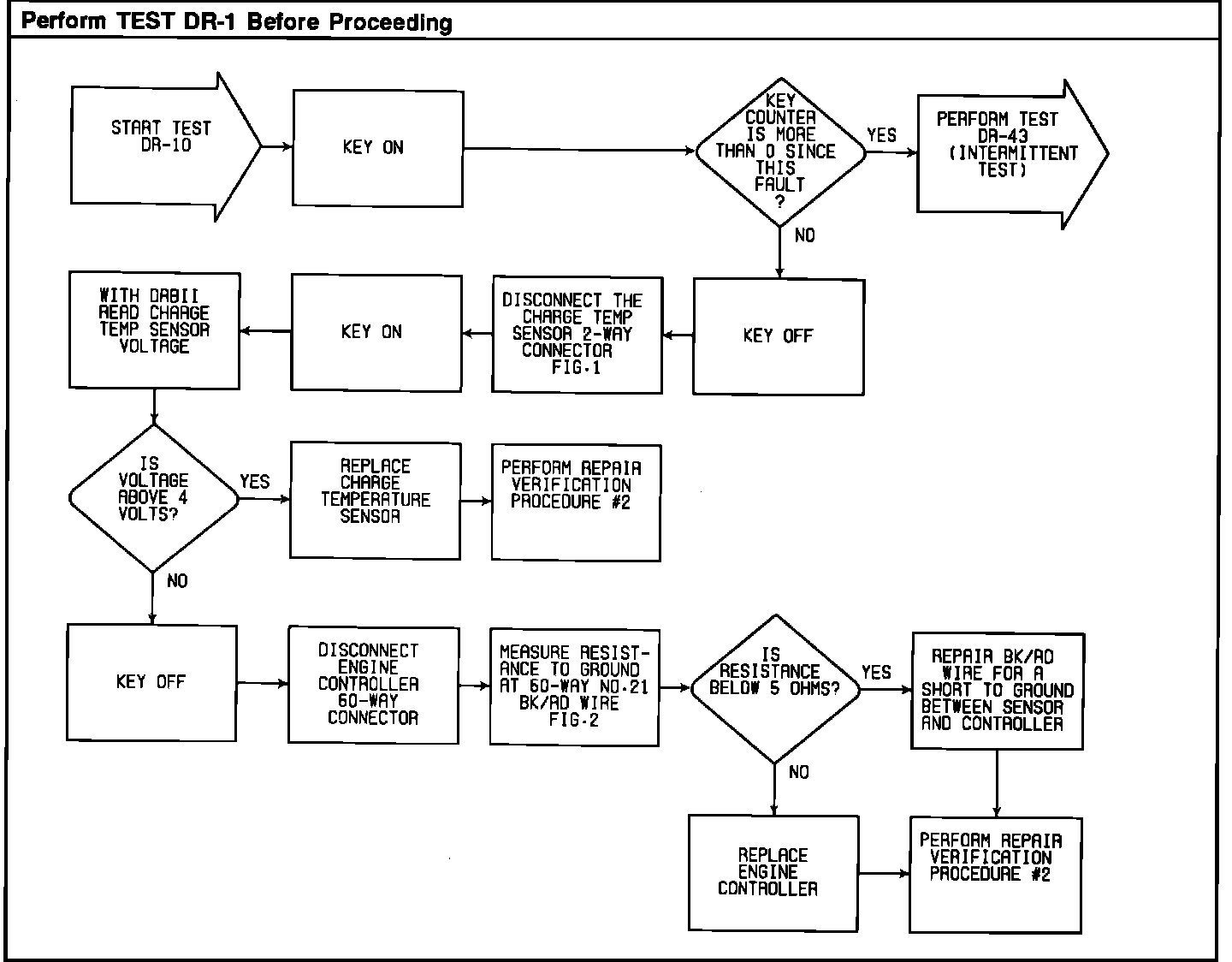

Test DR-10 - Repairing Fault "Charge Temperature Voltage Low":
Test DR-10 - Repairing Fault "Charge Temperature Voltage Low":
