Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Charging System (CH) Tests >> CH-5 Checking For Intermittent Fault Codes

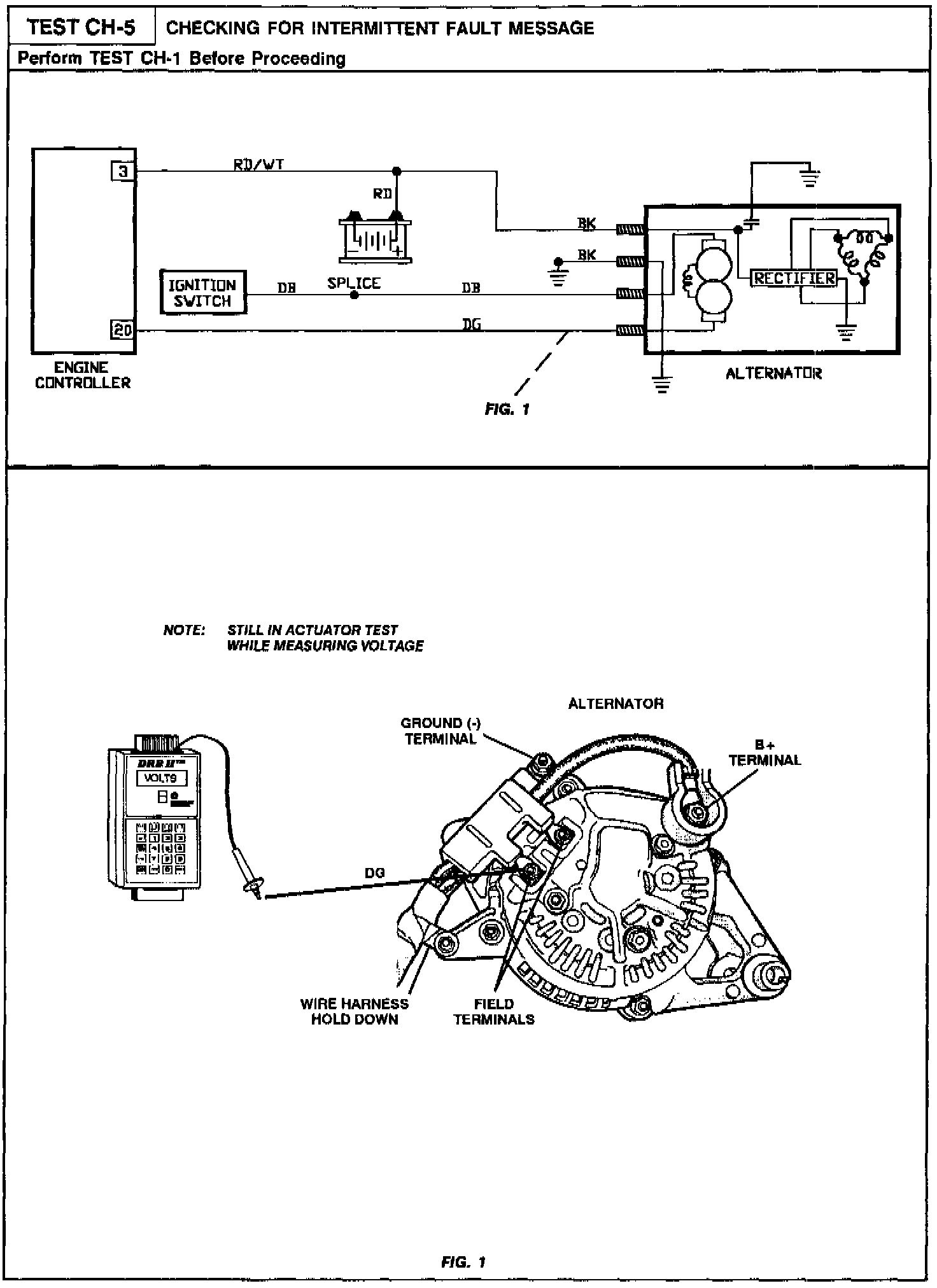

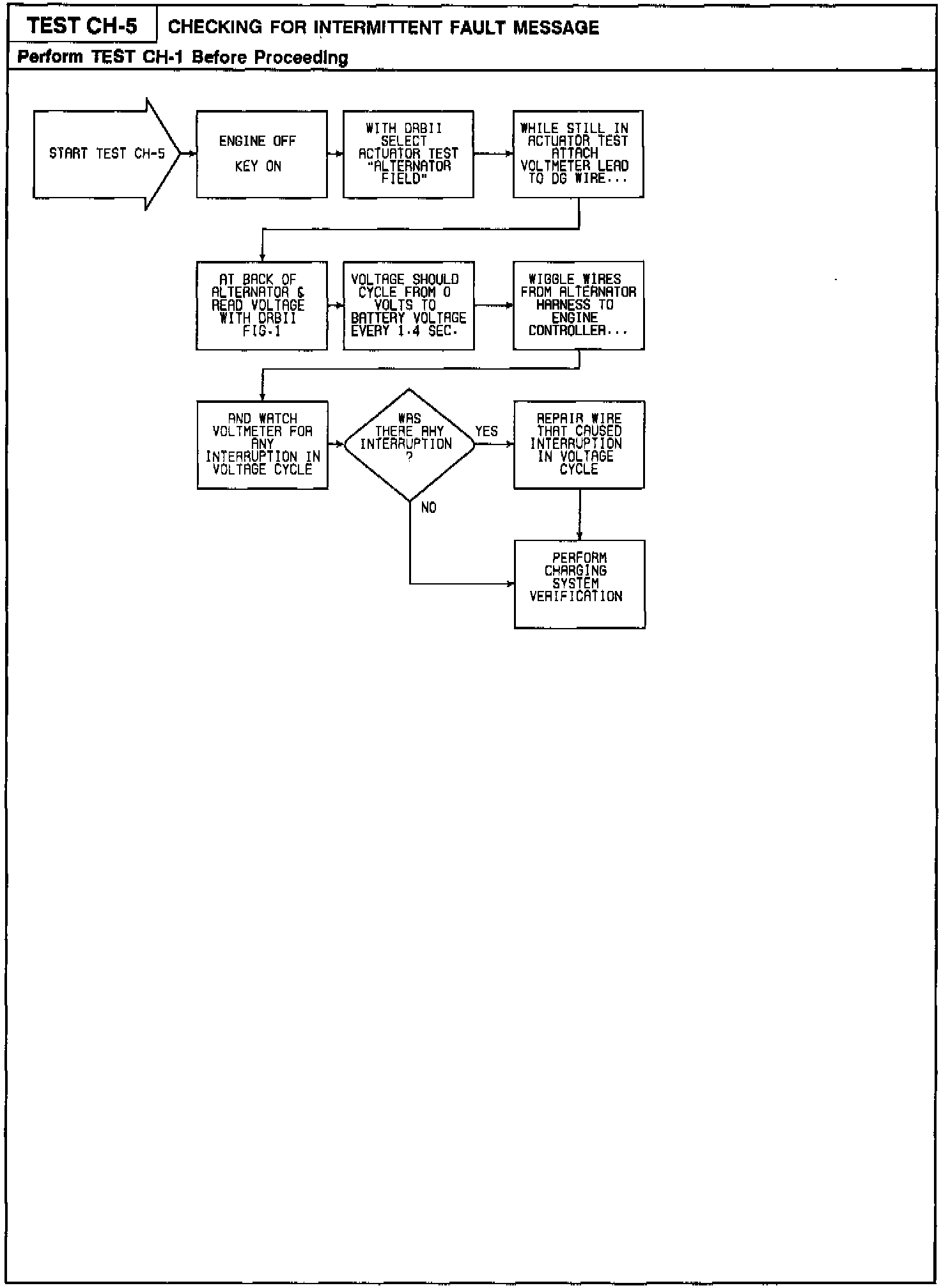

CH-5 Checking For Intermittent Fault Codes
