Home
>>
Chrysler
>>
1990
>>
Imperial V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
CCD Bus System
>>

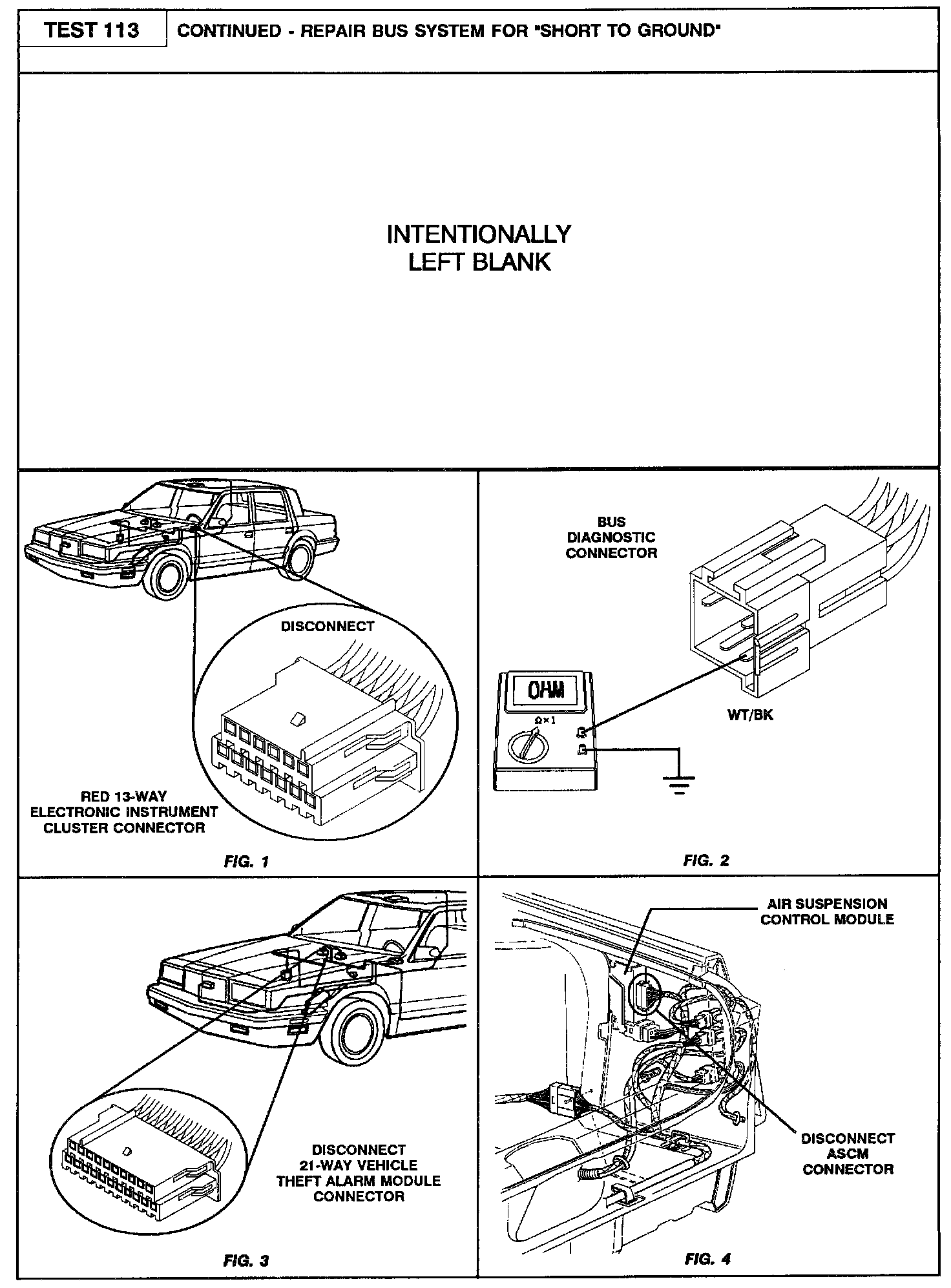

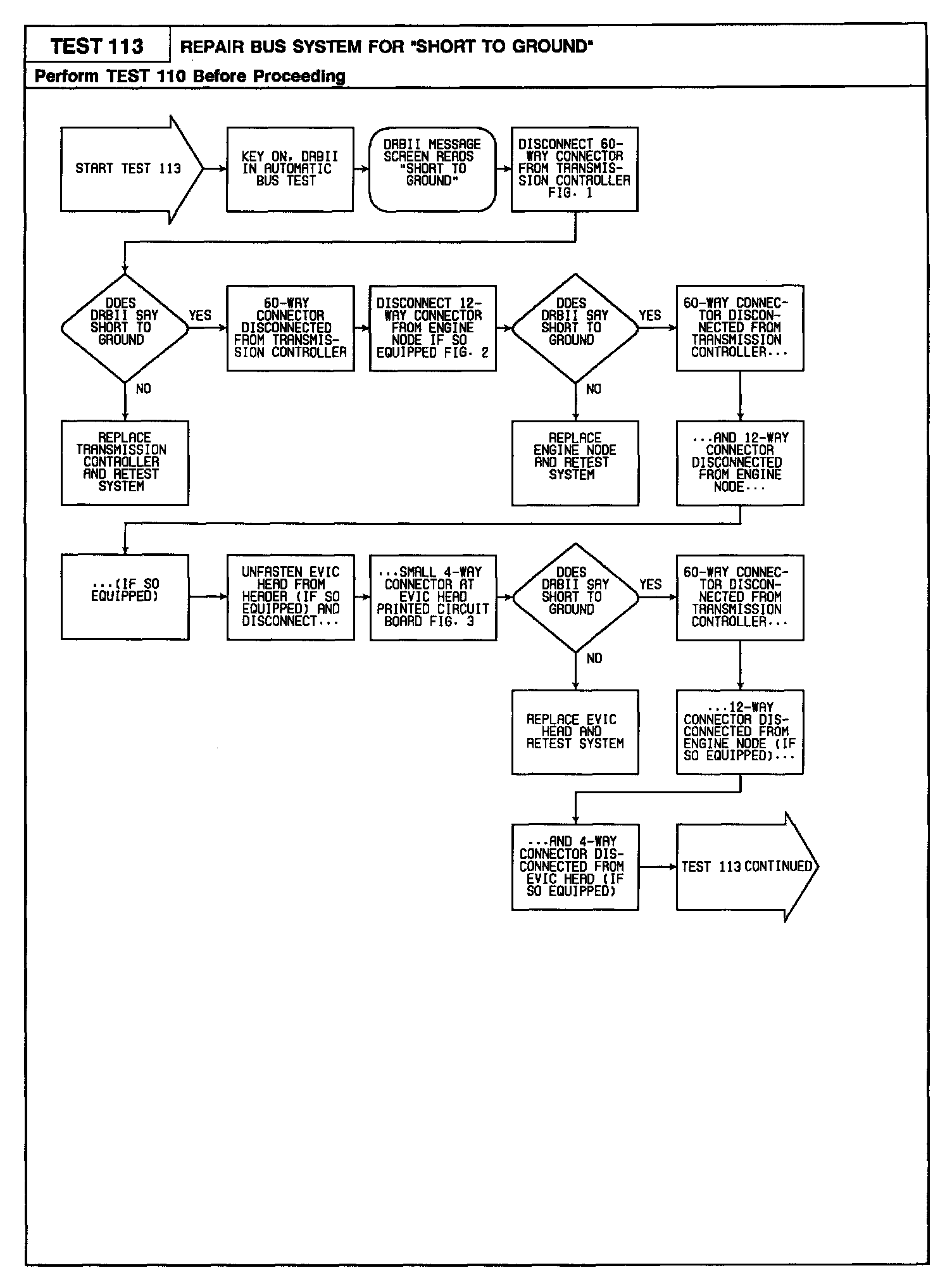

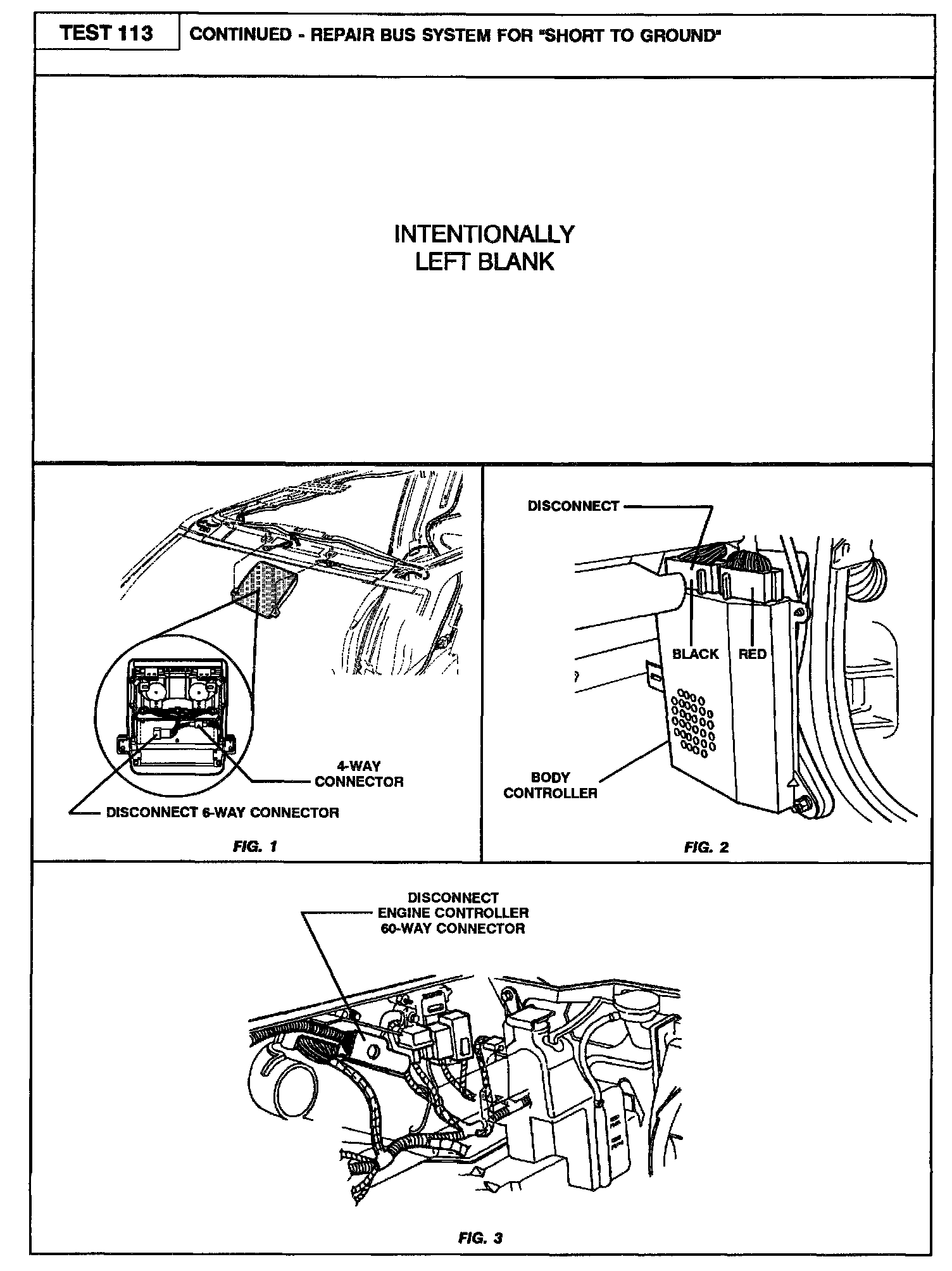

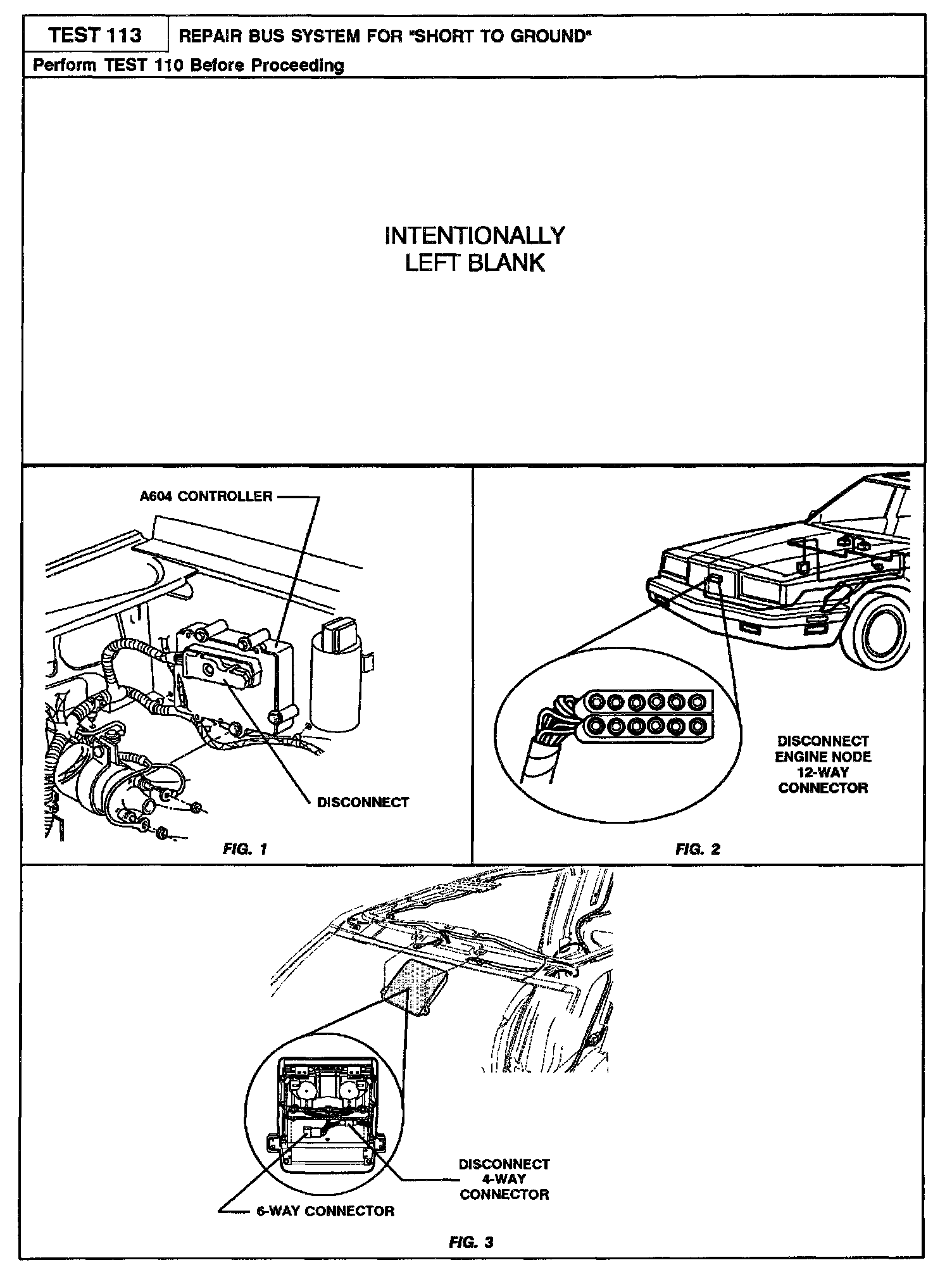

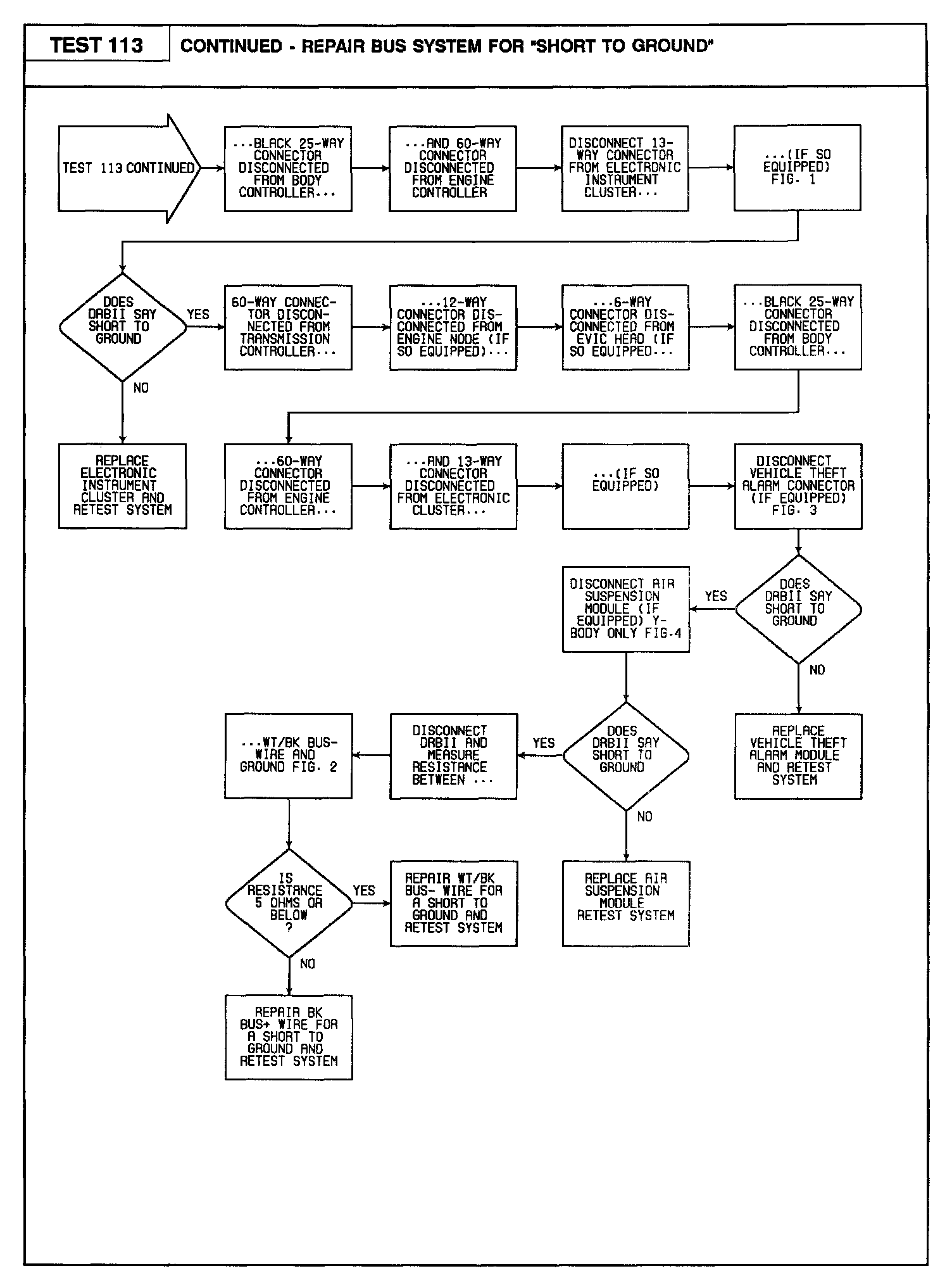

113 Repair Bus System For "Short to Ground"
113 Repair Bus System For "Short to Ground"
