Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> CCD Bus System >> 111 Repair Bus System For "Short to Battery"

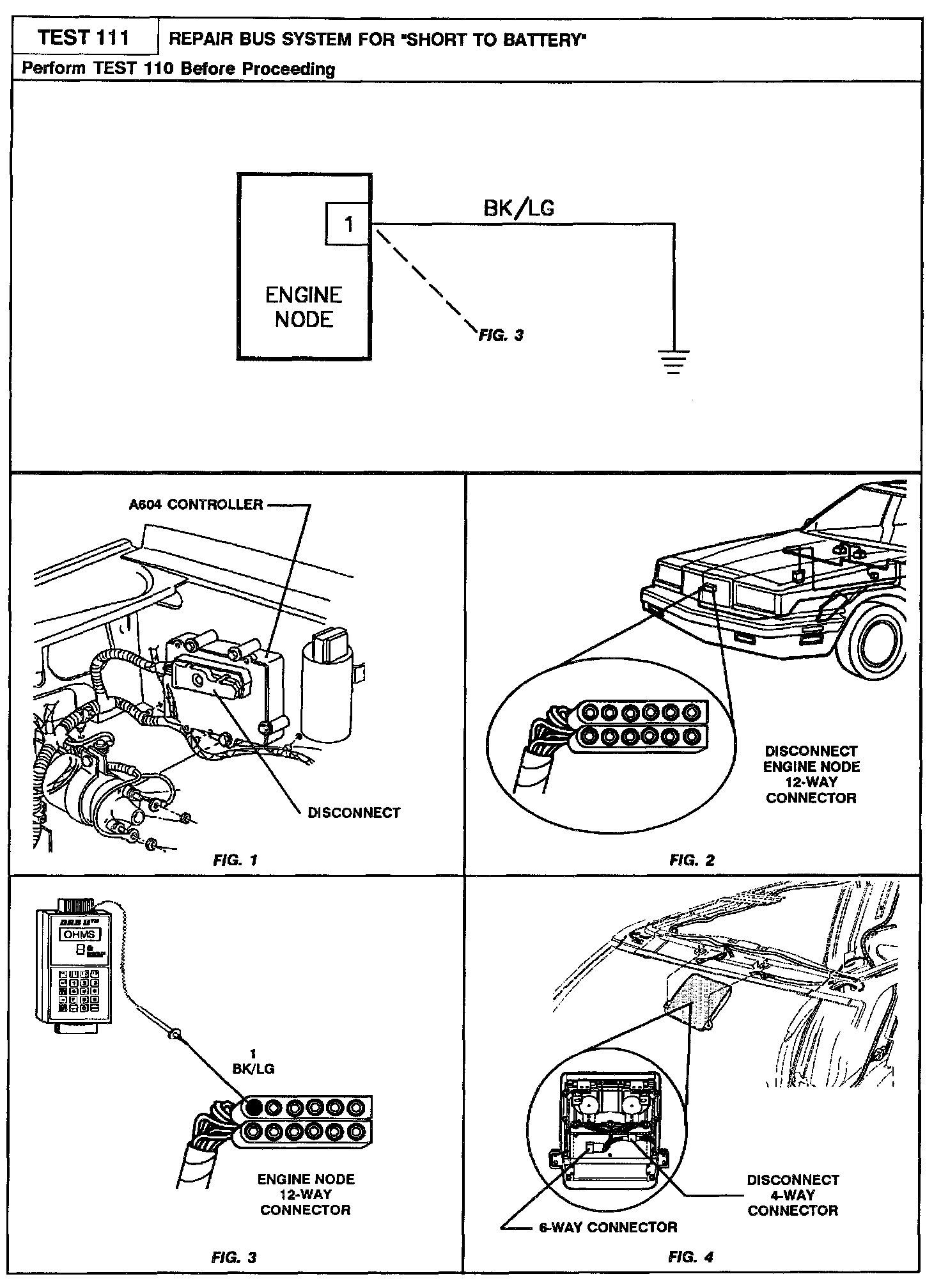

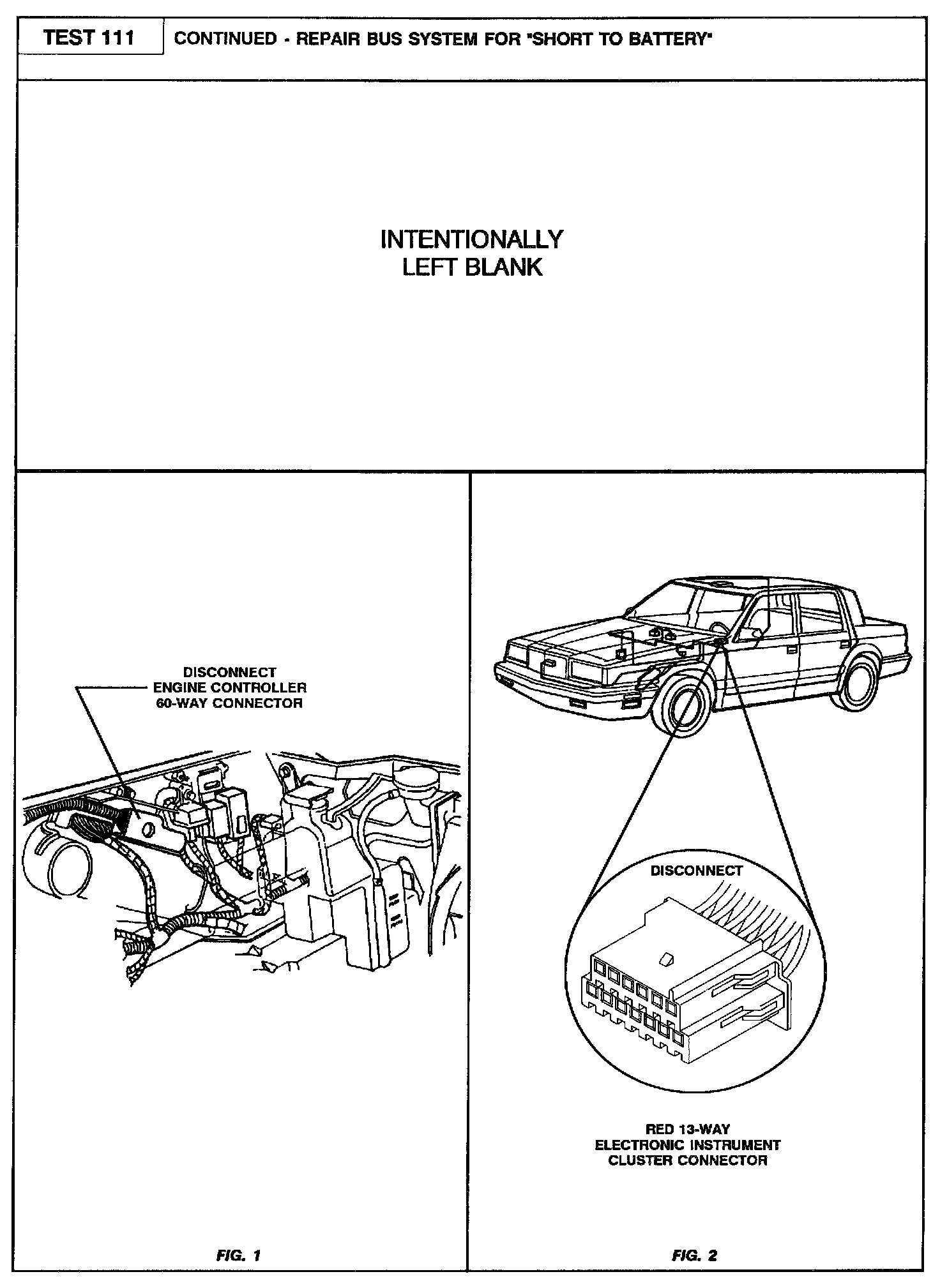

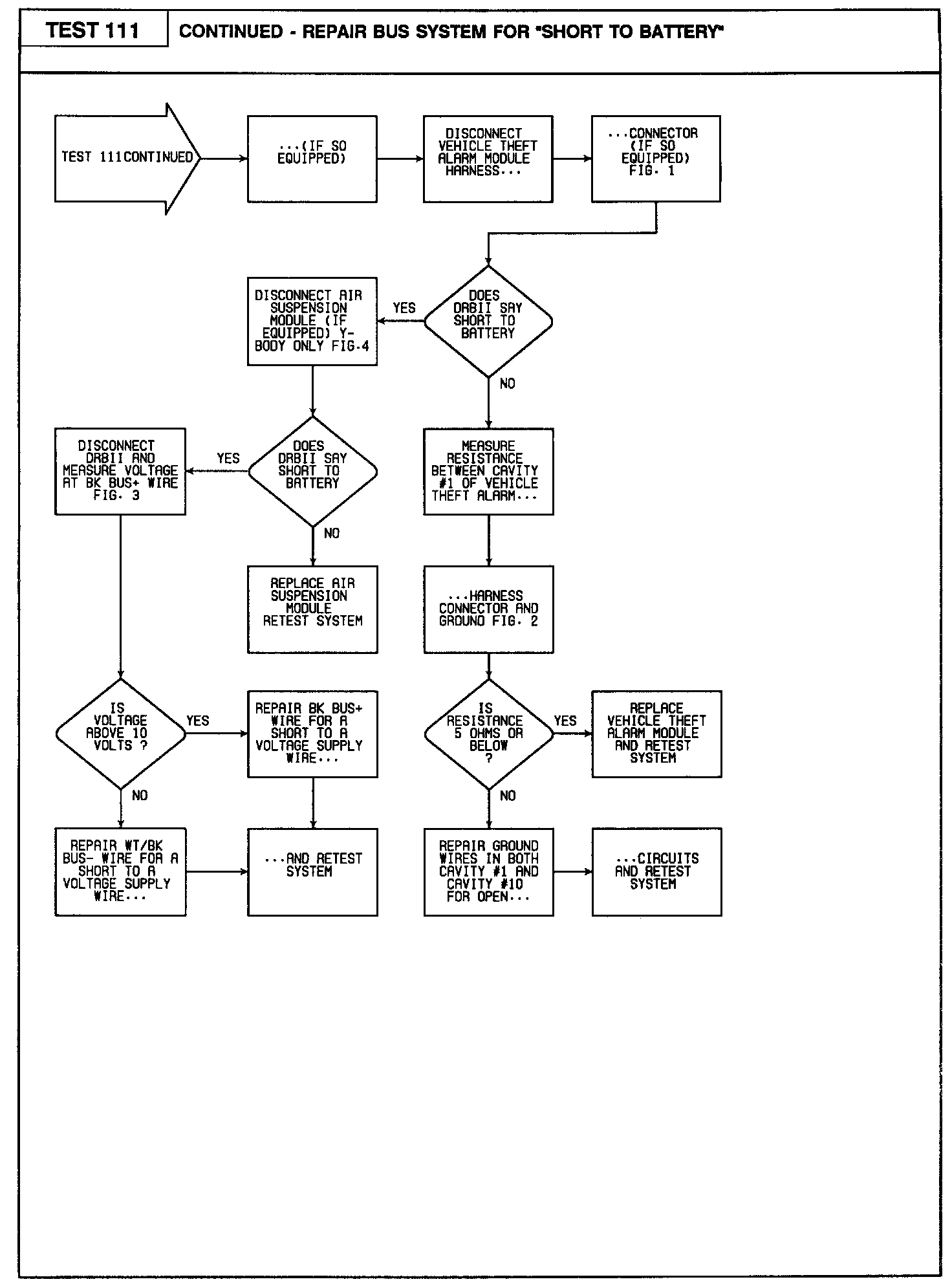

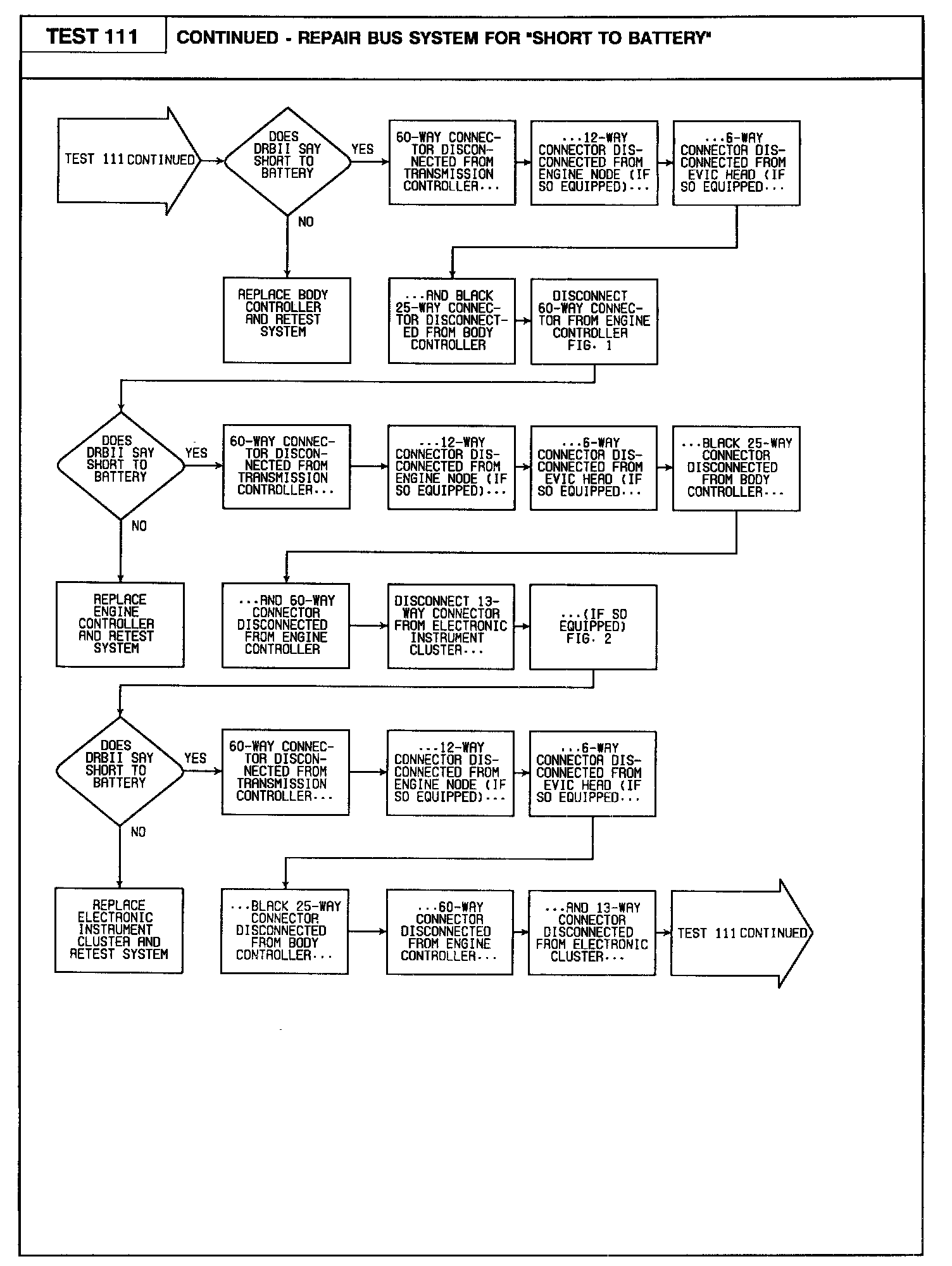

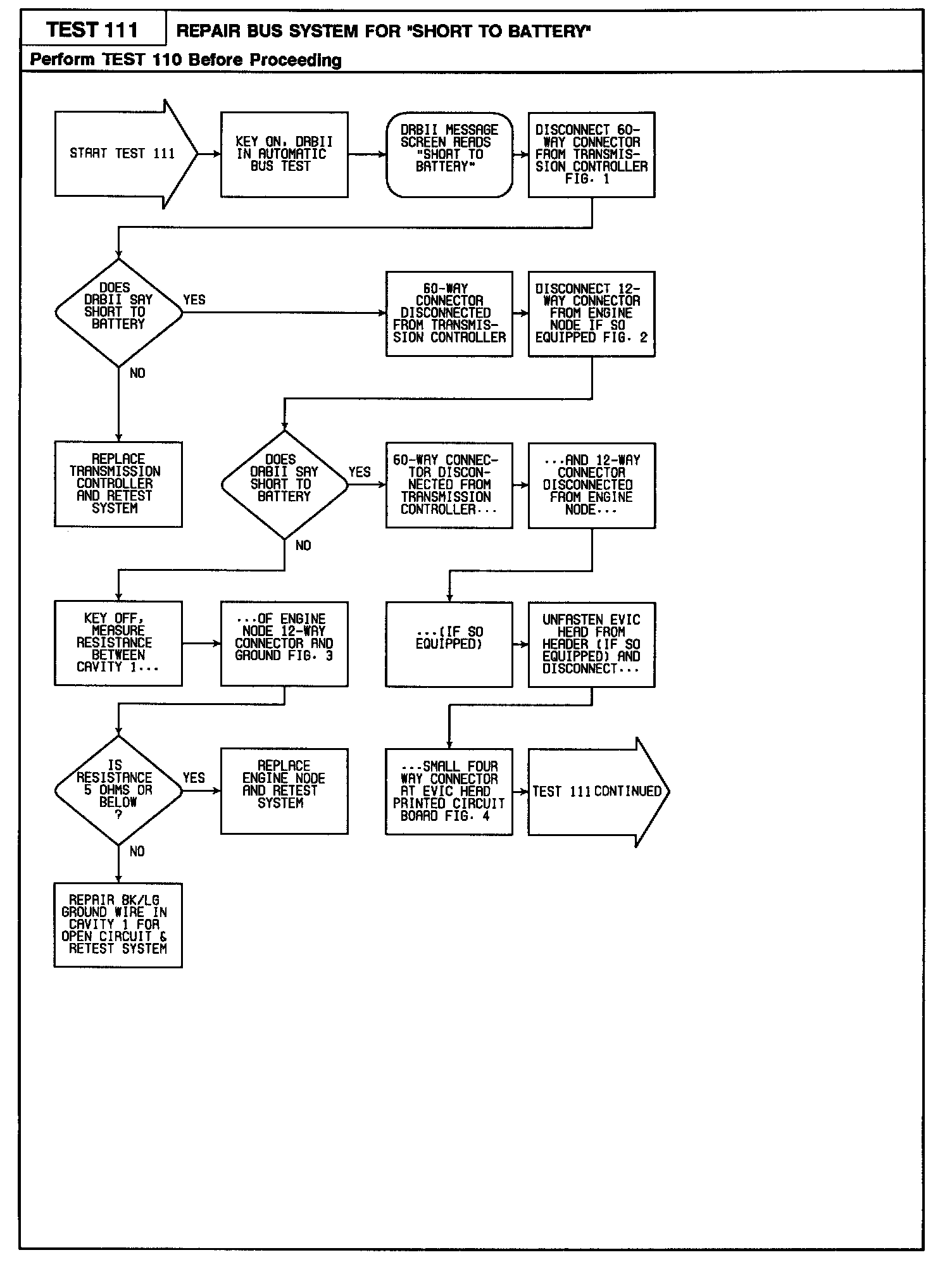

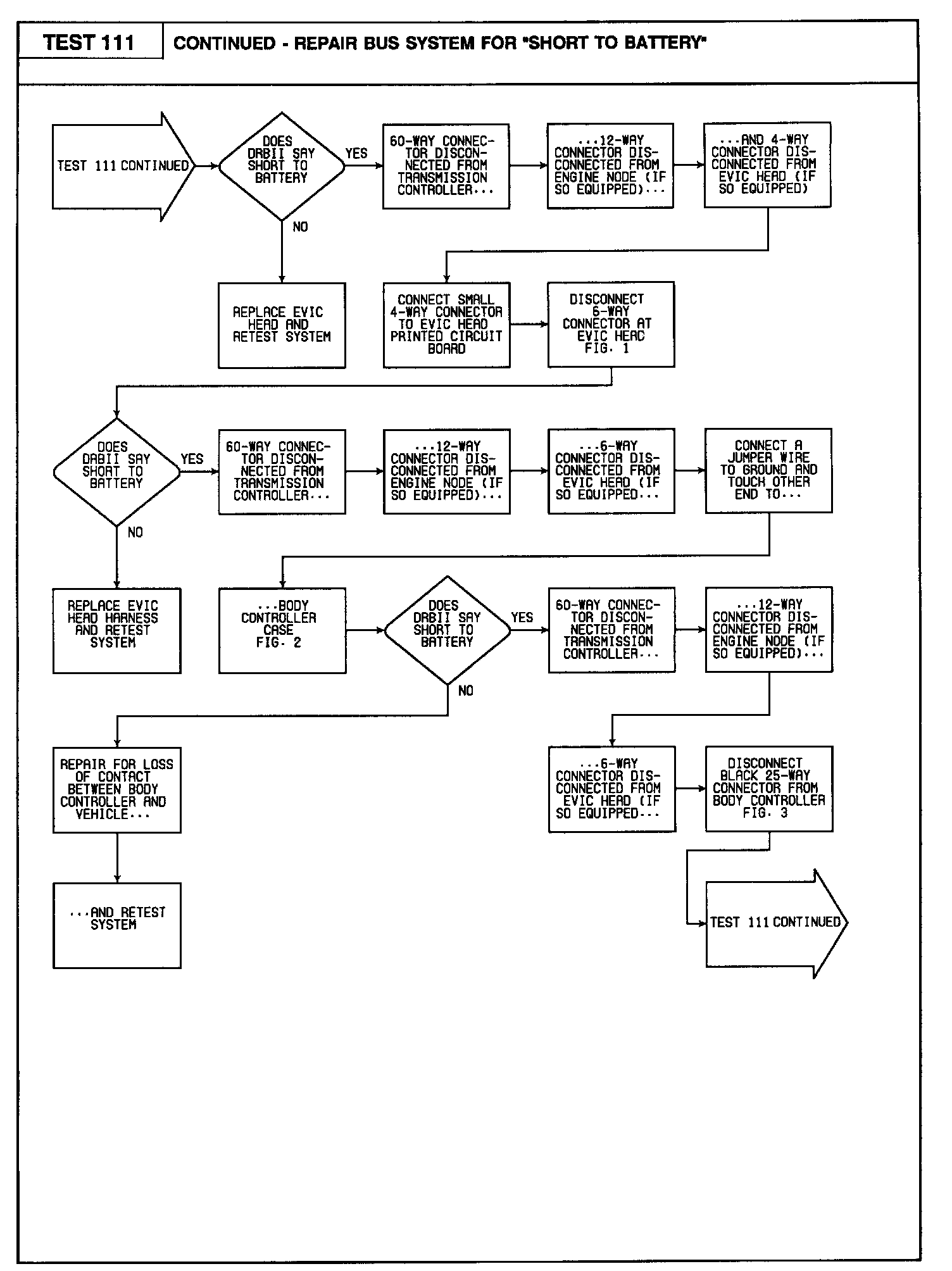

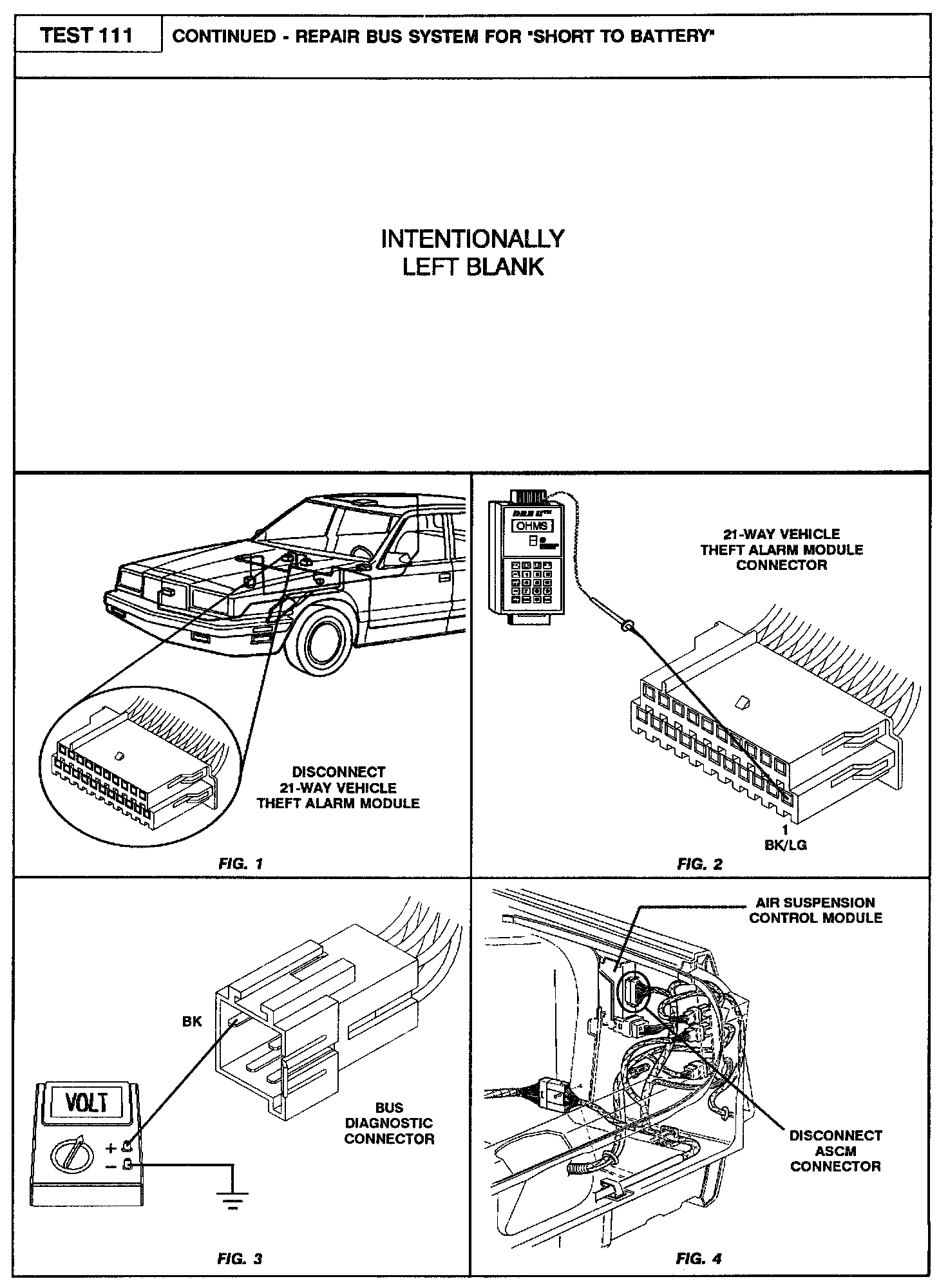

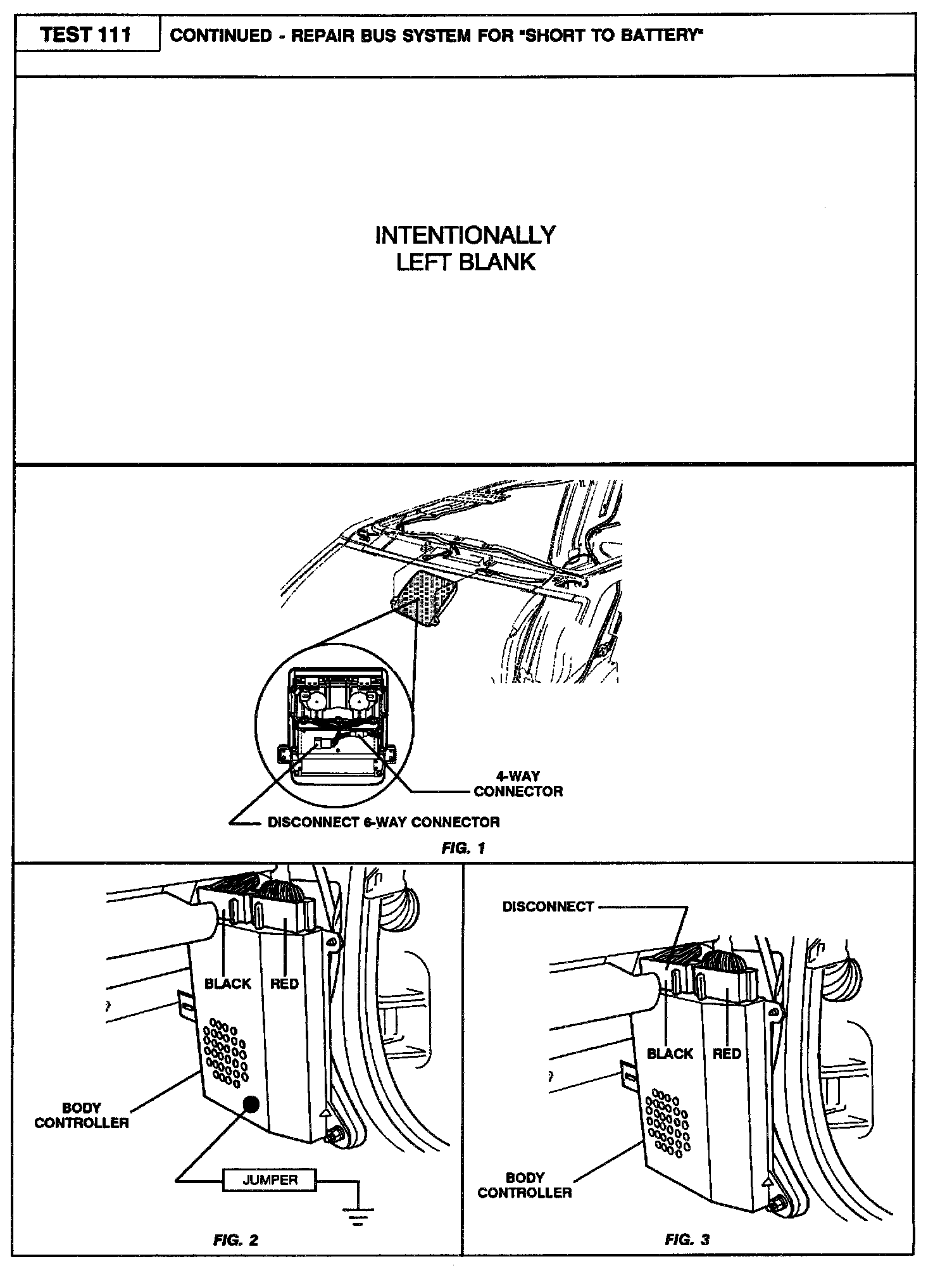

111 Repair Bus System For "Short to Battery"
