Imperial V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Body Control Module
>>
Vehicle Theft Alarm
>>

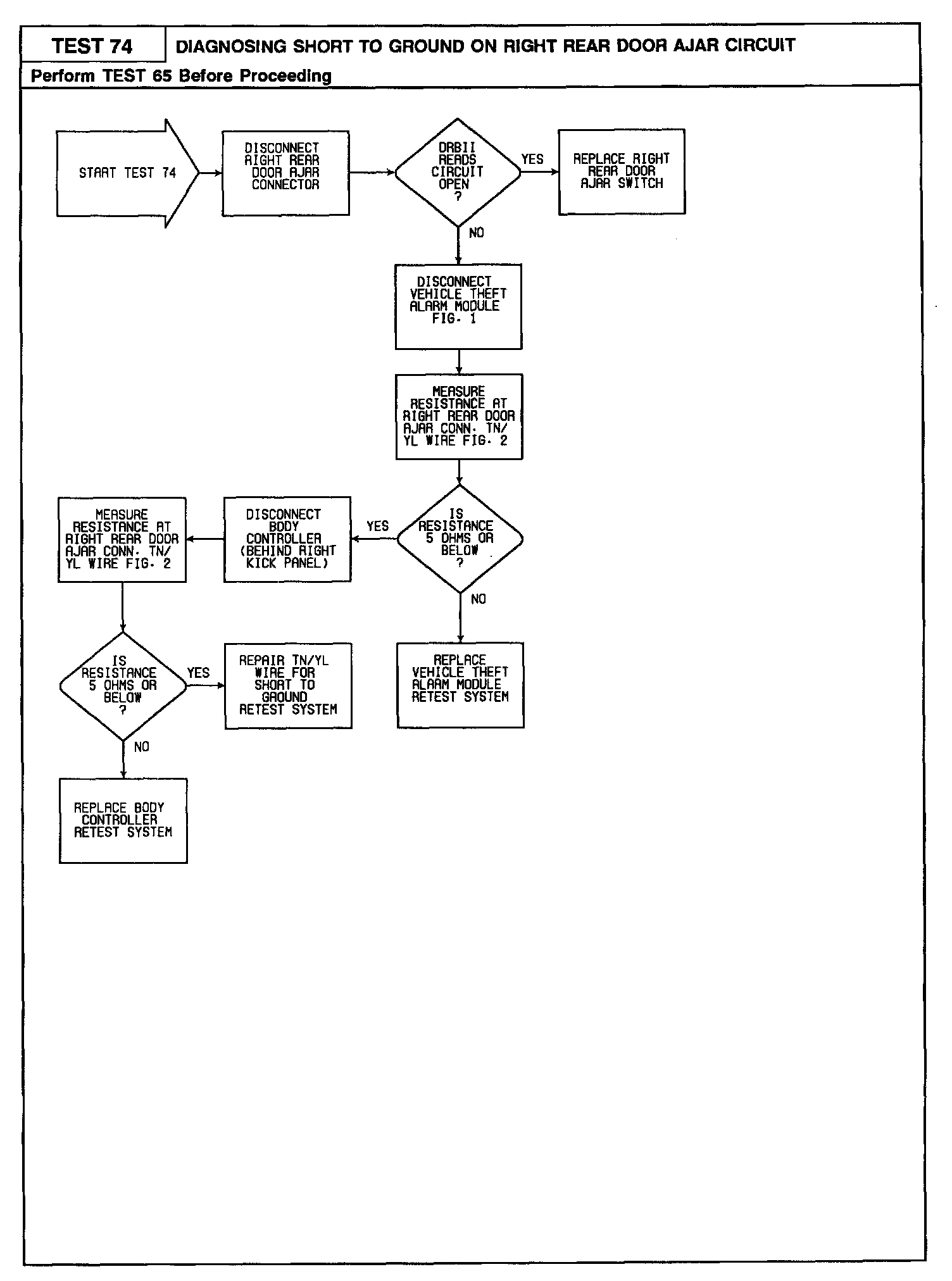

74 Diagnosing Short to Grnd on Rt Rear Door Ajar Circuit
74 Diagnosing Short to Grnd on Rt Rear Door Ajar Circuit
